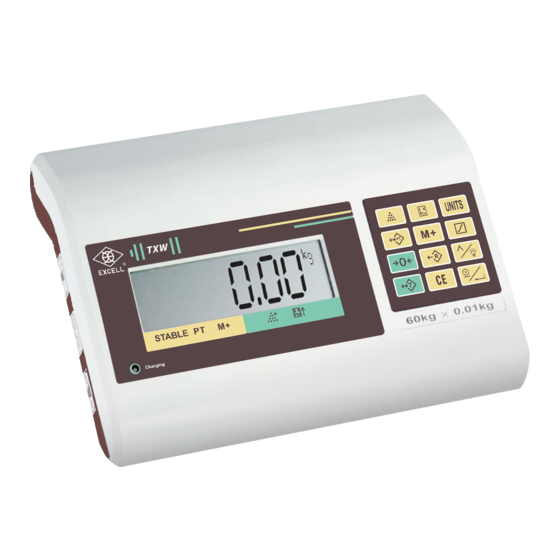

X Series Weighing Scale
User Manual
© EXCELL PRECISION CO., LTD. 2022. All rights reserved worldwide.
The information contained herein is the property of EXCELL PRECISION CO., LTD. and is
supplied without liability for errors or omissions. No part may be reproduced or used except as
authorized by contract or other written permission. The copyright and the foregoing restriction
on reproduction and use extend to all media in which the information may be embodied.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X Series and is the answer not in the manual?

Questions and answers

Related Manuals for Excell X Series

Summary of Contents for Excell X Series

  • Page 1 © EXCELL PRECISION CO., LTD. 2022. All rights reserved worldwide. The information contained herein is the property of EXCELL PRECISION CO., LTD. and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission.

  • Page 2: Table Of Contents

    EXCELL PRECISION CO., LTD. Table of Contents PREPARING TO USE THE SCALE ....................2 PRECAUTIONS FOR USE ......................2 CHAPTER 1 INTRODUCTION ..................... 4 1-1 P ....................4 RODUCTION NTRODUCTION 1-2 D ......................4 ISPLAY ESCRIPTION 1-3 K ..................5...

  • Page 3: Preparing To Use The Scale

    EXCELL PRECISION CO., LTD. Thank for your purchasing of our EXCELL Weighing Scale. To guide you to use our product correctly, please read this User Manual carefully to extend the life of machine and to avoid error. Preparing to Use the Scale 1.
  • Page 4 EXCELL PRECISION CO., LTD. Safety Instructions for Lithium Batteries 1. Please pay attention to the storage temperature of the product. Do not place it in a high temperature environment. The ambient temperature should be less than 50C. 2. After installing the battery, if no display when power is turned on, please check whether the battery polarity is reversed.

  • Page 5: Chapter 1 Introduction

    EXCELL PRECISION CO., LTD. Chapter 1 Introduction 1-1 Production Introduction 1. High performance A/D converter  0.3 uv/D high sensitivity  zero point adjustable range -2mV~ +5mV Sampling speed 10 times/second use range -4mV ~ +30mV   load cell stimulate power source 5V DC ±2% 100mA ...

  • Page 6: Keypad Functions Description

    EXCELL PRECISION CO., LTD. 1-3 Keypad Functions Description 5 key (4 key model does not have UNITS key) 10 key Hidden backlight key at upper left corner 12 key Other Key description 4/5 key 10 key 12 key variation Net/Gross key...

  • Page 7: Power Description

    EXCELL PRECISION CO., LTD. 1-4 Power Description Battery 18650 3.7V lithium battery Power Plugged in 100~240V AC Power consumption varies depending No backlight 75% backlight (factory default) ≈ 24 ≈ 28 0~100% backlight used (mA) Scale has a built-in power saving function to extend usage time. Table below shows the battery capacity and estimated usage time.

  • Page 8: Chapter 2 General Operation Description

    EXCELL PRECISION CO., LTD. Chapter 2 General Operation Description 2-1 Backlight Function Press key to loop select the display backlight mode: Auto 1~4, bL. on, bL. oFF. Auto 1~4  “Auto Backlight” mode. When the weight is over 10d or any key is pressed, the backlight will be switched on.

  • Page 9: Net/Gross Function (Only Available In 4/5 Key Models)

    EXCELL PRECISION CO., LTD.  Recall pretare value key  the display shows pretare value Press then  In Tare mode, the Preset tare function is disabled.  The indicators with two weighing ranges can NOT pre-set the tare value larger than the first weighing range.
  • Page 10 EXCELL PRECISION CO., LTD. After “preset low limit” procedures is completed and the display shows  . This means that the “preset then press key again, the display shows single point” procedure is completed. NOTE Setting for the status that LCD is on and the beeper beep: 0 = when stable, the beeper beeps and LCD is on.

  • Page 11: Totalizing (Not Available In 4/5 Key Models)

    EXCELL PRECISION CO., LTD. key again  Clear “High limit value” and “Beeper value” value”. Then press key 6 times continuously  Clear all values. Press key then press 2-2-6 Totalizing (not available in 4/5 key models) 1. Weight Totalizing Place goods on the platter, after stable and press key to save the weight value.

  • Page 12: Check Weighing

    EXCELL PRECISION CO., LTD. 2-3-2 Check Weighing Refer to the operation of check weighing in weighing function. 2-3-3 Totalizing Refer to the operation of totalizing in weighing function. Chapter 3 General Function Setting  Switch on the scale. While the scale is counting down to zero, press and hold key until the display shows the software version number 02036.

  • Page 13: F4 Check Weighing Configurations

    EXCELL PRECISION CO., LTD. 3-1 F4 Check Weighing Configurations  If hold mode ( ) is set, accessing to F4 is denied. Press key to select F4 Press Press key for 5 times to clear HI, OK, LO values Preset “LO value”...

  • Page 14: F5 Rs-232 Output Setting (Option)

    EXCELL PRECISION CO., LTD. 3-2 F5 RS-232 Output Setting (Option)  Make J1、J3 on RS232 short circuit, when connecting to computer. key to select F5. Press ：use Transmission mode key to select r n P 0 ~ r n P 14 and press...
  • Page 15 EXCELL PRECISION CO., LTD. RS-232 Data Format Command mode (r n P 0) Command Function Return message definition T <CR> <LF> Clear tare N P <CR> <LF> already pre-tared C T <CR> <LF> successful T <CR> <LF> Tare N P <CR> <LF> already pre-tared M T <CR>...
  • Page 16 EXCELL PRECISION CO., LTD. Transmission examples: (r n P 2) RS-232 continuous transmission 1. The gross weight (+0.876 kg) shows as below, after stable: (no tare or pre-tare mode) <CR> <LF> HEAD1 , HEAD2 DATA UNIT 2. The net weight (-1.568 lb) shows as below without weight stability: (under tare or pre-tare mode) <CR>...
  • Page 17 EXCELL PRECISION CO., LTD. Stable Transmission in totalizing mode (r n P 5) WT/UNIT ( kg / lb ) - - - - - - - - - - - - - -  The scale is stable 0001 1.0000 ...
  • Page 18 EXCELL PRECISION CO., LTD. Continuous transmission, bluetooth format (r n P 13) HEAD1 ( 2 BYTES ) HEAD2 ( 2 BYTES ) OL - Overload , Under load TARE Mode ST - Display is Stable NET Mode US - Display is Unstable...

  • Page 19: F6 Exit Function

    EXCELL PRECISION CO., LTD. Print TOTAL and r n p 10 RS232 transmit RS232 transmit clears totalized Transmission (Brazil) values Print after removing goods (5% After placing item and become stable, beep twice. RS232 r n p 11 mode) transmit item weight after item is removed.
  • Page 20 EXCELL PRECISION CO., LTD. hold 0 = No hold function hold 1 = For varying weighing value, the scale will automatically hold the maximum weighing value to display. To exit hold mode, press any key (except the key). hold 2 = After the scale is stabilized, the scale will automatically hold the display value( not changeable due to external variables)To exit hold mode, press any key.( except the...

  • Page 21: F11 Id Code Setting

    EXCELL PRECISION CO., LTD. 3-6 F11 ID Code Setting (must be used with r n P 1, r n P 2, r n P 8 of F5) Press key or key to select F11 Machine ID code setting: Press set 01 ~ 99. Default setting: 00 (1) “00”: RS-232 does not transmit Machine ID.

  • Page 22: F14 Customized Header Setting (R N P 6, R N P 7)

    EXCELL PRECISION CO., LTD. 3-8 F14 Customized Header Setting (r n P 6, r n P 7) CODE Description CODE Description No print. TICKET NO. DATE (Note: need FB53’s MINI_PRINTER to print) TIME (Note: need FB53’s MINI_PRINTER to print) F14 contains a 9-digit code. For example: 6 1 2 3 4 5 0 0 0 ○...

  • Page 23: Appendix 1 Option Card Description

    EXCELL PRECISION CO., LTD. Appendix 1 Option Card Description RS232 Output 1. Weighing scale (AW, HW, FD, RW, TW) RS232 card’s 6PIN cable connect to CN3 of mainboard SCALE RS232 SCALE PRINTER DB 9 (female) DB 9 (female) DB 9 (female) DB 9 (male) ...
  • Page 24 EXCELL PRECISION CO., LTD. 4. Configuration OK, High, and Low can be set to NO (normally open, Type A) or NC (normally closed, Type B). The default value is NO (normally open, Type A)  OK, High, and Low are NO (normally open, Type A)  default ...

  • Page 25: Appendix 2 Load Cell Pin

    EXCELL PRECISION CO., LTD. Appendix 2 Load Cell PIN  For indicators only shield EXC+ SIG+ EXC- SIG- Load Cell Load Cell cable 5-pin female connector EXC+ EXC - SIG+ SIG - Appendix 3 7-Segment Display Characters 02036XXX ZSME300000422...
