  • Page 1: User Manual

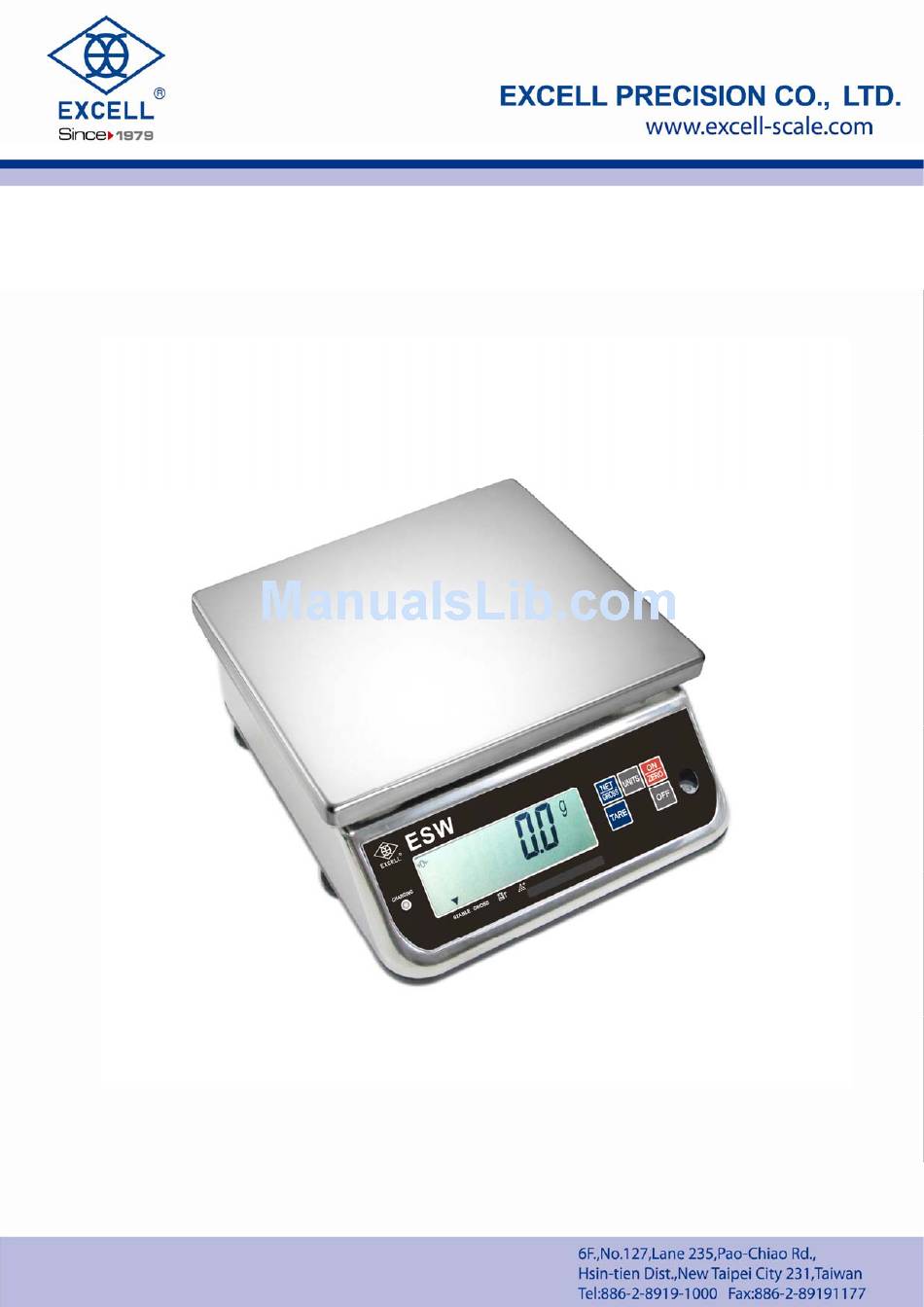

    Waterproof Weighing scale © Excell Precision Limited 2014. All rights reserved Worldwide. The information contained herein is the property of Excell Precision Limited and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.

  • Page 3: Table Of Contents

    EXCELL PRECISION CO., LTD. Table of Content INSTRUCTION FOR USE ....................2 PREPARING TO USE THE SCALE ..................2 CHAPTER 1 INTRODUCTION ....................4 1-1 F ..................4 EATURES AND PECIFICATIONS 1-2 P ......................5 OWER UPPLY 1-3 P ................5 ANEL AND EYBOARD NTRODUCTION 1-4 O ....................6...

  • Page 4: Instruction For Use

    EXCELL PRECISION CO., LTD. Thank you for purchasing EXCELL waterproof weighing scale. In order to use the scale properly, please read this instruction carefully before use. If you have a problem concerning the scale, please contact your supplier. Instruction for Use 1.

  • Page 5: Safety Warnings

    EXCELL PRECISION CO., LTD. Due to the storage battery adopt the advanced free-maintaining technique, customers need not to replenish electrolyte. The scale should be recharged every 3 months to prevent failure of the internal rechargeable battery. 1. The battery should be charged for 8~10 hours.

  • Page 6: Chapter 1 Introduction

    EXCELL PRECISION CO., LTD. Chapter 1 Introduction 1-1 Features and Specifications Features: Sealed waterproof silica gel strip blocks water from infiltrating into the scale. Surrounded by waterproof grade sheeting to ensure the water free. 1/3,000~1/6,000 display resolution available. Aluminum frames coated with anti-corrosion treatment for longer lifespan.

  • Page 7: Power Supply

    EXCELL PRECISION CO., LTD. 1-2 Power Supply Power Supply Selection DC 6V / 4Ah rechargeable battery AC 110V~240V (±10％) adapter Power Consumption 14mA (system no backlight；Single display) about 275 hours 19mA (system backlight；single display) about 200 hours Low Battery Warning...

  • Page 8: Operating The Scale

    EXCELL PRECISION CO., LTD. 1. When the scale powers on if the weight is negative and after a container is placed on the weigh pan if the weight is still below zero. 2. The tare value is over the full scale capacity.

  • Page 9: Self-Test Mode

    EXCELL PRECISION CO., LTD. SIMPLE COUNTING FUNCTION (1) Use the UNITS key to enter into the “PCS” mode (2) Press the NET/GROSS key to select the counting sample size (S = 10, S = 20, S = 50, S = 100, S=200).

  • Page 10: Error Messages

    EXCELL PRECISION CO., LTD. INTERNAL VALUE MODE (must hook up Load Cell to test) Press to enter, and the display shows internal value TARE Please check whether the internal value has changed obviously with weight changing. Please check the backlight.

  • Page 11: Chapter 2 Advanced Functions

    EXCELL PRECISION CO., LTD. Chapter 2 Advanced Functions 2-1 Advanced Function Setting Table Below is an overview of the advanced functions. For detailed settings refer to the following sections: DISPLAY LEVEL 1 FUNCTION DISPLAY LEVEL 2 FUNCTIONS Exit the ADVANCED...

  • Page 12: Advanced Function Setting Workflow

    EXCELL PRECISION CO., LTD. 2-2 Advanced Function Setting Workflow In the weighing mode, press the keys at the same time to NET/GROSS ON/ZERO enter the Advanced Function setting mode. The LCD shows Overall workflow of the Advanced Function setting mode:...

  • Page 13: General Function Setting

    EXCELL PRECISION CO., LTD. 2-3 General Function Setting There are 7 functions in the general function setting mode from Workflow of the General Function setting: DISPLAY NOTE ACTIONS Press TARE ON/ZERO key ⇒ Upward key (from 0 to 9) UNITS key ⇒ Downward key (from 9 to 0) TARE key ⇒...

  • Page 14: Automatic Backlight Function Setting

    EXCELL PRECISION CO., LTD. 2-3-1 Automatic Backlight Function Setting Select in the General Function setting mode change the backlight function setting. NOTE ACTIONS DISPLAY Press TARE LCD displays the last status ON/ZERO UNITS key to select function “on” or “off...

  • Page 15: Automatic Power-Off Timer Setting

    EXCELL PRECISION CO., LTD. 2-3-2 Automatic Power-off Timer Setting Select in the General Function setting mode change the automatic power-off timer setting. DISPLAY NOTE ACTIONS Press TARE key LCD displays the last status Use ON/ZERO or UNITS Automatic power-off timer setting...

  • Page 16: Hi/Lo/Ok Function Setting

    EXCELL PRECISION CO., LTD. 2-3-3 Hi/Lo/OK Function Setting Select in the General Function setting mode set the Hi/Lo/OK function. This function is available in all unit modes. In one specific unit mode, enter to set the Hi/Lo/OK values. NOTE ACTIONS DISPLAY When the high limit and low limit are both set as “0”, the Hi/Lo/OK function is...

  • Page 17: Restore To The Default Setting

    EXCELL PRECISION CO., LTD. 2-3-4 Restore to the Default Setting Select in the General Function setting mode restore to the default setting. DISPLAY NOTE ACTIONS ON/ZERO key ⇒ Upward key (from 0 to 9) UNITS key ⇒ Downward key (from 9 to 0) Press TARE key TARE key ⇒...

  • Page 18: Noise Filter Setting

    EXCELL PRECISION CO., LTD. 2-3-5 Noise Filter Setting Select in the General Function setting mode set the noise filter setting. NOTE ACTIONS DISPLAY Returning to zero point setting LCD displays the last status Returning to the zero point setting Press TARE key...

  • Page 19: Hold Function Setting

    EXCELL PRECISION CO., LTD. 2-3-6 Hold Function Setting Select in the General Function setting mode to set the hold function. ACTIONS NOTE DISPLAY Press TARE key Hold function setting LCD displays the last parameter setting Hold function setting Use ON/ZERO or UNITS...

  • Page 20: Auto Unit Weight Averaging Setting

    EXCELL PRECISION CO., LTD. 2-3-7 Auto Unit Weight Averaging Setting Auto unit weight averaging setting Press TARE LCD displays the last parameter setting Auto unit weight averaging setting ON/ZERO UNITS keys to key in ON/ZERO UNITS to key in the parameters...

  • Page 21: Weight Calibration

    EXCELL PRECISION CO., LTD. 2-4 Weight Calibration In the weighing mode, press the NET/GROSS and ON/ZERO keys at the same time to enter the Advanced Function setting mode. The LCD shows and use the NET/GROSS or UNITS key to select to enter the weight calibration mode.

  • Page 22: Appendix 1 7-Segment Display Characters

    EXCELL PRECISION CO., LTD. Appendix 1 7-Segment Display Characters Digit 7 segments letter Alphabet 7 segments letter Alphabet 7 segments letter ZSME3000000272 02005311...

This manual is also suitable for:

Esw-3Esw-6Esw-15Esw-30
