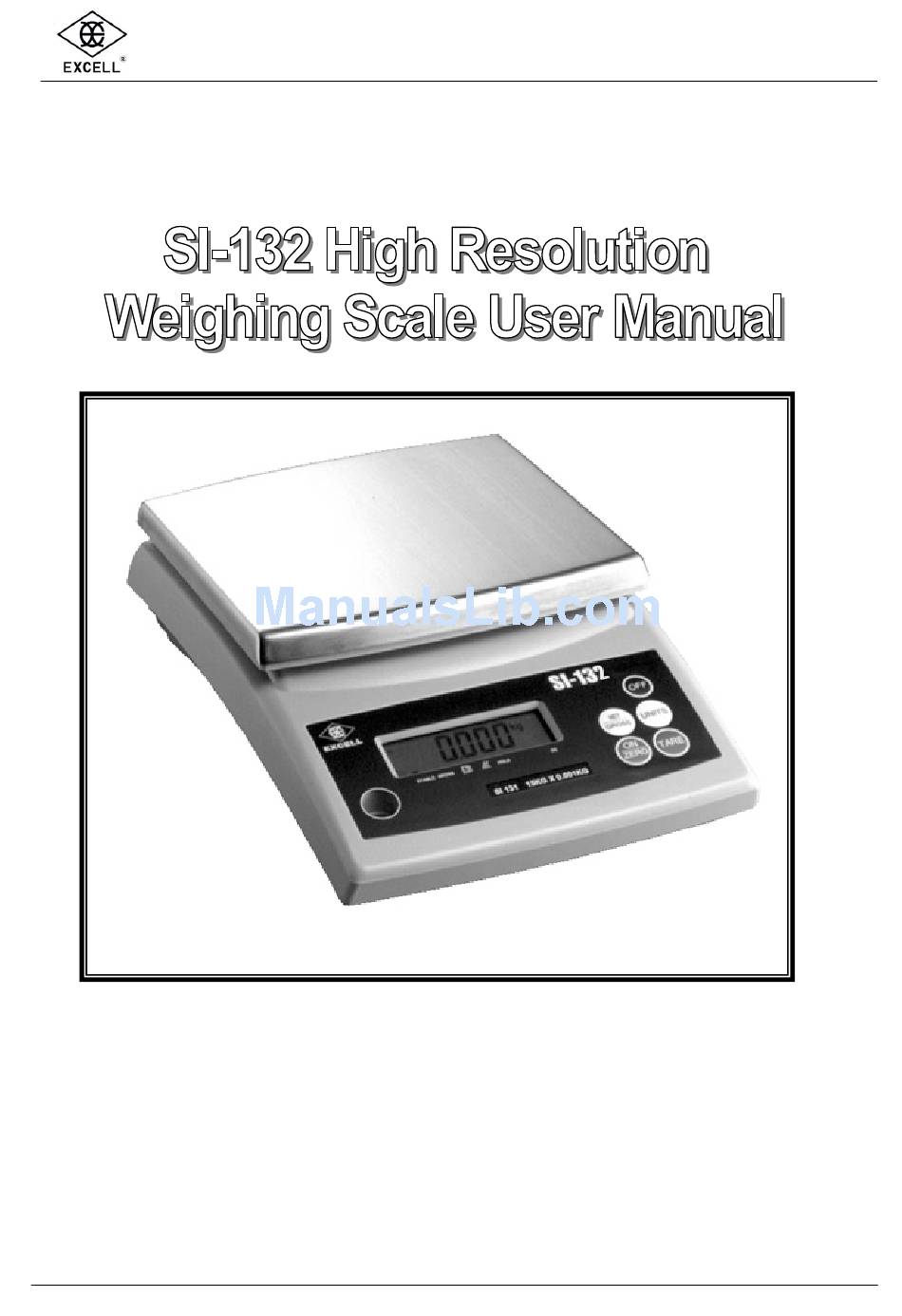

- Page 1 EXCELL PRECISION CO., LTD © Excell Precision Limited 2005. All rights reserved Worldwide. The information contained herein is the property of Excell Precision Limited and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorised by contract or other written permission.
-
Page 3: Table Of Contents
EXCELL PRECISION CO., LTD CONTENT BEFORE USING THE SCALE ..................2 PREPARING TO USE THE SCALE ................. 3 CHAPTER 1 INTRODUCTION..................4 1-1 FEATURES AND SPECIFICATION..............4 1-2 SCALE APPEARANCE ..................5 1-3 POWER SUPPLY....................5 1-4 DISPLAY ......................6 1-5 KEYBOARD FUNCTION.................. -
Page 4: Before Using The Scale
EXCELL PRECISION CO., LTD BEFORE USING THE SCALE Thank you for purchasing an EXCELL High Precision Electronic Digital Scale. In order to use the scale properly, please read this User Manual carefully before use. If you have a problem concerning the scale, please contact your supplier. -
Page 5: Preparing To Use The Scale
EXCELL PRECISION CO., LTD PREPARING TO USE THE SCALE 1. Locate the scale on a firm level surface free from vibrations for accurate weight readings. 2. Adjust the four levelling feet (if fitted) to set the scale pan level using the spirit level bubble located at the front of the scale. -
Page 6: Chapter 1 Introduction
EXCELL PRECISION CO., LTD CHAPTER 1 INTRODUCTION 1-1 FEATURES AND SPECIFICATION Features: 30,000d display resolution Large LCD display (digit height 8.5mm x 18.5mm) with LED backlight Kilogram (kg), gram (g), pound (lb) and ounce (oz) weighing modes Hold function; Check mode Lo/Hi/OK Adjustable gravity value Auto calibration;... -

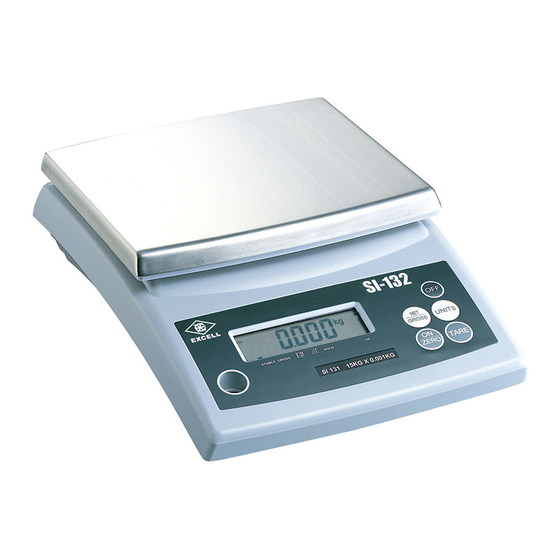

Page 7: Scale Appearance
EXCELL PRECISION CO., LTD 1-2 SCALE APPEARANCE 196 mm The package includes: 174 mm 1. Scale 1 off 2. AC adaptor 1 off 3. User Manual 1 off 80.4 mm * Stainless steel weigh pan is an optional depends on the model you purchase. -
Page 8: Display
EXCELL PRECISION CO., LTD 1-4 DISPLAY The weight on weigh pan is greater than the high limit The weight on weigh pan is equal to the OK limit The weight on weigh pan is lower than the check value kg units. When “kg” is displayed, it means the weight shown is in kg Pound units. -
Page 9: Keyboard Function
EXCELL PRECISION CO., LTD 1-5 KEYBOARD FUNCTION ON/ZERO KEY This key possesses two functions: Power On and Zero function. OFF KEY When the scale is switched on, press the OFF key, the scale will switch off. TARE KEY The tare function will not operate during the following conditions: (1) When the scale powers on if the weight is negative and after a container is placed on the weigh pan if the weight is still below zero. -
Page 10: Operating The Scale
EXCELL PRECISION CO., LTD 1-6 OPERATING THE SCALE POWER ON When the scale is off, press the ON/ZERO key, the scale will switch on. POWER OFF When the scale is on, press the OFF key, the scale will switch off. - Page 11 EXCELL PRECISION CO., LTD NET/GROSS FUNCTION In the Tare mode, the screen displays the “Net” icon, press the NET/GROSS key to switch between the “Net value” and the “Gross value”. 4 When the 6GROSS icon is on, the weight value on the display is the total amount of the tare value and net value.
-
Page 12: Chapter 2 Advanced Functions
EXCELL PRECISION CO., LTD CHAPTER 2 ADVANCED FUNCTIONS 2-1 ADVANCED FUNCTION SETTING TABLE Below is an overview of the advanced functions. For detailed settings refer to the following sections:- DISPLAY LEVEL 1 FUNCTION DISPLAY LEVEL 2 FUNCTIONS Exit the ADVANCED... - Page 13 EXCELL PRECISION CO., LTD DISPLAY LEVEL 1 FUNCTION DISPLAY LEVEL 2 FUNCTIONS Continuous Transmission setting Continuous data transmission rate Auto transmission at Zero Reset of auto transmission Output condition setting SI-132 v1.1 SME300000081...
-
Page 14: Advanced Function Setting Workflow
EXCELL PRECISION CO., LTD 2-2 ADVANCED FUNCTION SETTING WORKFLOW In the weighing mode, press the NET/GROSS and ON/ZERO keys at the same time to enter the Advanced Function setting mode. The LCD shows Overall workflow of the Advanced Function setting mode:... -
Page 15: General Function Setting
EXCELL PRECISION CO., LTD 2-3 GENERAL FUNCTION SETTING There are 7 functions in the general function setting mode from Workflow of the General Function setting: DISPLAY NOTE ACTIONS ON/ZERO key ⇒ Upward key (from 0 to 9) UNITS key ⇒ Downward key (from 9 to 0) Press TARE key TARE key ⇒... -
Page 16: Automatic Backlight Function Setting
EXCELL PRECISION CO., LTD 2-3-1 Automatic Backlight Function Setting Select in the General Function setting mode change the backlight function setting. DISPLAY NOTE ACTIONS Press TARE key LCD displays the last status Use ON/ZERO or UNITS key to select function “on”... -
Page 17: Automatic Power-Off Timer Setting
EXCELL PRECISION CO., LTD 2-3-2 Automatic Power-off Timer Setting Select in the General Function setting mode change the automatic power-off timer setting. DISPLAY NOTE ACTIONS Press TARE key LCD displays the last status Use ON/ZERO or UNITS Automatic power-off timer setting... -
Page 18: Hi/Lo/Ok Function Setting
EXCELL PRECISION CO., LTD 2-3-3 Hi/Lo/OK Function Setting Select in the General Function setting mode set the Hi/Lo/OK function. This function is available in all unit modes. In one specific unit mode, enter to set the Hi/Lo/OK values. DISPLAY NOTE ACTIONS 4 When the high limit and low limit are both set as “0”, the Hi/Lo/OK function is... -
Page 19: Restore To The Default Setting
EXCELL PRECISION CO., LTD 2-3-4 Restore to the Default Setting Select in the General Function setting mode restore to the default setting. DISPLAY NOTE ACTIONS ON/ZERO key ⇒ Upward key (from 0 to 9) UNITS key ⇒ Downward key (from 9 to 0) Press TARE key TARE key ⇒... -
Page 20: Noise Filter Setting
EXCELL PRECISION CO., LTD 2-3-5 Noise Filter Setting Select in the General Function setting mode set the noise filter setting. NOTE ACTIONS DISPLAY 4 When modifying , the parameters of remain un-altered. Returning to zero point setting LCD displays the last status... -
Page 21: Hold Function Setting
EXCELL PRECISION CO., LTD 2-3-6 Hold Function Setting Select in the General Function setting mode set the hold function. ACTIONS NOTE DISPLAY Press TARE key Hold function setting LCD displays the last parameter setting Hold function setting Use ON/ZERO or UNITS... -
Page 22: Auto Unit Weight Averaging Setting
EXCELL PRECISION CO., LTD 2-3-7 Auto Unit Weight Averaging Setting Press TARE Auto unit weight averaging setting LCD displays the last parameter setting Auto unit weight averaging setting ON/ZERO UNITS keys to key in ON/ZERO UNITS to key in the parameters... -
Page 23: Weight Calibration
EXCELL PRECISION CO., LTD 2-4 WEIGHT CALIBRATION In the weighing mode, press the NET/GROSS and ON/ZERO keys at the same time to enter the Advanced Function setting mode. The LCD shows use the NET/GROSS or UNITS key to select to enter the weight calibration mode. -
Page 24: Rs232 Serial Interface Settings
EXCELL PRECISION CO., LTD 2-5 RS232 SERIAL INTERFACE SETTINGS In the weighing mode, press the NET/GROSS and ON/ZERO keys at the same time to enter the Advanced Function setting mode. The LCD shows use the NET/GROSS or UNITS key to select to enter the RS232 serial interface setting mode. -
Page 25: Baud Rate Setting
EXCELL PRECISION CO., LTD 2-5-1 Baud Rate Setting Select in the RS232 serial interface setting mode to set the Baud Rate. ACTIONS NOTE DISPLAY Press TARE key Baud rate setting LCD displays the last value 4 Default value: 9600 (bits/sec) -
Page 26: Communication Protocol Setting
EXCELL PRECISION CO., LTD 2-5-2 Communication Protocol Setting Select in the RS232 serial interface setting mode to set the Communication Protocol. ACTIONS NOTE DISPLAY Press TARE key Communication protocol setting LCD shows the last setting value. 4 Default setting: n 8 1... -
Page 27: Output Format Setting
EXCELL PRECISION CO., LTD 2-5-3 Output Format Setting Select in the RS232 serial interface setting mode to set the Output Format. ACTIONS DISPLAY NOTE RS232 output format setting LCD shows the last setting. 4 Default setting: Press TARE key RS232 output format setting... -
Page 28: Continuous Transmission Setting
EXCELL PRECISION CO., LTD 2-5-4 Continuous Transmission Setting Select in the RS232 serial interface setting mode to set the Continuous Transmission Setting. ACTIONS NOTE DISPLAY Press TARE key Transmission setting LCD shows the last setting 4 Default setting: Use ON/ZERO or UNITS... -
Page 29: The Selection Of The Continuous Transmission Rate
EXCELL PRECISION CO., LTD 2-5-5 The selection of the Continuous Transmission Rate Select in the RS232 serial interface setting mode to set the Continuous Transmission Rate. ACTIONS NOTE DISPLAY Press TARE key Continuous transmission rate setting The LCD shows the last setting. -
Page 30: Auto Transmission At Zero
EXCELL PRECISION CO., LTD 2-5-6 Auto Transmission at Zero Select in the RS232 serial interface setting mode to set the Auto Transmission at Zero. ACTIONS NOTE DISPLAY Press TARE key Auto transmission at zero LCD shows the last setting 4 Default setting:... -
Page 31: Reset Of Auto Transmission
EXCELL PRECISION CO., LTD 2-5-7 Reset of Auto Transmission Select in the RS232 serial interface setting mode to Reset of Auto Transmission. ACTIONS NOTE DISPLAY Press TARE key Reset of auto transmission The LCD shows the last setting 4 Default setting:... -
Page 32: Output Condition Setting
EXCELL PRECISION CO., LTD 2-5-8 Output Condition Setting Select in the RS232 serial interface setting mode to Reset of Auto Transmission. ACTIONS NOTE DISPLAY Press TARE key Output condition setting The LCD shows the last setting. 4 Default setting: Use ON/ZERO or UNITS... -
Page 33: Command Mode
EXCELL PRECISION CO., LTD 2 Command mode Command Format A Host Command Slave Command Zero Command mode Tare Switch to the first unit Gross weight Switch to the second unit Net weight Switch to the third unit Clear TARE value... -
Page 34: Error Messages
Slave Position of Value (e.g. Price) decimal point When the SI-132 receives this data format, it will transfer the data and display it on its LCD. ˙ Note: The function is effective, when the weight value is over 0. 4 Error messages:... -
Page 35: Output Data Format
EXCELL PRECISION CO., LTD 2 Output data format Weight format Gross 7 SP SP o Tare 6 SP SP k CR LF Plus OL + SP SP SP SP SP SP SP SP SP SP SP SP Minus OL O L... -
Page 36: Appendix 1 7 Segment Display Characters
EXCELL PRECISION CO., LTD APPENDIX 1 7 SEGMENT DISPLAY CHARACTERS Digit 7 segments letter Alphabet 7 segments letter Alphabet 7 segments letter SI-132 v1.1 SME300000081... -
Page 37: Appendix 2 Ascii Code Table
EXCELL PRECISION CO., LTD APPENDIX 2 ASCII CODE TABLE ASC II ASC II ASC II Symbol Symbol Symbol Code Code Code ↵ SI-132 v1.1 SME300000081...
