SETTING UP MICRO-TOUCH
1. Loosen rail clamp levers on table mount before removing from transportation stand. Slide table mount onto table rail and tighten rail clamp levers to
secure. Center the Y adjustment.
2. Remove stabilizer from transportation stand. Fit dovetailed mounting plate to mating stabilizer mounting plate on table mount. Secure with stabilizer
quick connect knob.
®

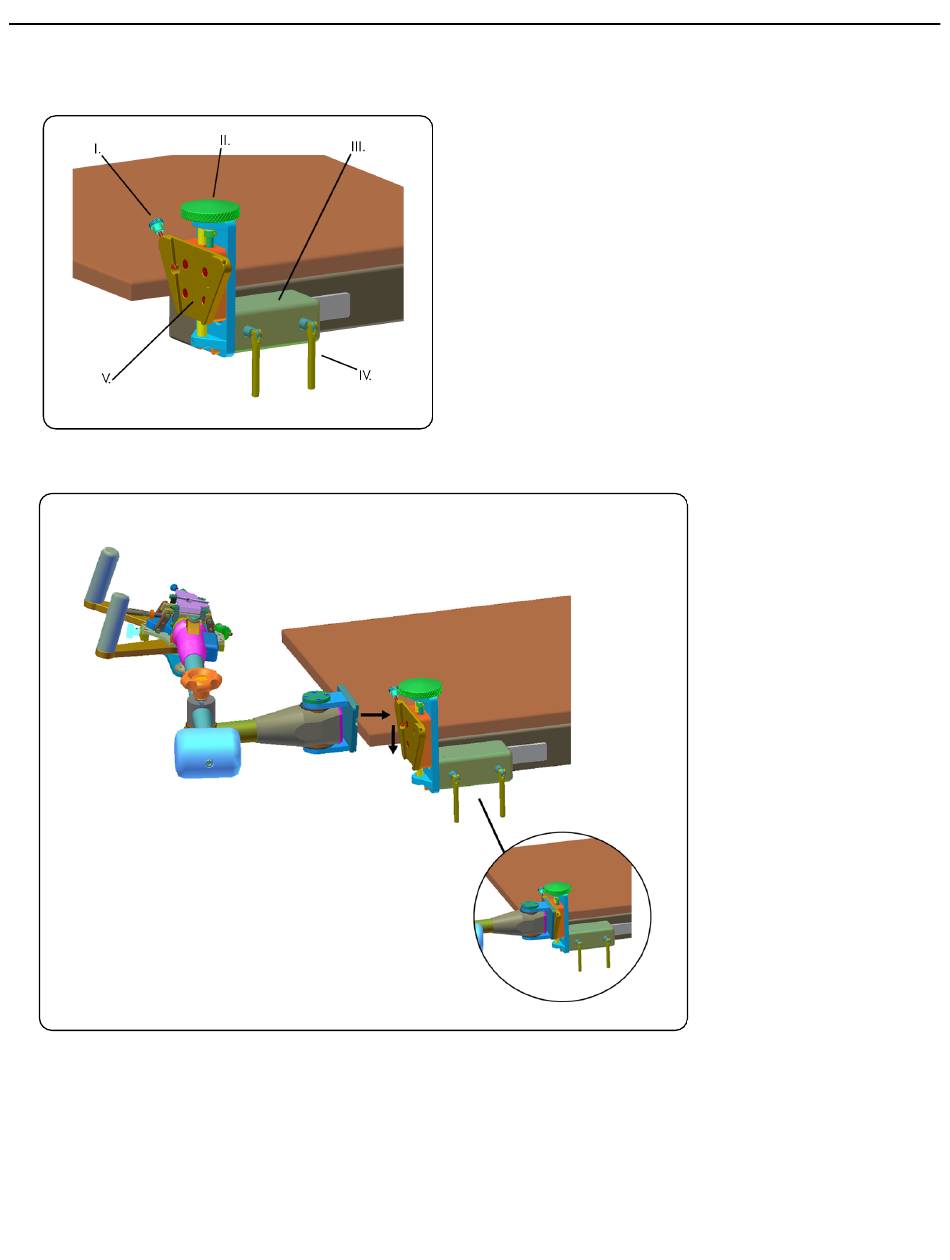

STABILIZER LP (SINGLE-SIDED TABLE MOUNT)
Micro-Touch® Stabilizer LP (Single-Sided Table Mount)
I. Stabilizer quick connect knob
II. Knob Y
III. Rail clamp
IV. Rail clamp levers
V. Stabilizer mounting plate
2
