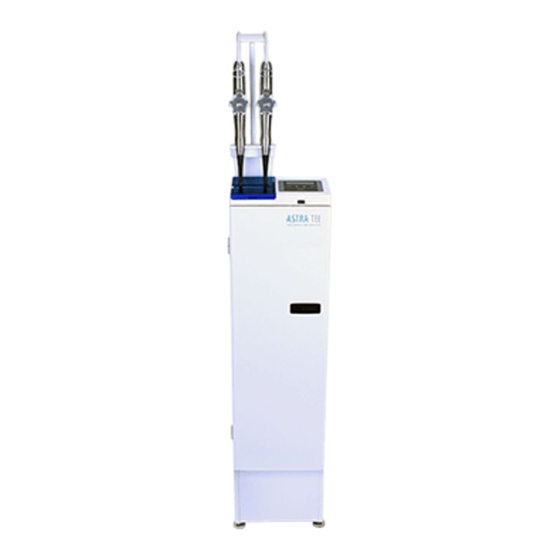

Civco ASTRA TEE Installation Manual
Transesophageal probe reprocessor
Hide thumbs
Also See for ASTRA TEE:
- Installation manual (24 pages) ,
- Quick start instructions (6 pages) ,
- Operator's manual (93 pages)
Table of Contents
Advertisement
Quick Links
ASTRA TEE
®
Transesophageal
Probe Reprocessor
Installation Manual
CIVCO Medical Solutions
102 First Street South
Kalona, IA 52247 USA
WWW.CIVCO.COM
Sales: info@civco.com
Copyright © 2017 All Rights Reserved.
Customer Service: info@civco.com
ASTRA TEE® is a registered trademark of CIVCO Medical Solutions.
Technical Support: service@civco.com
All other trademarks are property of their respective owners.
Printed in the USA.
Phone: (800) 445-6741
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Civco ASTRA TEE
Summary of Contents for Civco ASTRA TEE
- Page 1 WWW.CIVCO.COM Sales: info@civco.com Copyright © 2017 All Rights Reserved. Customer Service: info@civco.com ASTRA TEE® is a registered trademark of CIVCO Medical Solutions. Technical Support: service@civco.com All other trademarks are property of their respective owners. Printed in the USA. Phone: (800) 445-6741...
-
Page 2: Warnings And Cautions
This installation requires that appropriate plumbing and electrical supplies are present before connecting the ASTRA TEE system. Installing the ASTRA TEE system does not require specialized training. Contact CIVCO Medical Solutions with any questions or comments regarding the information contained in this manual at (800) 445-6741 or via email at info@civco.com. - Page 3 ASTRA TEE® Transesophageal Probe Reprocessor Installation Manual 3. SITE REQUIREMENTS & SPECIFICATIONS Actual Size (ASTRA TEE): Width: 12.0” (30.5 cm) Depth: 14.0” (35.6 cm) Height: 65.0” (165 cm) Weight: 73 lbs. (33.1 kg) Minimum Clearances Required: Front: 12.0” (30.5 cm) Left: 12.0”...
-
Page 4: Parts Required
*Ensure all parts are available prior to attempting installation If there are any damaged or missing parts, please call Customer Service at CIVCO Medical Solutions (800) 445-6741. NOTE: ASTRA TEE Tower contains its own assembly instructions and is assembled during the in-service procedure. -
Page 5: Installation
5. INSTALLATION A. Typical installation The ASTRA TEE is a floor standing unit which requires a potable water supply, waste drain, and GFCI electrical connection all within 8ft (2.4 m) of the installation location. The ASTRA TEE device is required to be mounted to the wall using a supplied wall bracket. Failure to follow these installation instructions may affect the operation and effectiveness of this device. - Page 6 ASTRA TEE® Transesophageal Probe Reprocessor Installation Manual The device is supplied with 10ft. of 3/8” drain and water inlet hoses and connectors, and a 10 ft. removable hospital grade power cord. Use of the supplied power cord is required to maintain proper grounding and safe operation of the device.
- Page 7 B. Mounting the Unit Wall Bracket: The ASTRA TEE requires clear wall space of 24” wide and 67” high. A wall bracket is shipped with the unit to hold the unit securely against the wall for added safety. Refer to Figure 2 for mounting location of the bracket.
-
Page 8: Electrical Connection
Switch on green illuminated power switch. If switch does not illuminate, make sure GFCI receptacle has been reset. CAUTION: Use of a power cord not supplied by CIVCO Medical Solutions may affect the safety and performance of this device. -
Page 9: Installation Checklist
Once the plumbing, electrical and mounting connections have been installed, a photograph of the installation should be taken, a list of probe models to be used with the ASTRA TEE complied and the following completed checklist should be emailed to CIVCO Medical Solutions.
