SECTIONS 3

SYSTEM OVERVIEW

3.1 INTRODUCTION

®

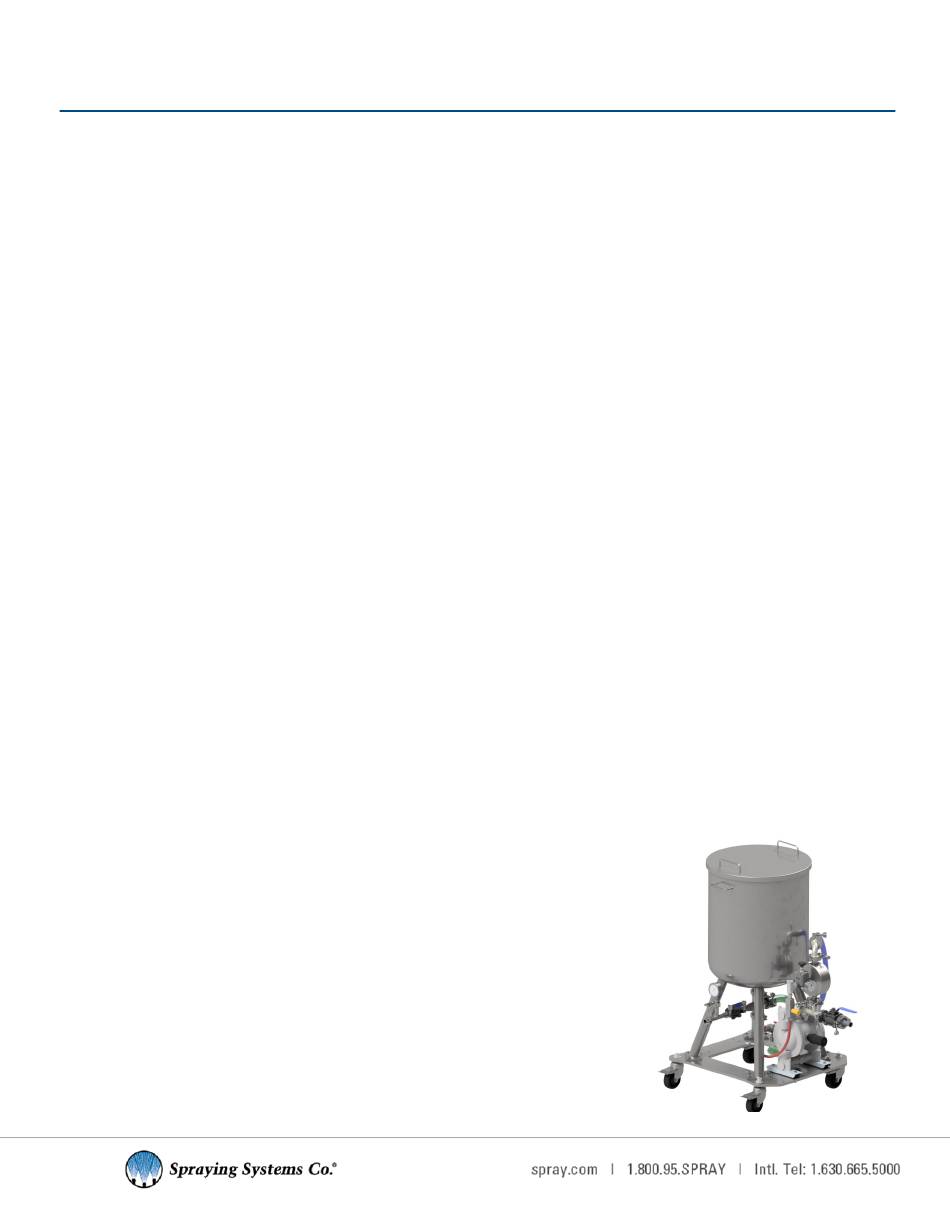

The AutoJet Sanitary Food Coating Spray System is a system that can be used in a variety of applications to properly
manage fluid supply of low to mid viscosity fluids. This system consists of a 20-gallon, 316 steel supply tank and
sanitary, FDA compliant, air operated diaphragm pump to efficiently deliver processed fluid to the spray nozzles. It
offers versatility through a variety of equipment options such as, auto refill for keeping the tank full without disturb-
ing production and in-line liquid heating for viscous spray applications. Sanitary materials and clamp-style connec-
tions allow for easy cleaning and low maintenance costs. The recommended Spraying Control Panel options are a
separate kit that may not be included.

3.2 SPECIFICATIONS

AIR INPUT REQUIREMENTS
•
Pressure: 80 psi (min), 100 psi (max)
•
Inlet Port: 3/4" SF (f)
•
Consumption: Main System: 10 SCFM Normal/40 SCFM Max Operation
ENVIRONMENTAL
•
Operating temperature range: 32° to 120°F (0° to 42.8°C)
•
Humidity Range: 5 to 95% (non-condensing)
LEVEL SENSOR (OPTIONAL)
TDR (Time Domain Reflectometry) Level Sensor
—4 to 302°F (-20° to 150°C)
—232 psi max. (16 bar)
—24 V DC
SUPPLY TANK
•
20 gallon (76-liters) tank with removable lid
— 18" diameter lift-off lid
— Stainless steel bar leg supports
•
Frame mount assembly
— Stainless steel frame for mounting all components
— 48 inches long x 36 inches wide x 60 inches high
•
316L SS construction Electropolished
