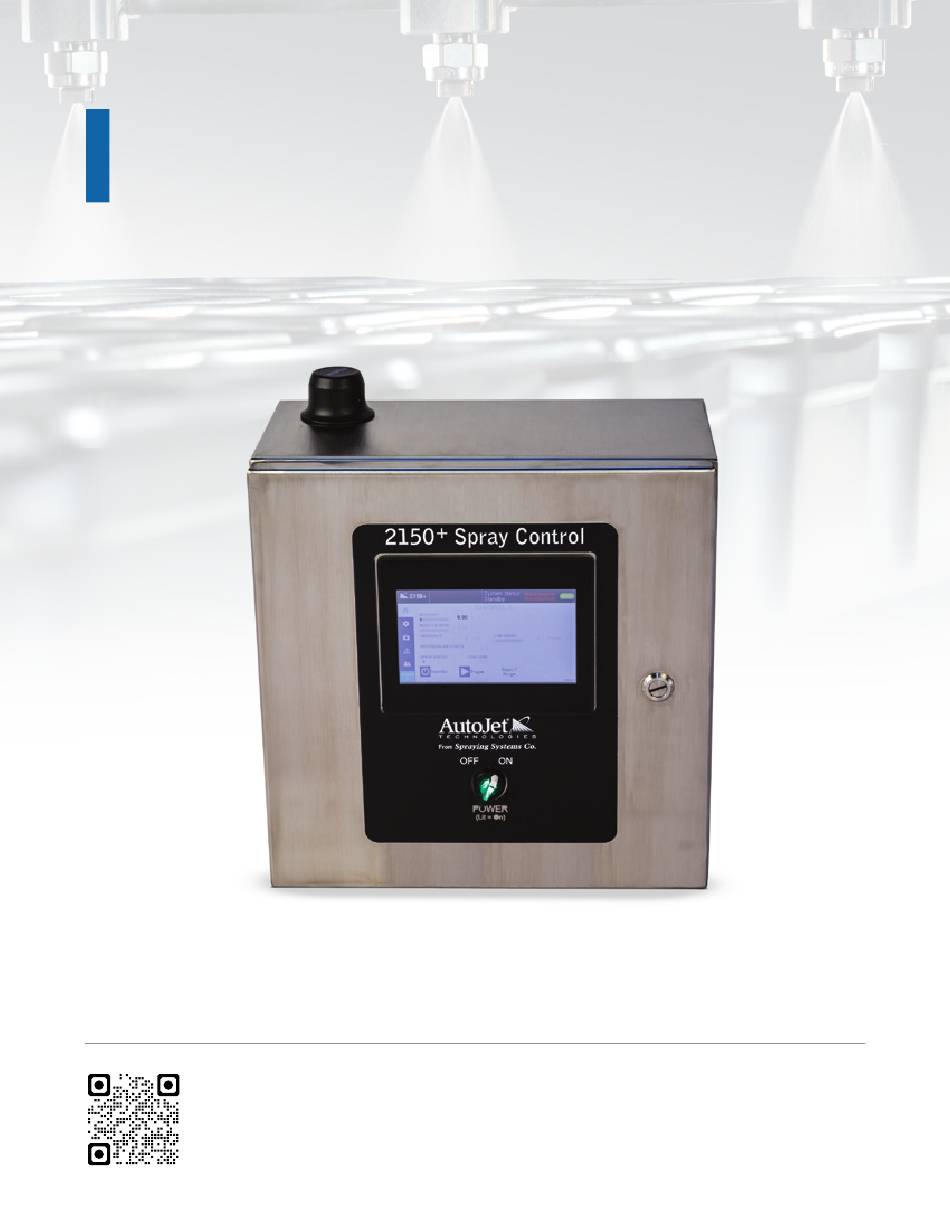

AUTOJET
2150+ SPRAY CONTROL PANEL
®
QUICK START GUIDE
Each user's setup will be different and may or may not include all the connections or features that are listed.
See owner's manual for more information on connections.
Scan the QR code above, or spray.com/autojetspraycontrol, to access manuals,
videos and additional resources on the AutoJet 2150+ control panel.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTOJET 2150+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spraying Systems Co AUTOJET 2150+

Summary of Contents for Spraying Systems Co AUTOJET 2150+

  • Page 1 AUTOJET 2150+ SPRAY CONTROL PANEL ® QUICK START GUIDE Each user’s setup will be different and may or may not include all the connections or features that are listed. See owner’s manual for more information on connections. Scan the QR code above, or spray.com/autojetspraycontrol, to access manuals, videos and additional resources on the AutoJet 2150+ control panel.

  • Page 2: Mount The Panel

    16" (406 mm) MOUNT 14.5" (368 mm) THE PANEL Mount the panel. If mounting on a wall use anchors that are designed to support at least 25 lbs. (11.34 kg), according to the anchor manufacturer’s specifications. If mounting to an AutoJet® system use provided hardware. The mounting 18.49”...

  • Page 3: Additional Connections

    ADDITIONAL CONNECTIONS IF APPLICABLE 1. TRIGGER OR SENSOR Connect cable to Trig connection that will be used to start spray sequence. Available triggers are as follows, the one used should be based on the customer’s application. Fan/Atm T. Int. Main 1 Main 2 Trig •...

  • Page 4: Power Up The Panel

    POWER UP THE PANEL 2150 + Spray Control Plug into grounded 100/240VAC, 3A, single phase GFCI outlet. Turn power on. HMI display will illuminate. To set spray parameters and for HMI operation, please refer to the Application Settings in the owner’s manual. OFF ON POWER [LIT - ON]...
  • Page 5 North Avenue and Schmale Road, P.O. Box 7900, Wheaton, IL 60187-7901 USA Tel: 1.800.95.SPRAY Intl. Tel: 1.630.665.5000 Fax: 1.888.95.SPRAY Intl. Fax: 1.630.260.0842 Email: info@spray.com www.spray.com PPN: ML002150QSG Rev. 041322 © 2022 Spraying Systems Co. All rights reserved.
