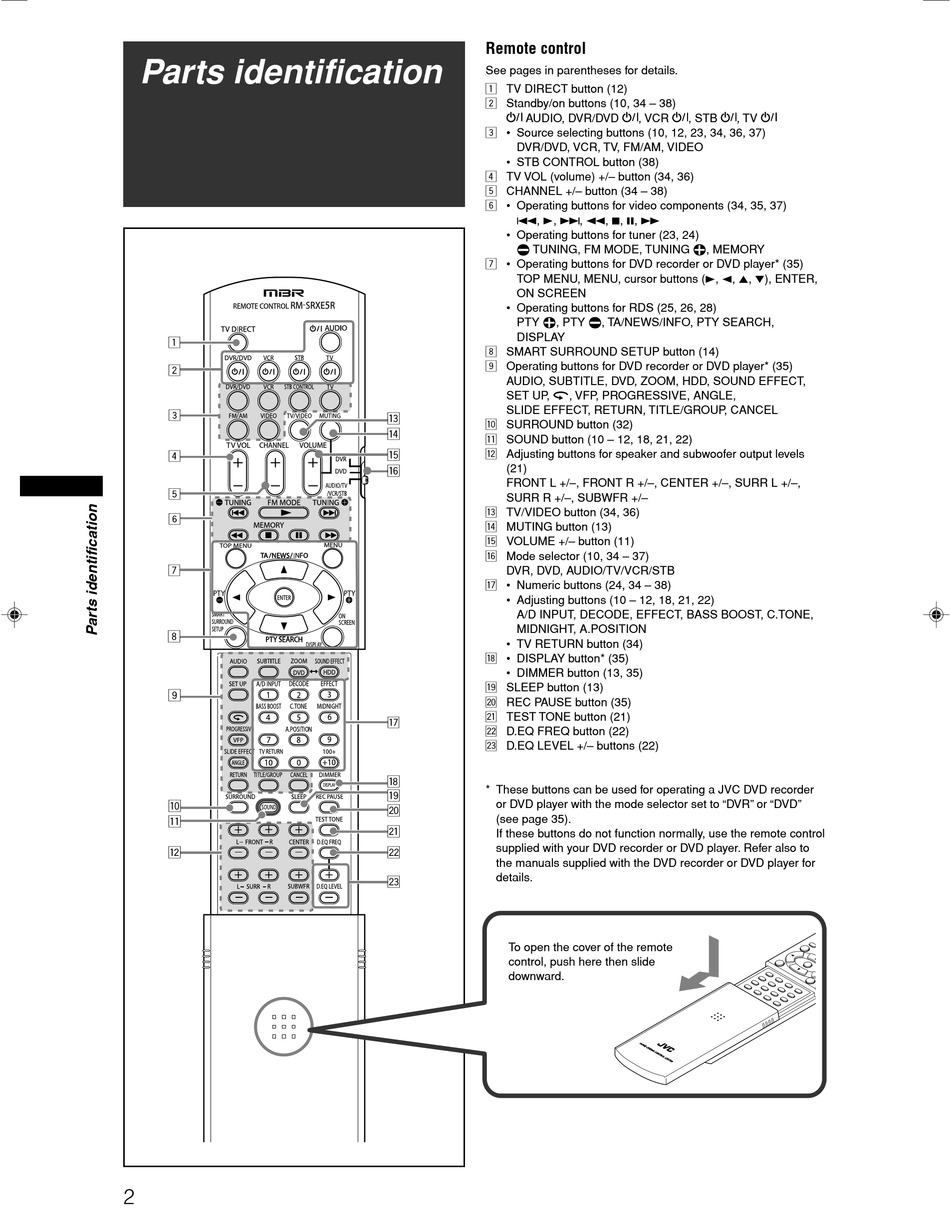

Parts identification

1
2
3
4
5
6
7
8
9
p
q
w
2
Remote control
See pages in parentheses for details.
1 TV DIRECT button (12)
2 Standby/on buttons (10, 34 – 38)
AUDIO, DVR/DVD
3 • Source selecting buttons (10, 12, 23, 34, 36, 37)
DVR/DVD, VCR, TV, FM/AM, VIDEO
• STB CONTROL button (38)
4 TV VOL (volume) +/– button (34, 36)
5 CHANNEL +/– button (34 – 38)
6 • Operating buttons for video components (34, 35, 37)
4, 3, ¢, 1, 7, 8, ¡
• Operating buttons for tuner (23, 24)
( TUNING, FM MODE, TUNING 9, MEMORY
7 • Operating buttons for DVD recorder or DVD player* (35)
TOP MENU, MENU, cursor buttons (3, 2, 5, ∞), ENTER,
ON SCREEN
• Operating buttons for RDS (25, 26, 28)
PTY 9, PTY (, TA/NEWS/INFO, PTY SEARCH,
DISPLAY
8 SMART SURROUND SETUP button (14)
9 Operating buttons for DVD recorder or DVD player* (35)
AUDIO, SUBTITLE, DVD, ZOOM, HDD, SOUND EFFECT,
SET UP,
SLIDE EFFECT, RETURN, TITLE/GROUP, CANCEL
e
p SURROUND button (32)
r
q SOUND button (10 – 12, 18, 21, 22)
t w Adjusting buttons for speaker and subwoofer output levels
(21)
y
FRONT L +/–, FRONT R +/–, CENTER +/–, SURR L +/–,
SURR R +/–, SUBWFR +/–
e TV/VIDEO button (34, 36)
r MUTING button (13)
t VOLUME +/– button (11)
y Mode selector (10, 34 – 37)
DVR, DVD, AUDIO/TV/VCR/STB
u • Numeric buttons (24, 34 – 38)
• Adjusting buttons (10 – 12, 18, 21, 22)
A/D INPUT, DECODE, EFFECT, BASS BOOST, C.TONE,
MIDNIGHT, A.POSITION
• TV RETURN button (34)
i • DISPLAY button* (35)
• DIMMER button (13, 35)
o SLEEP button (13)
; REC PAUSE button (35)
a TEST TONE button (21)
u
s D.EQ FREQ button (22)
d D.EQ LEVEL +/– buttons (22)
i
* These buttons can be used for operating a JVC DVD recorder
o
or DVD player with the mode selector set to "DVR" or "DVD"
;
(see page 35).
a
If these buttons do not function normally, use the remote control
supplied with your DVD recorder or DVD player. Refer also to
s
the manuals supplied with the DVD recorder or DVD player for
details.
d
To open the cover of the remote
control, push here then slide
downward.
, VCR , STB
, VFP, PROGRESSIVE, ANGLE,
, TV
