SERVICE MANUAL
AUDIO/VIDEO CONTROL RECEIVER
POWER
DVD
TV
VCR
AUDIO
SLEEP
TEST
– SUBWOOFER +
1
2
3
5
SURROUND
EFFECT
– CENTER +
4
5
6
BASS
DSP MODE
BOOST
– REAR•L +
7
8
9
5
MENU
SOUND
– REAR•R +
10
0
+10
ENTER
DVD
TV
VCR
INPUT A/D
TV/VIDEO
CD
FM
AM
MUTING
+
+
TV VOL
VOLUME
STANDBY
8
£
POWER
TV DILECT
1
+
+
TV/VCR
CH
7
RM-SRXE100J
SETTING
REMOTE CONTROL

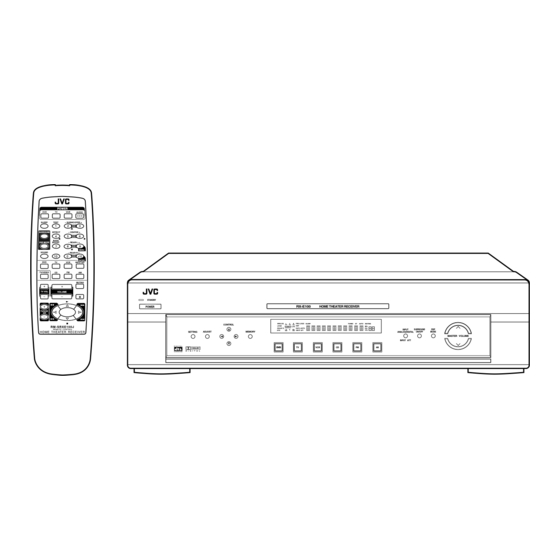

HOME THEATER RECEIVER
D I G I T A L
D I G I T A L
S U R R O U N D
Contents
Safety precautions --------------------------------------------------------1- 2
Importance administering point on the safety ---------------------1- 3
Disassembly method -----------------------------------------------------1- 4
Adjustment method -------------------------------------------------------1- 9
Description of major ICs -------------------------------------------------1-10
RX-E100SL
HOME THEATER RECEIVER
RX-E100
PRO LOGIC
CONTROL
ANALOG
L
C
R
SLEEP
DSP
LPCM
SUBWFR LFE
DGTL AUTO
DOLBY D
LS
S
RS
DTS
INPUT ATT
ADJUST
MEMORY
DVD
DVD
TV
VCR
CD
COPYRIGHT
2001 VICTOR COMPANY OF JAPAN, LTD.
TUNED
ST
AUTO
MUTING
MH
Z
KH
Z
INPUT
SURROUND
DSP
VOL
ANALOG/DIGITAL
ON/OFF
MODE
MASTER VOLUME
INPUT ATT
FM
AM
RX-E100SL
Area Suffix
J
U.S.A
C
Canada
16
No.20955
May 2001
