1.

Flowmeter Primary and Converter Coordination

This Instruction Bulletin describes the assembly and installation of the flow metering system COPA-XT with a 2-Wire Design.
Compact Design COPA-XT
The µP-converter and the flowmeter primary constitute a
single mechanical entity.
Models:
Metering System DT43F or DT43W
1.1

Data Security

All data is stored in a FRAM when the power is turned off or a
power interruption occurs. The parameter settings, process
information and flowmeter primary specific calibration data are
stored in a FRAM as well as in an external EEPROM. There-
fore, when an electronic module and its memory module is ex-
changed all the stored data can be uploaded at any time.

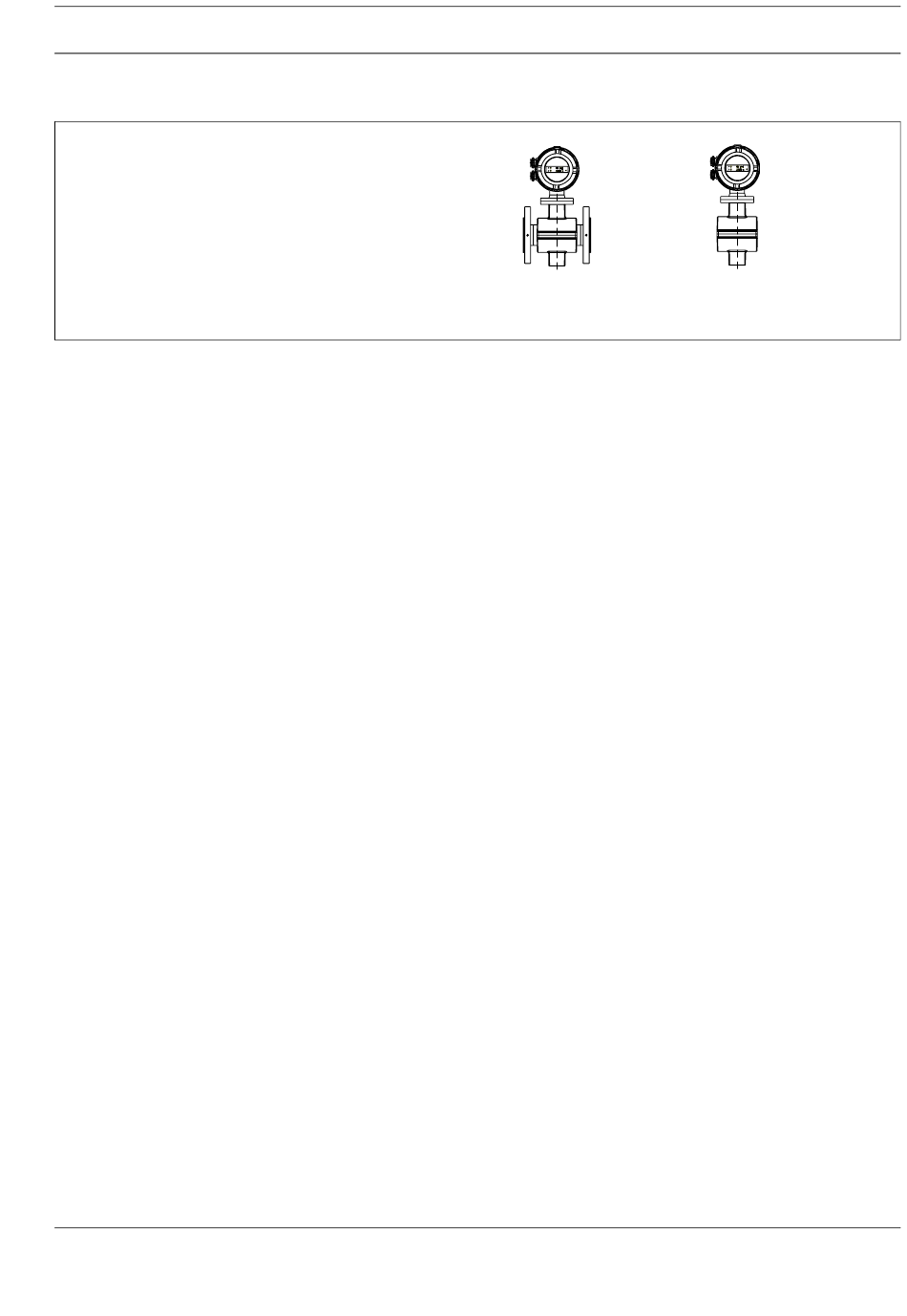

Electromagnetic Flowmeter COPA-XT
Flanged
!
Important Start-Up Information
Data Memory Module (External EEPROM)
The converter is shipped with its appropriate EEPROM
installed in the socket on the converter display plate.
Please check that the correct coordination is maintained
between the flowmeter primary and the converter. The
converters are identified by the end numbers, A1, A2 etc. listed
on the converter Instrument Tag and in addition, the Order
Number is noted on the memory module.
Wafer Design
1
