ABB COPA-XT DT43F Instruction Bulletin page 14

Electromagnetic Flowmeter COPA-XT
c) Plastic, Concrete or Pipelines with
Insulating Liners
1) Install EMF in pipeline with grounding plate. A grounding
plate is not required for flowmeters with grounding
electrodes.
2) Connect the ground strap between the connection tab on
the grounding plate and the ground connection on the
flowmeter primary.
2
3) Connect a 4 mm Cu-wire between the ground connection
on the flowmeter primary and ground.
Grounding Plate

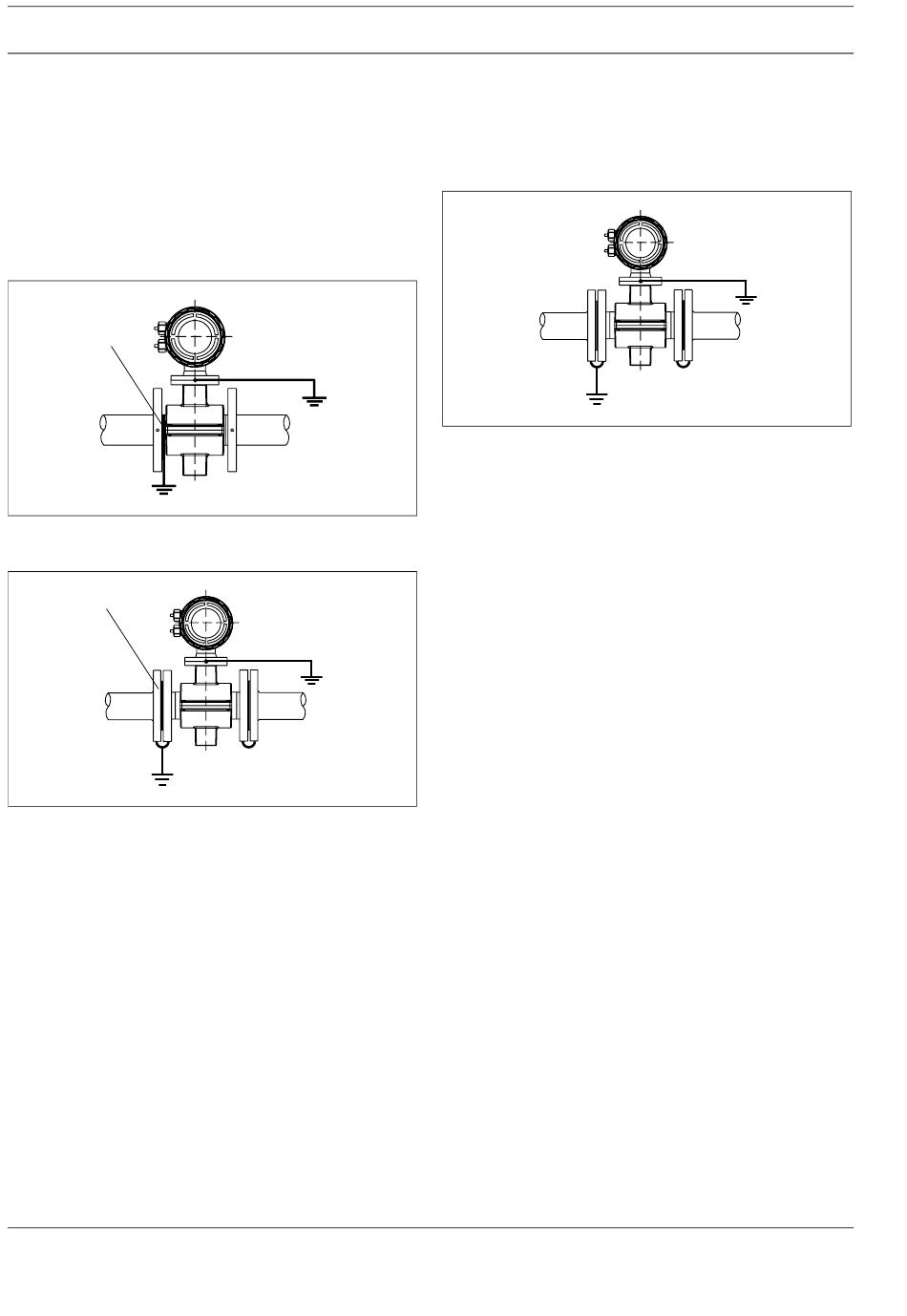

Fig. 15 Wafer Design Flowmeter Primary
Grounding Plate
Fig. 16 Fixed flange Flowmeter Primary
8
d) Plastic, Concrete or Pipelines with Insulating
Liners. Fluid not in contact with pipeline.
Flowmeter Primary with Grounding Electrode(s)
2
1) Connect a 4 mm Cu-wire between the ground connection
on the flowmeter primary and ground.
Fig. 17 Fixed Flange Flowmeter Primary
