FOS Technologies ATLAS Tube Instruction Manual

Waterproof & battery bar, with wireless control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ATLAS Tube
Waterproof & battery bar, with wireless control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATLAS Tube and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FOS Technologies ATLAS Tube

Summary of Contents for FOS Technologies ATLAS Tube

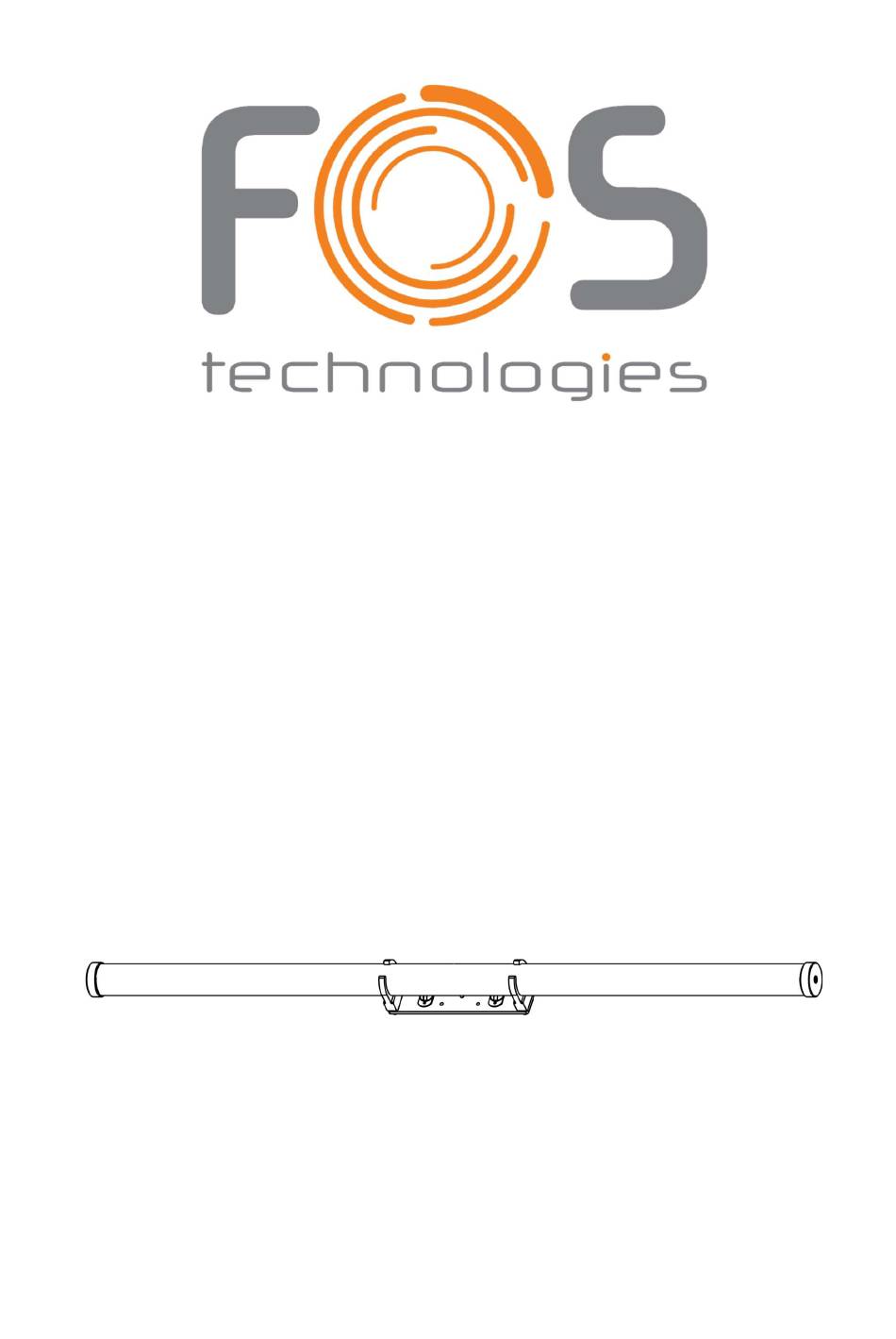

  • Page 1 ATLAS Tube Waterproof & battery bar, with wireless control...

  • Page 2: Security Warning

    Instruction Manual of Atlas Tube Introduction Security Warning When unpacking and before disposing of the carton, check if there is any transportation damage before using  the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.

  • Page 3: Main Technical Parameters

    Heating and burning will melt the battery separator, causing loss of protection function or burning of  electrolyte and overheat will cause heating, smoking, deformation or burning of batteries. Never use the unit in an environment over 40℃, don’t charge the unit close to fire source or under direct ...

  • Page 4: Optical System

     Channel Protocol: 7 kinds of control channel mode. 2CH; 4CH; 6CH; 11CH; 32CH -8 Pixels; 64CH -16 Pixels; 128CH -32 Pixels;  Control Mode: DMX-512, auto, master-slave, music, infrared remote control, wireless DMX-512 and Mobile APP WIFI control.  Wireless Protocol: W-DMX Wireless DMX Specs ...

  • Page 5: Product Installation

    Custom color temperature settings. Built-in commonly used film and television shooting effects. With charging protection and current overload protection. Intuitive and convenient battery display function. The static power consumption of the control panel is 0.3W, and its efficiency will reach up to 97% during the process of high-power output, which realizes the function of eco-friendly operation.
  • Page 6  Wireless transmitter should connected to the DMX-512 controller.  Since CH4 MODE has 4 channels, address code with 4 increment increas ing p rogressively ( e.g., 1 , 5 ,9, 13 ...)  Every DMX address code can be reused as needed.
  • Page 7 Set the wireless DMX signal of the first light to the sending state (Master), and the wireless DMX  signal of other lights to the receiving state (Slave). When the Slave is set to DMX512 control mode, running auto effect or other static colors on the ...

  • Page 8: Operation Method

    Establish wireless communication between WIFI control of mobile phone and WIFI control of  lights according to 3.5.7.  Set the wireless DMX signal of the first light to the sending state (Master), and the wireless DMX signal of other lights to the receiving state (Slave). When the Slave is set to DMX512 control mode, running auto effect or other static colors on the ...

  • Page 9: Working Mode

    2.4G Wireless DMX Connection Method 3.2.1 Working mode 2.4G wireless DMX transceiver uses the W-DMX communication protocol which has two working modes： Transmit mode and Receive mode. Find【Set】menu and press【ENTER】 to enter system settings menu.  Press【UP/DOWN】key to select【Wireless 2.4g】to enter 2.4g wireless ...
  • Page 10 3.2. 2 Working mode  According to step 3.2.1 set the Slave to 【 Receive 】 mode.  Select 【 Reset 】 menu to reset wireless connection. At this time, the indicator light is white, indicating that the wireless module is not connected to transmit module and is ready to receive the paired signal.

  • Page 11: Menu Overview

    AUTO key is color change mode, press up and down key to adjust speed  STROBE key is in color strobe mode (32 types are optional), press up and down key to adjust speed.  FADE key is for color fading mode, press up and down key to adjust speed. ...
  • Page 12 Cyan Blue+W Green Purple Yellow+W Built in static Blue Warm White Cyan+W Color color mode White Red+W Purple+W Yellow Green+W Full Color 2800K，3000K，3200K，3500K，3800K，4000K，4500K，5000K， temperature 5600K，6000K，6500K，7000K，7500K，8000K，8500K，9000K， mode 9500K，10000K， On the phone, connect WIFI address "Led_XXX" and turn on the WIFI WIFI mode APP【LED LAMP】control DMX Channel 2CH/4CH/6CH/11CH/32CH/64CH/128CH...
  • Page 13 Factory Reset NO / YES YES：Restore factory settings Name MAGIC Info Version V1.0 DMX Address Settings (Dmx512) 3.5.1 Find【DMX Mode】menu and press【ENTER】to enter DMX address code setting.  Press【UP/DOWN】button to adjust parameters.  After setting the DMX address code, press【ENTER】to save the settings. ...
  • Page 14 Press【 UP/DOWN】 button to select sound effect, sound control sensitivity or color effect, press 【ENTER】  to save the settings. Static Color Settings (Static) 3.5.4 Find【Static】menu and press【ENTER】to enter static color setting.  Press【UP/DOWN】button to select【Dimmer】,【Strobe】,【Red】,【Green】,【Blue】or【White】.  Press【ENTER】to confirm menu and press【UP/DOWN】button to adjust parameters, then press 【ENTER ...
  • Page 15 Built-in【Red】,【Green】,【Blue】,【White】4 base colors with 0~255 brightness adjustment, can freely  customize the current color temperature according to your needs. Mobile APP Control Mode Settings (WIFI) 3.5.7 Find【WIFI】menu and press【ENTER】to turn on WIFI.  "Led_XXX" displayed on the screen is the WIFI address of the light fixture. ...
  • Page 16 Factory Settings (Factory Set) 3.5.9 Find【Factory】menu and press【ENTER】to enter factory setting.  Press【UP/DOWN】button to select corresponding function setting.   After setting, press【ENTER】to save the settings. Note: This the factory default setting, do not change it if unnecessary. Menu Lock Function (Menu Lock) 3.5.10 Press【ENTER】button to enter select 【ON】.

  • Page 17: Control Channel

    Control Channel DMX Channel Table 4.1.1----2CH 2CH Mode: Channel DMX Data Control function Detail description Overall dimmer Linear dimming from 0~100% NO FUNCTION 2800K 3000K 3200K 3500K 3800K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 7500K 8000K 8500K 9000K 9500K 10000K 4.1.2----4CH 4CH Mode: Channel...
  • Page 18 255 Overall dimmer Linear dimming from 0~100% NO FUNCTION Strobe From slow to fast(1HZ-20HZ) 255 Red dimmer Linear dimming from 0~100% 255 Green dimmer Linear dimming from 0~100% 255 Blue dimmer Linear dimming from 0~100% White dimmer Linear dimming from 0~100% 4.1.4----11CH 11CH Mode: Channel DMX Data...
  • Page 19 … … …… … Red 8 dimmer Linear dimming from 0~100% Green 8 dimmer Linear dimming from 0~100% Blue 8 dimmer Linear dimming from 0~100% White 8 dimmer Linear dimming from 0~100% 4.1.6----64CH 64CH Mode: Channel DMX Data Control function Detail description Red 1 dimmer Linear dimming from 0~100%...

  • Page 20: Product Maintenance

    Maintenance Product Maintenance To prolong the life of the product, it is very important to do maintenance work. The environment is hash outdoors, or if the product is idle for a long time, damp, smoke or particularly dirty surroundings can cause greater accumulation of dirt on its LED lens cover, fan vents and housing.
