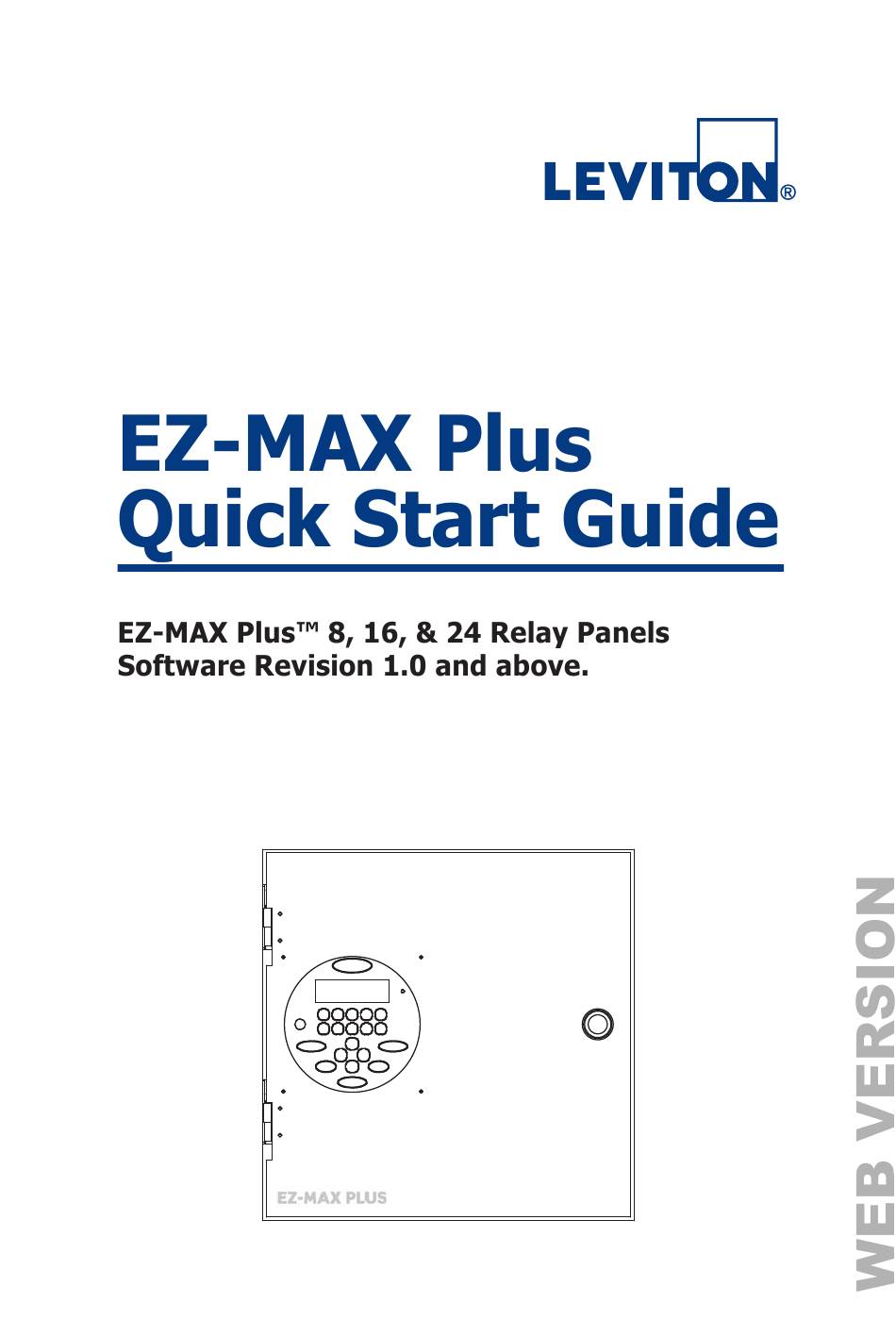

Leviton EZ-MAX Plus 8 Quick Start Manual
  1. Manuals
  2. Brands
  3. Leviton Manuals
  4. Relays
  5. EZ-MAX Plus 8
  6. Quick start manual
Leviton EZ-MAX Plus 8 Quick Start Manual

Leviton EZ-MAX Plus 8 Quick Start Manual

Relay panels
Hide thumbs Also See for EZ-MAX Plus 8:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ-MAX Plus 8 and is the answer not in the manual?

Questions and answers

Related Manuals for Leviton EZ-MAX Plus 8

Summary of Contents for Leviton EZ-MAX Plus 8

  • Page 2 EZ-MAX Plus QuickStart.book Page 2 Thursday, January 22, 2009 1:55 PM Overview This EZ-MAX Plus Quick Start Guide assumes that you have already installed your EZ-MAX Plus relay cabinet. This guide also assumes you have read and familiarized yourself with the EZ-MAX Plus Programmer Guide.
  • Page 3 EZ-MAX Plus QuickStart.book Page 3 Thursday, January 22, 2009 1:55 PM EZ-MAX Plus Quick Start Guide Page 3...

  • Page 4: Setting The Time And Date

    EZ-MAX Plus QuickStart.book Page 4 Thursday, January 22, 2009 1:55 PM Setting the Time and Date SET TI ME You can change the following fields in the Time display: 12 or 24-hour clock • Hours • Minutes • AM or PM •...
  • Page 5 EZ-MAX Plus QuickStart.book Page 5 Thursday, January 22, 2009 1:55 PM Setting the Time and Date SELECT/ SAVE Step 5: Press when you have finished editing the fields. SET DATE Step 1: Press the MENU button. Step 2: Press until the display reads as below, then press SELECT/ SAVE.
  • Page 6 EZ-MAX Plus QuickStart.book Page 6 Thursday, January 22, 2009 1:55 PM MENU Step 1: Press the button. Step 2: Press until the display reads as below, then press SELECT/ SAVE. MAIN MENU SELECT SET TIME/DATE Step 3: Press until the display reads as below, then press SELECT/ SAVE MAIN MENU SELECT SET ASTRO CLOCK...
  • Page 7 EZ-MAX Plus QuickStart.book Page 7 Thursday, January 22, 2009 1:55 PM Setting the Time and Date Set Astro Clock by Longitude/ Latitude Make sure you have the following information for your city before you begin: current sunrise time, current sunset time, latitude. This information can be found at www.srrb.noaa.gov/ highlights/ sunrise/ sunrise.html.
  • Page 8 EZ-MAX Plus QuickStart.book Page 8 Thursday, January 22, 2009 1:55 PM will flash. Use the key to navigate between fields. Use the numeric keypad to enter in the values. SR=07:01A SS=08:25P LAT=45 SELECT/ SAVE Step 6: Press the button when you have finished editing the fields.
  • Page 9 EZ-MAX Plus QuickStart.book Page 9 Thursday, January 22, 2009 1:55 PM Setting the Time and Date EZ-MAX Plus Quick Start Guide Page 9...
  • Page 10 EZ-MAX Plus QuickStart.book Page 10 Thursday, January 22, 2009 1:55 PM Globally Configuring Relays SET ALL RELAYS Use the SET ALL RELAYS menu item to configure all of your relays at once. Changing settings in this menu will change the relay type for ALL relays in the cabinet, even if you have already specified a different relay type to an individual relay.
  • Page 11 EZ-MAX Plus QuickStart.book Page 11 Thursday, January 22, 2009 1:55 PM Globally Configuring Relays Step 5: Press to toggle BLI NK WARN to . Press SELECT/ SAVE. ALL RELAYS BLINK WARN? OFF, ON Step 6: Press to toggle EMERGENCY to SELECT/ SAVE.
  • Page 12 EZ-MAX Plus QuickStart.book Page 12 Thursday, January 22, 2009 1:55 PM Configuring Blink Warn Parameters Use the Global Timers menu to set your global Blink Warn Parameters and the Timer setting for your Momentary Timed switches. Blink Warn Parameters The blink warn feature is used to issue a warning just before the relay cabinet turns off the lights.
  • Page 13 EZ-MAX Plus QuickStart.book Page 13 Thursday, January 22, 2009 1:55 PM Configuring Blink Warn Parameters MENU Step 1: Press the button. Step 2: I f you aren’t at the default screen, press until the display reads as shown below, then press SELECT/ SAVE.
  • Page 14 EZ-MAX Plus QuickStart.book Page 14 Thursday, January 22, 2009 1:55 PM Step 7: Press to adjust the TI MER setting for Momentary Timed switches, or use the keypad to enter a specific time. Press SELECT/ SAVE. TIME SWITCH TIMER: All other programming functions will now use the above global settings when setting a Blink Warn or a Momentary Timed switch.
  • Page 15 EZ-MAX Plus QuickStart.book Page 15 Thursday, January 22, 2009 1:55 PM Configuring Blink Warn Parameters EZ-MAX Plus Quick Start Guide Page 15...

  • Page 16: New Event

    EZ-MAX Plus QuickStart.book Page 16 Thursday, January 22, 2009 1:55 PM The Scheduler SCHEDULER Use the SCHEDULER menu to create, edit, or delete an event. An “event” is defined as any action that occurs at a specific time. NEW EVENT You can control your lighting based on an event schedule that you create.
  • Page 17 EZ-MAX Plus QuickStart.book Page 17 Thursday, January 22, 2009 1:55 PM The Scheduler Step 5: Press to toggle between TI ME OF DAY and SELECT/ SAVE. SUNRI SE/ SUNSET, then press ENTER TIME TYPE SUNRISE/SUNSET Step 6: Press to toggle between SR+ and SS-. Use the numeric keypad to enter the time of the event, and press SELECT/ SAVE when you have finished editing the...
  • Page 18 EZ-MAX Plus QuickStart.book Page 18 Thursday, January 22, 2009 1:55 PM Step 9: The example below is for a relay. Press toggle between the three choices until you get to RELAY , and press SELECT/ SAVE SELECT RLY MODE RELAY ON Assign the relays that will be associated with this event.

  • Page 19: Delete Event

    EZ-MAX Plus QuickStart.book Page 19 Thursday, January 22, 2009 1:55 PM The Scheduler Step 3: Press until the display reads CHANGE EVNT TI ME, SELECT/ SAVE. then press SCHEDULER CHANGE EVNT TIME Step 4: Use the numeric keypad to enter the event number you want to modify.
  • Page 20 EZ-MAX Plus QuickStart.book Page 20 Thursday, January 22, 2009 1:55 PM MENU Step 1: Press the button. Step 2: Press until the display reads as below, then SELECT/ SAVE. press MAIN MENU SELECT SCHEDULER Step 3: Press until the display reads DELETE EVENT, then SELECT/ SAVE.

  • Page 21: Edi T Event

    EZ-MAX Plus QuickStart.book Page 21 Thursday, January 22, 2009 1:55 PM The Scheduler EDI T EVENT MENU Step 1: Press the button Step 2: Press until the display reads as below, then SELECT/ SAVE. press MAIN MENU SELECT SCHEDULER Step 3: Press until the display reads EDI T EVENT, then SELECT/ SAVE.
  • Page 22 EZ-MAX Plus QuickStart.book Page 22 Thursday, January 22, 2009 1:55 PM Select/ Save when you have finished assigning all relays. EZ-MAX Plus Quick Start Guide Page 22...
  • Page 23 EZ-MAX Plus QuickStart.book Page 23 Thursday, January 22, 2009 1:55 PM The Scheduler EZ-MAX Plus Quick Start Guide Page 23...

  • Page 24: Configuring I Nputs

    EZ-MAX Plus QuickStart.book Page 24 Thursday, January 22, 2009 1:55 PM Configuring I nputs CONFI G I NPUTS LV I NPUT—Sw itch MENU Step 1: Press the button. Step 2: Press until the display reads as below, then SELECT/ SAVE. press MAIN MENU SELECT CONFIG INPUTS...
  • Page 25 EZ-MAX Plus QuickStart.book Page 25 Thursday, January 22, 2009 1:55 PM Configuring Inputs Step 5: Press to choose a behavior for this particular Select/ Save. button. Press LV SWITCH TYPE MOMENTARY Step 6: Assign a relay (or multiple relays) to the switch. Press to cycle through the relay numbers, or use the numeric keypad to enter a relay number.
  • Page 26 EZ-MAX Plus QuickStart.book Page 26 Thursday, January 22, 2009 1:55 PM Step 3: Press to navigate to LV I NPUT, and press Select/ Save INPUT TYPE LV INPUT Step 4: Use the numeric keypad to enter the input number for the occupancy sensor.
  • Page 27 EZ-MAX Plus QuickStart.book Page 27 Thursday, January 22, 2009 1:55 PM Configuring Inputs to navigate to the next field and toggle I GNORE to if you want to assign the relay. ASSIGN RELAYS RELAY# 3: Step 7: Continue to use the to move between the RELAY field and the behavior field, and cycle through all relays until you have set all of them to YES or I GNORE.
  • Page 28 EZ-MAX Plus QuickStart.book Page 28 Thursday, January 22, 2009 1:55 PM and press to change the field to PHOTOCELL. Select/ Save. Press SELECT INPUT 2: PHOTOCELL The next step is to choose the behavior of your photocell. I NTERI OR Step 5: Press to select the behavior EXTERI OR...
  • Page 29 EZ-MAX Plus QuickStart.book Page 29 Thursday, January 22, 2009 1:55 PM Configuring Inputs On Voltage must be a voltage between 1-10 VDC, AND must • be less than the OFF voltage. OFF Voltage must be a voltage between 1-10 VDC, AND must •...

  • Page 30: Digital Input

    EZ-MAX Plus QuickStart.book Page 30 Thursday, January 22, 2009 1:55 PM use the auto-assign feature, your digital switch addresses will be displayed automatically when you get to the SELECT SWI TCH step. MENU Step 1: Press the button. Step 2: Press until the display reads as below, then SELECT/ SAVE.
  • Page 31 EZ-MAX Plus QuickStart.book Page 31 Thursday, January 22, 2009 1:55 PM Configuring Inputs Step 7: Assign the switch to a particular relay. Use the numeric keypad to enter a relay number. Press to navigate to the next field and toggle I GNORE to if you want to assign the relay.
  • Page 32 EZ-MAX Plus QuickStart.book Page 32 Thursday, January 22, 2009 1:55 PM Quick Codes for 101 Major Cities Albany, NY 26 Chattanooga. TN Albuquerque, NM 27 Cheyenne, WY Allentown, PA 28 Chicago, I L Anchorage, AK 29 Cincinnati, OH Atlanta, GA 30 Cleveland, OH Atlantic City, NJ 31 Columbus, OH...
  • Page 33 EZ-MAX Plus QuickStart.book Page 33 Thursday, January 22, 2009 1:55 PM Quick Codes for 101 Major Cities 51 I owa City, I A 79 Providence, RI 52 Jackson, MS 80 Reno, NV 53 Jacksonville, FL 81 Rochester, NY 54 Kansas City, MO 82 Sacramento, CA 55 Las Vegas, NV 83 Salt Lake City, UT...

  • Page 34: Warranty Information

    F .O.B. factory. Leviton is not responsible for removing or replacing equipment on the job site, and will not honor charges for such work. Leviton will not be responsible for any loss of use time or subsequent damages should...
  • Page 35 NOTES...
  • Page 36 NOTES...
  • Page 37 NOTES...
  • Page 38 NOTES...
  • Page 39 NOTES...
  • Page 40 NOTES...
  • Page 41 NOTES...
  • Page 42 NOTES...
  • Page 43 NOTES...
  • Page 44 NOTES...
  • Page 45 NOTES...
  • Page 46 NOTES...
  • Page 47 NOTES...
  • Page 48 NOTES...
  • Page 49 NOTES...
  • Page 50 Customer Service T FAX: 1-503-404-5600 Tech Line: 1-800-959-6004 Leviton Manufacturing Co., I nc. 201 North Service Road, Melivlle, N.Y. 11747 FAX: 1-800-832-9538 Visit Leviton’s Web site at http:/ / www.leviton.com © 2010 Leviton Manufacturing Co., I nc. All Rights Reserved PK-93783-10-00-0B...
