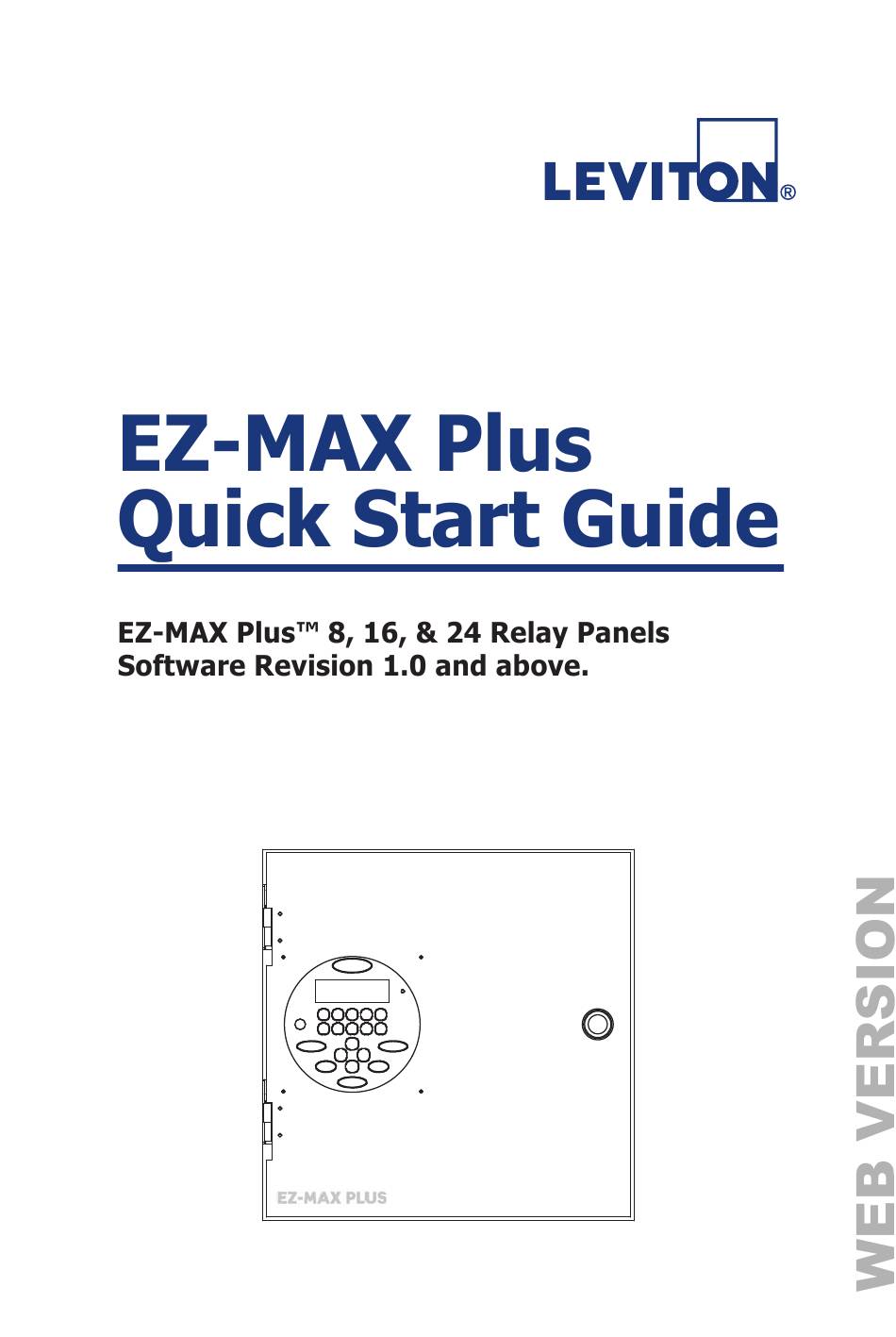

Leviton EZ-MAX Plus 16 Quick Start Manual

Leviton EZ-MAX Plus 16 Quick Start Manual

Relay panels
Hide thumbs Also See for EZ-MAX Plus 16:

Advertisement

Quick Links

Download this manual See also: Installation Manual

Advertisement

loading

Related Manuals for Leviton EZ-MAX Plus 16

Summary of Contents for Leviton EZ-MAX Plus 16

  • Page 2 EZ-MAX Plus QuickStart.book Page 2 Thursday, January 22, 2009 1:55 PM Overview This EZ-MAX Plus Quick Start Guide assumes that you have already installed your EZ-MAX Plus relay cabinet. This guide also assumes you have read and familiarized yourself with the EZ-MAX Plus Programmer Guide.
  • Page 3 EZ-MAX Plus QuickStart.book Page 3 Thursday, January 22, 2009 1:55 PM EZ-MAX Plus Quick Start Guide Page 3...
  • Page 4 EZ-MAX Plus QuickStart.book Page 4 Thursday, January 22, 2009 1:55 PM Setting the Time and Date SET TIME You can change the following fields in the Time display: 12 or 24-hour clock • Hours • Minutes • AM or PM •...
  • Page 5 EZ-MAX Plus QuickStart.book Page 5 Thursday, January 22, 2009 1:55 PM Setting the Time and Date Press SELECT/SAVE when you have finished editing the Step 5: fields. SET DATE Press the MENU button. Step 1: Press until the display reads as below, then press Step 2: SELECT/SAVE.
  • Page 6 EZ-MAX Plus QuickStart.book Page 6 Thursday, January 22, 2009 1:55 PM Press the MENU button. Step 1: Press until the display reads as below, then press Step 2: SELECT/SAVE. MAIN MENU SELECT SET TIME/DATE Press until the display reads as below, then press Step 3: SELECT/SAVE.
  • Page 7 EZ-MAX Plus QuickStart.book Page 7 Thursday, January 22, 2009 1:55 PM Setting the Time and Date Set Astro Clock by Longitude/Latitude Make sure you have the following information for your city before you begin: current sunrise time, current sunset time, latitude. This information can be found at www.srrb.noaa.gov/highlights/ sunrise/sunrise.html.
  • Page 8 EZ-MAX Plus QuickStart.book Page 8 Thursday, January 22, 2009 1:55 PM will flash. Use the key to navigate between fields. Use the numeric keypad to enter in the values. SR=07:01A SS=08:25P LAT=45 Press the SELECT/SAVE button when you have finished Step 6: editing the fields.
  • Page 9 EZ-MAX Plus QuickStart.book Page 9 Thursday, January 22, 2009 1:55 PM Setting the Time and Date EZ-MAX Plus Quick Start Guide Page 9...
  • Page 10 EZ-MAX Plus QuickStart.book Page 10 Thursday, January 22, 2009 1:55 PM Globally Configuring Relays SET ALL RELAYS Use the SET ALL RELAYS menu item to configure all of your relays at once. Changing settings in this menu will change the relay type for ALL relays in the cabinet, even if you have already specified a different relay type to an individual relay.
  • Page 11 EZ-MAX Plus QuickStart.book Page 11 Thursday, January 22, 2009 1:55 PM Globally Configuring Relays Press to toggle BLINK WARN to Y or N. Press Step 5: SELECT/SAVE. ALL RELAYS BLINK WARN? Press to toggle EMERGENCY to OFF, ON or Step 6: NC.
  • Page 12 EZ-MAX Plus QuickStart.book Page 12 Thursday, January 22, 2009 1:55 PM Configuring Blink Warn Parameters Use the Global Timers menu to set your global Blink Warn Parameters and the Timer setting for your Momentary Timed switches. Blink Warn Parameters The blink warn feature is used to issue a warning just before the relay cabinet turns off the lights.
  • Page 13 EZ-MAX Plus QuickStart.book Page 13 Thursday, January 22, 2009 1:55 PM Configuring Blink Warn Parameters Press the MENU button. Step 1: If you aren’t at the default screen, press until Step 2: the display reads as shown below, then press SELECT/SAVE.
  • Page 14 EZ-MAX Plus QuickStart.book Page 14 Thursday, January 22, 2009 1:55 PM Press to adjust the TIMER setting for Step 7: Momentary Timed switches, or use the keypad to enter a specific time. Press SELECT/SAVE. TIME SWITCH TIMER: All other programming functions will now use the above global settings when setting a Blink Warn or a Momentary Timed switch.
  • Page 15 EZ-MAX Plus QuickStart.book Page 15 Thursday, January 22, 2009 1:55 PM Configuring Blink Warn Parameters EZ-MAX Plus Quick Start Guide Page 15...

  • Page 16: New Event

    EZ-MAX Plus QuickStart.book Page 16 Thursday, January 22, 2009 1:55 PM The Scheduler SCHEDULER Use the SCHEDULER menu to create, edit, or delete an event. An “event” is defined as any action that occurs at a specific time. NEW EVENT You can control your lighting based on an event schedule that you create.
  • Page 17 EZ-MAX Plus QuickStart.book Page 17 Thursday, January 22, 2009 1:55 PM The Scheduler Press to toggle between TIME OF DAY and Step 5: SUNRISE/SUNSET, then press SELECT/SAVE. ENTER TIME TYPE SUNRISE/SUNSET Press to toggle between SR+ and SS-. Use the Step 6: numeric keypad to enter the time of the event, and press SELECT/SAVE when you have finished editing the...
  • Page 18 EZ-MAX Plus QuickStart.book Page 18 Thursday, January 22, 2009 1:55 PM The example below is for a relay. Press Step 9: toggle between the three choices until you get to RELAY, and press SELECT/SAVE. SELECT RLY MODE RELAY ON Assign the relays that will be associated with this event. If there are 16 relays in your cabinet you will have to set each one to YES or IGNORE, depending on whether or not you want the relay to respond.

  • Page 19: Delete Event

    EZ-MAX Plus QuickStart.book Page 19 Thursday, January 22, 2009 1:55 PM The Scheduler Press until the display reads CHANGE EVNT TIME, Step 3: then press SELECT/SAVE. SCHEDULER CHANGE EVNT TIME Use the numeric keypad to enter the event number you Step 4: want to modify.
  • Page 20 EZ-MAX Plus QuickStart.book Page 20 Thursday, January 22, 2009 1:55 PM Press the MENU button. Step 1: Press until the display reads as below, then Step 2: press SELECT/SAVE. MAIN MENU SELECT SCHEDULER Press until the display reads DELETE EVENT, then Step 3: press SELECT/SAVE.

  • Page 21: Edit Event

    EZ-MAX Plus QuickStart.book Page 21 Thursday, January 22, 2009 1:55 PM The Scheduler EDIT EVENT Press the MENU button Step 1: Press until the display reads as below, then Step 2: press SELECT/SAVE. MAIN MENU SELECT SCHEDULER Press until the display reads EDIT EVENT, then Step 3: press SELECT/SAVE.
  • Page 22 EZ-MAX Plus QuickStart.book Page 22 Thursday, January 22, 2009 1:55 PM Select/Save when you have finished assigning all relays. EZ-MAX Plus Quick Start Guide Page 22...
  • Page 23 EZ-MAX Plus QuickStart.book Page 23 Thursday, January 22, 2009 1:55 PM The Scheduler EZ-MAX Plus Quick Start Guide Page 23...
  • Page 24 EZ-MAX Plus QuickStart.book Page 24 Thursday, January 22, 2009 1:55 PM Configuring Inputs CONFIG INPUTS LV INPUT—Switch Press the MENU button. Step 1: Press until the display reads as below, then Step 2: press SELECT/SAVE. MAIN MENU SELECT CONFIG INPUTS Press to navigate to LV INPUT, and press Step 3:...
  • Page 25 EZ-MAX Plus QuickStart.book Page 25 Thursday, January 22, 2009 1:55 PM Configuring Inputs Press to choose a behavior for this particular Step 5: button. Press Select/Save. LV SWITCH TYPE MOMENTARY Assign a relay (or multiple relays) to the switch. Press Step 6: to cycle through the relay numbers, or use the numeric keypad to enter a relay number.
  • Page 26 EZ-MAX Plus QuickStart.book Page 26 Thursday, January 22, 2009 1:55 PM Press to navigate to LV INPUT, and press Step 3: Select/Save. INPUT TYPE LV INPUT Use the numeric keypad to enter the input number for Step 4: the occupancy sensor. Press to navigate to the next field, and press to change the field to OCC.
  • Page 27 EZ-MAX Plus QuickStart.book Page 27 Thursday, January 22, 2009 1:55 PM Configuring Inputs to navigate to the next field and toggle IGNORE to YES if you want to assign the relay. ASSIGN RELAYS RELAY# 3: Continue to use the to move between the RELAY Step 7: field and the behavior field, and cycle through all relays until you have set all of them to YES or IGNORE.
  • Page 28 EZ-MAX Plus QuickStart.book Page 28 Thursday, January 22, 2009 1:55 PM and press to change the field to PHOTOCELL. Press Select/Save. SELECT INPUT 2: PHOTOCELL The next step is to choose the behavior of your photocell. Press to select the behavior INTERIOR or Step 5: EXTERIOR, and press Select/Save.
  • Page 29 EZ-MAX Plus QuickStart.book Page 29 Thursday, January 22, 2009 1:55 PM Configuring Inputs On Voltage must be a voltage between 1-10 VDC, AND must • be less than the OFF voltage. OFF Voltage must be a voltage between 1-10 VDC, AND must •...
  • Page 30 EZ-MAX Plus QuickStart.book Page 30 Thursday, January 22, 2009 1:55 PM use the auto-assign feature, your digital switch addresses will be displayed automatically when you get to the SELECT SWITCH step. Press the MENU button. Step 1: Press until the display reads as below, then Step 2: press SELECT/SAVE.
  • Page 31 EZ-MAX Plus QuickStart.book Page 31 Thursday, January 22, 2009 1:55 PM Configuring Inputs Assign the switch to a particular relay. Use the numeric Step 7: keypad to enter a relay number. Press to navigate to the next field and toggle IGNORE to YES if you want to assign the relay.
  • Page 32 EZ-MAX Plus QuickStart.book Page 32 Thursday, January 22, 2009 1:55 PM Quick Codes for 101 Major Cities Albany, NY Chattanooga. TN Albuquerque, NM Cheyenne, WY Allentown, PA Chicago, IL Anchorage, AK Cincinnati, OH Atlanta, GA Cleveland, OH Atlantic City, NJ Columbus, OH Augusta, GA Dallas, TX...
  • Page 33 EZ-MAX Plus QuickStart.book Page 33 Thursday, January 22, 2009 1:55 PM Quick Codes for 101 Major Cities Iowa City, IA Providence, RI Jackson, MS Reno, NV Jacksonville, FL Rochester, NY Kansas City, MO Sacramento, CA Las Vegas, NV Salt Lake City, UT Little Rock, AR San Diego, CA Los Angeles, CA...
  • Page 34 F.O.B. factory. Leviton is not responsible for removing or replacing equipment on the job site, and will not honor charges for such work. Leviton will not be responsible for any loss of use time or subsequent damages should...
  • Page 35 NOTES...
  • Page 36 NOTES...
  • Page 37 NOTES...
  • Page 38 NOTES...
  • Page 39 NOTES...
  • Page 40 NOTES...
  • Page 41 NOTES...
  • Page 42 NOTES...
  • Page 43 NOTES...
  • Page 44 NOTES...
  • Page 45 NOTES...
  • Page 46 NOTES...
  • Page 47 NOTES...
  • Page 48 NOTES...
  • Page 49 NOTES...
  • Page 50 20497 SW Teton Avenue, Tualatin, OR 97062 Customer Service T FAX: 1-503-404-5600 Tech Line: 1-800-959-6004 Leviton Manufacturing Co., Inc. 201 North Service Road, Melivlle, N.Y. 11747 FAX: 1-800-832-9538 Visit Leviton’s Web site at http://www.leviton.com © 2010 Leviton Manufacturing Co., Inc. All Rights Reserved PK-93783-10-00-0B...
