Video • Data • Power
Passive UTP Transceiver Hub
with Integral Camera Power
Installation Guide
Models Include:

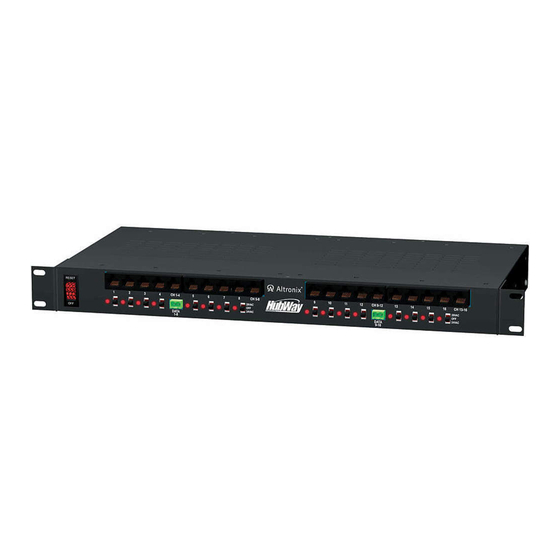

HubWay8D
- UL Listed eight (8) Channel Passive UTP
Transceiver Hub with Integral Camera Power
HubWay82D
- UL Listed eight (8) Channel Passive UTP
Transceiver Hub with Integral Camera Power
- Includes eight (8) UL Listed Accessory
HubWayAv Video Balun/Combiners
HubWay83D
- UL Listed eight (8) Channel Passive UTP
Transceiver Hub with Integral Camera Power
- Includes eight (8) UL Listed Accessory
HubWayDv Video Balun/Combiners
Rev. 032108
HubWay16D
- UL Listed sixteen (16) Channel Passive UTP
Transceiver Hub with Integral Camera Power
HubWay162D
- UL Listed sixteen (16) Channel Passive UTP
Transceiver Hub with Integral Camera Power
- Includes sixteen (16) UL Listed Accessory
HubWayAv Video Balun/Combiners
HubWay163D
- UL Listed sixteen (16) Channel Passive UTP
Transceiver Hub with Integral Camera Power
- Includes sixteen (16) UL Listed Accessory
HubWayDv Video Balun/Combiners
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix HubWay8D
Summary of Contents for Altronix HubWay8D
-
Page 1: Installation Guide
Video • Data • Power Passive UTP Transceiver Hub with Integral Camera Power Installation Guide Models Include: HubWay8D HubWay16D - UL Listed eight (8) Channel Passive UTP - UL Listed sixteen (16) Channel Passive UTP Transceiver Hub with Integral Camera Power... -
Page 2: Common Specifications
Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay8D/16D. In addition, the HubSat4D provides power to these cameras locally to eliminate the pos- sibility of voltage drop associated with long cable runs. -
Page 3: Installation Instructions
Plug the RJ45 connector at one end of the structured cable into the RJ45 jack marked [Channel 1] of the HubWay8D/16D (Fig. 1a, pg. 4). Plug the RJ45 connector at the opposite end of the structured cable into the RJ45 jack of the Video Balun/Combiner located at camera 1. - Page 4 + -- - 4 - HubWay Passive Unit...
-
Page 5: Hubwayav, Hubwayav2, Hubwaydv, And Hubwaydvi Video Balun/Combiners
HubWayAv, HubWayAv2, HubWayDv, and HubWayDvi Video Balun/Combiners: Input Voltage Altronix from HubWay Model Number Unit Output Voltage to Camera Camera Type Power LED HubWayAv *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC Green HubWayAv2 *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC HubWayDv *24VAC/28VAC 12VDC 12VDC cameras HubWayDvi *24VAC/28VAC 12VDC electronically isolated 12VDC cameras without isolation Red *Based on camera load and structured cable length. -
Page 6: Typical Applications
Typical Applications: Fig. 4 Head End Equipment (DVR) RS485 Monitor Video Data Rear AC POWER CH 1-4 CH 5-8 28VAC 24VAC + DATA - Front CAT-5 Video Data Four (4) Video Video Video Video (CAT-5) signals on a Power Data Data Power single CAT-5... - Page 7 1U EIA 19” Rack Mount Chassis Dimensions (H x W x D approximate): 1.625” x 19.125” x 8.5” (41.3mm x 485.8mm x 215.9mm) REAR 1.625” (41.275mm) AC POWER TOP & BOTTOM 17.125” (434.97mm) 8.5” (215.9mm) FRONT CH 1-4 CH 5-8 CH 9-12 CH 13-16 28VAC...
-
Page 8: Rack Mount Installation
Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIHubWay8D/HubWay16D J15N MEMBER - 8 -...
