2. Short overview

2. Short overview

2.1 Overview

EN
7

2.2 Description

The CPH6200 hand-held pressure indicator can be used as a calibration instrument and
also for any application which requires accurate pressure measurement.
For the hand-held pressure indicator, model CPT6200 reference pressure sensors
with measuring ranges of up to 1,000 bar [14,500 psi] are available. It automatically
recognises the measuring range of the connected pressure sensor and guarantees highly
accurate pressure measurement.

2.3 Scope of delivery

Hand-held pressure indicator model CPH6200
■
9 V battery
■
One sensor connection cable per channel, approx. 1.1 m [3.3 ft]
■
Calibration certificate for sensors
■
Reference pressure sensor model CPT6200
■
Cross-check scope of delivery with delivery note.

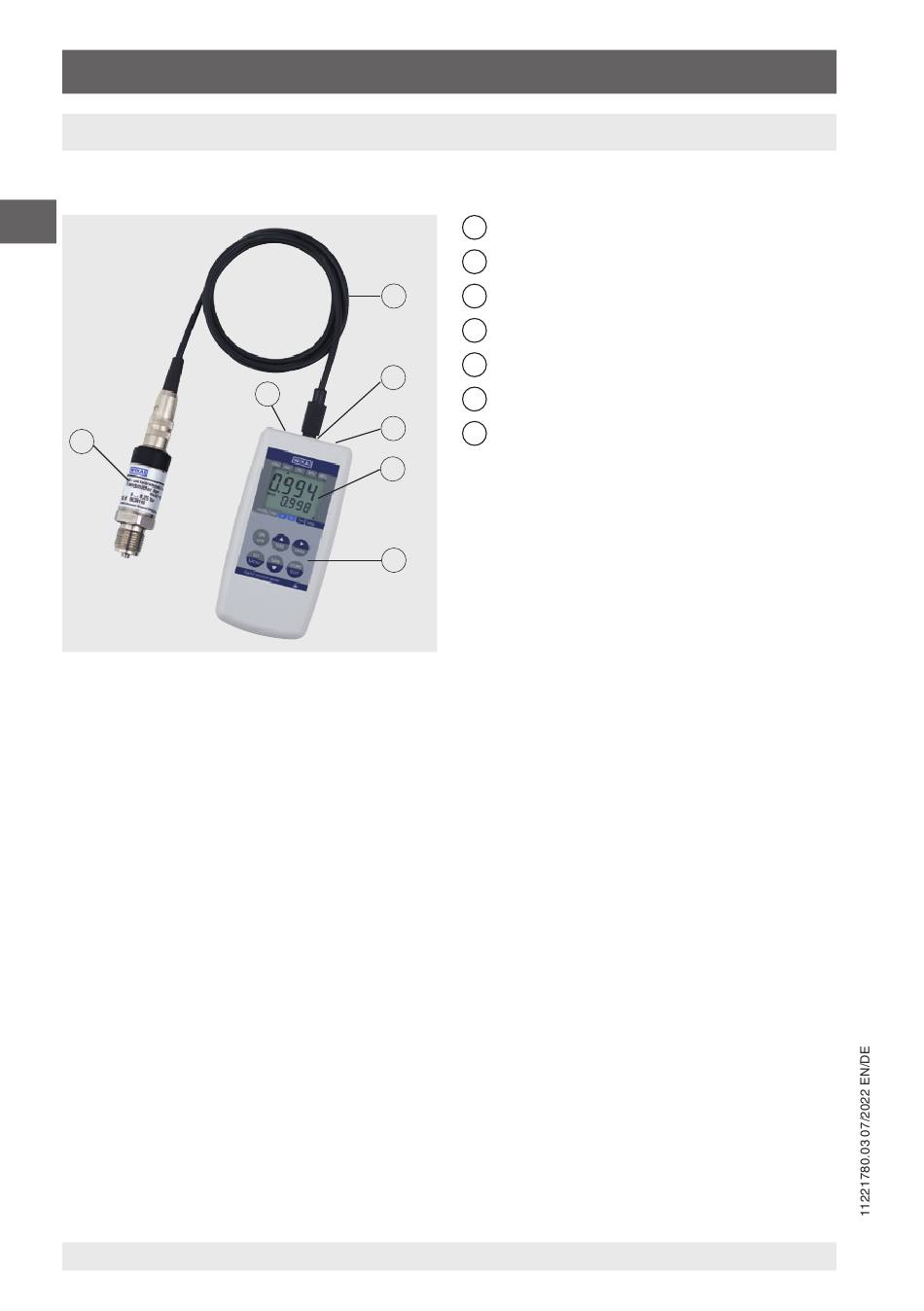

6
1
3
2
4
5
6
Sensor connection cable
1
Pressure connection channel 1
2
Pressure connection channel 2
3
Interface connector
4
Display
5
Control element
6
Reference pressure sensor model
7
CPT6200
WIKA operating instructions, model CPH6200
