4. Design and function
The female connectors for the connection of the interface can also be used for the
function of analogue output. For this, a corresponding analogue connection cable must
be used.
The "interface" or "analogue output" operating mode must be configured via
menu and affects battery life!

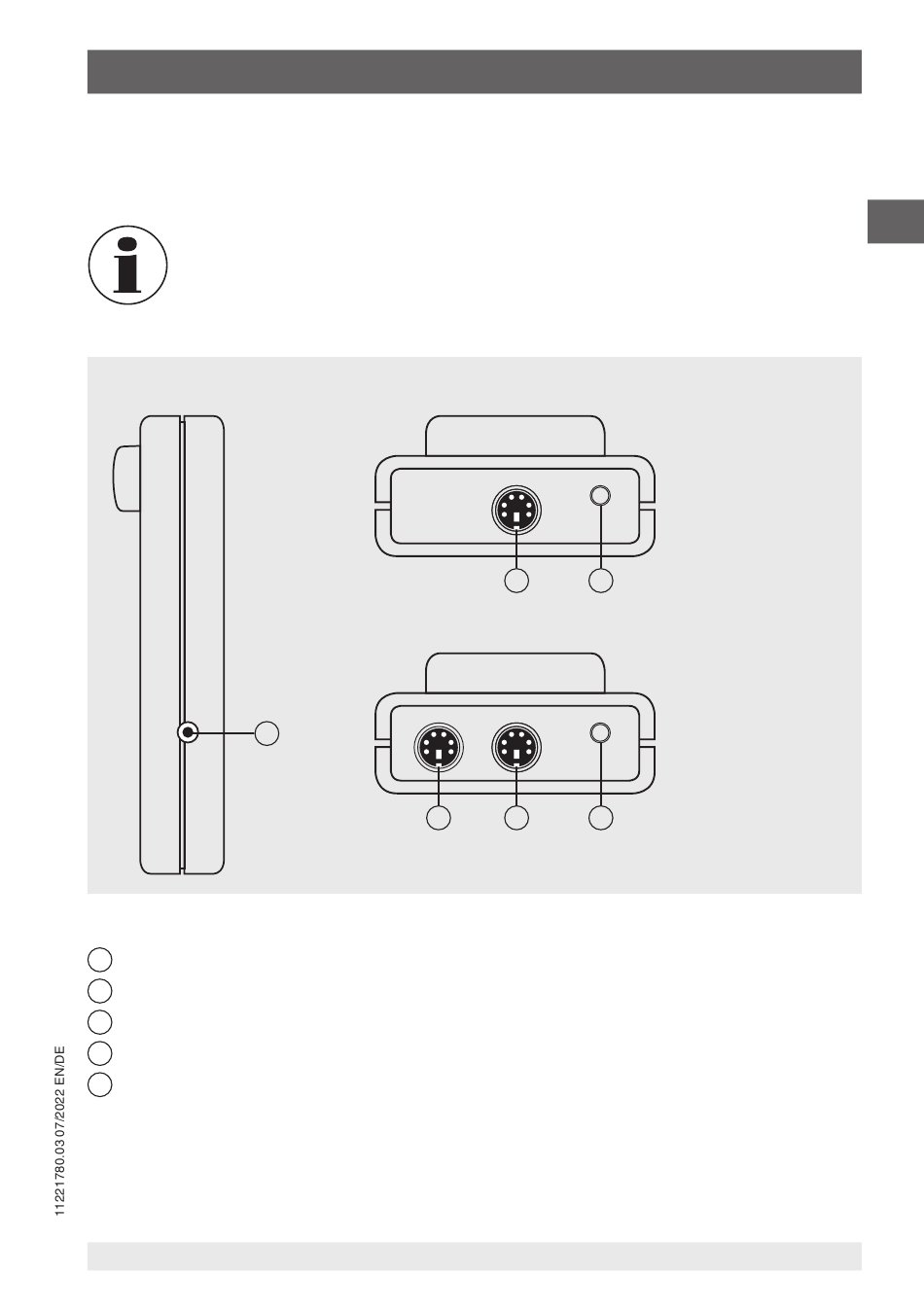

Side view
(left)
5
Interface connector or optional analogue output
1
Pressure connection channel 1 (only with CPH6200-S1)
2
Pressure connection channel 2 (only with CPH6200-S2)
3
Pressure connection channel 1 (only with CPH6200-S2)
4
Connection of power supply unit for voltage supply
5
WIKA operating instructions, model CPH6200
Model CPH6200-S1
2 1
Model CPH6200-S2
4 3 1
