5. Commissioning, operation

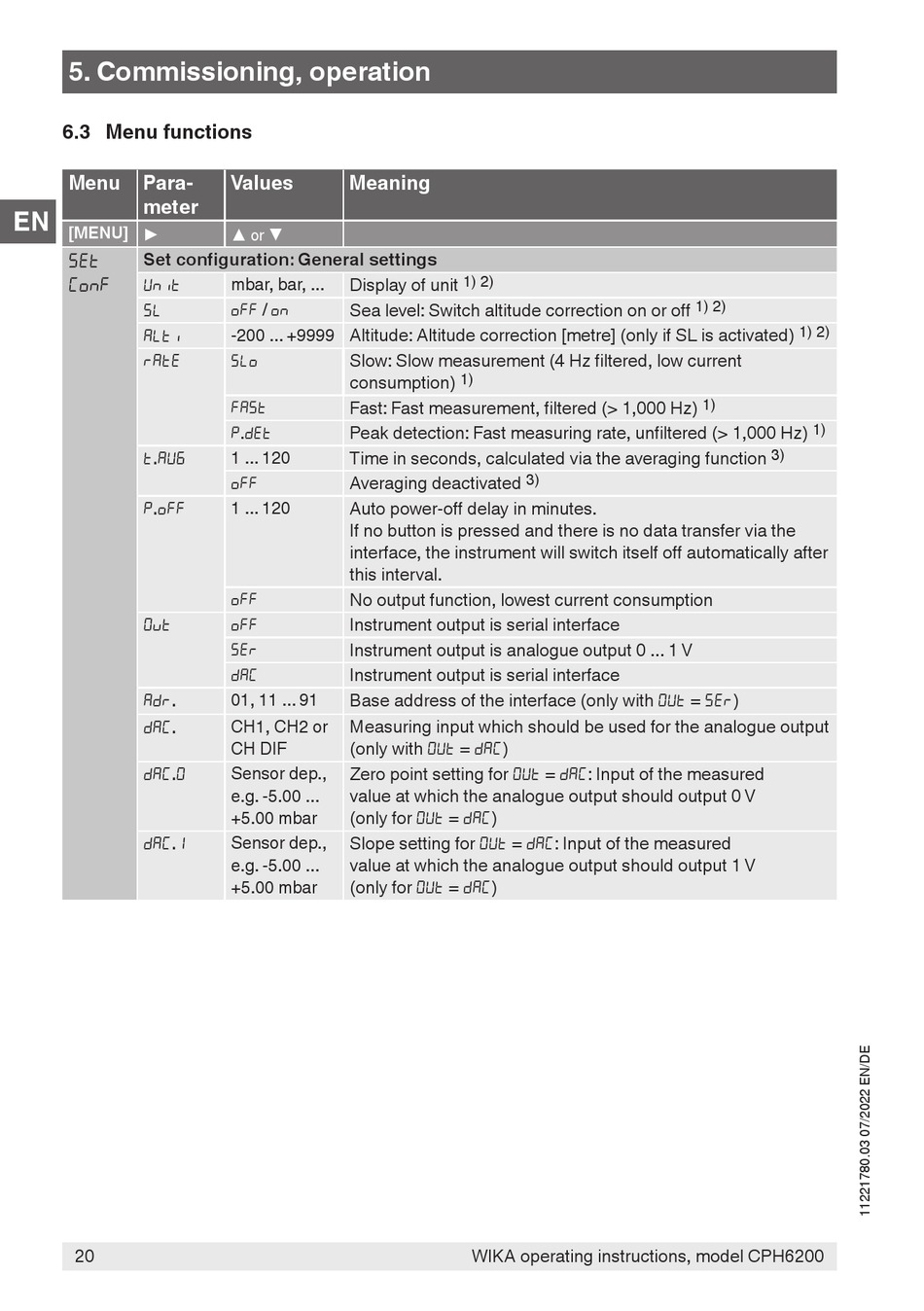

6.3 Menu functions

Menu Para-
meter
EN
▶
[MENU]
Set configuration: General settings
SEt
ConF
Unit
SL
ALti
rAtE
t.AU6
P.oFF
Ovt
Adr.
dAC.
dAC.0
dAC.1
20
Values Meaning
▲ ▼
or
Display of unit
mbar, bar, ...
Sea level: Switch altitude correction on or off
oFF / on
-200 ... +9999 Altitude: Altitude correction [metre] (only if SL is activated)
Slow: Slow measurement (4 Hz filtered, low current
SLo
consumption)
Fast: Fast measurement, filtered (> 1,000 Hz)
FASt
P . dEt Peak detection: Fast measuring rate, unfiltered (> 1,000 Hz)
1 ... 120 Time in seconds, calculated via the averaging function
Averaging deactivated
oFF
Auto power-off delay in minutes.
1 ... 120
If no button is pressed and there is no data transfer via the
interface, the instrument will switch itself off automatically after
this interval.
No output function, lowest current consumption
oFF
Instrument output is serial interface
oFF
Instrument output is analogue output 0 ... 1 V
SEr
Instrument output is serial interface
dAC
01, 11 ... 91 Base address of the interface (only with Out = SEr)
CH1, CH2 or Measuring input which should be used for the analogue output
CH DIF (only with Out = dAC)
Sensor dep., Zero point setting for Out = dAC: Input of the measured
e.g. -5.00 ... value at which the analogue output should output 0 V
+5.00 mbar (only for Out = dAC)
Sensor dep., Slope setting for Out = dAC: Input of the measured
e.g. -5.00 ... value at which the analogue output should output 1 V
+5.00 mbar (only for Out = dAC)
