APOLLO
air conditioner without outdoor unit
ERROR CODES LIST

Advertisement

loading
Need help?

Need help?

Do you have a question about the APOLLO and is the answer not in the manual?

Questions and answers

Related Manuals for Argo APOLLO

Summary of Contents for Argo APOLLO

  • Page 1 APOLLO air conditioner without outdoor unit ERROR CODES LIST...

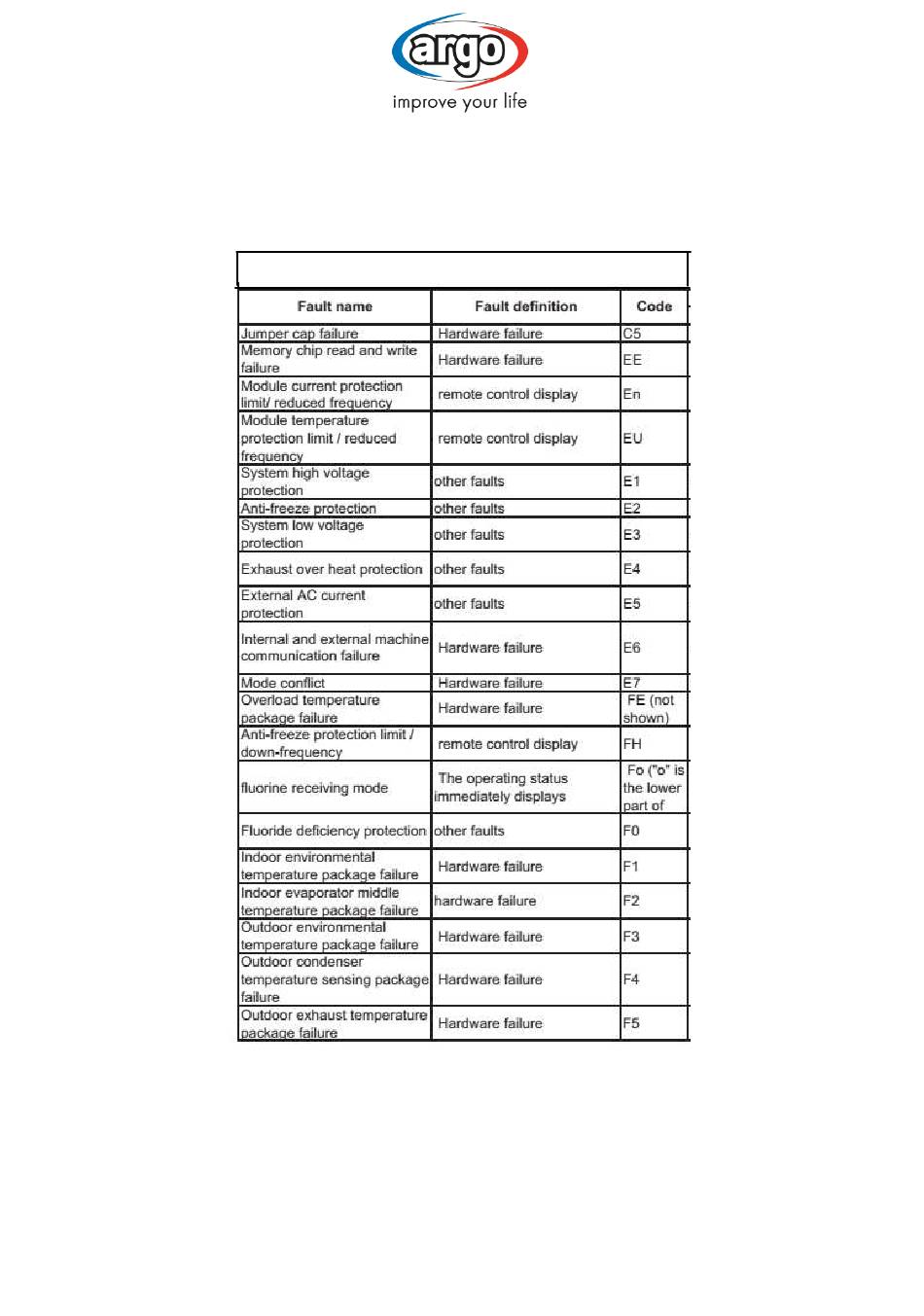

  • Page 2: Error Codes List

    ERROR CODES LIST Fault name Code Fault definition Condensate drain protection (float)
  • Page 3 APOLLO air conditioner without outdoor unit COMPONENTS DISASSEMBLY MANUAL...
  • Page 4 1.Removing the rear panel 1. Remove 6 screws on the left and right sides of the front panel, then remove the screws fixed on the rear panel. 2. Manually pull the rear panel outward to make sure that the top and bottom attachment positions front...
  • Page 5 2.Removing the front components 1. After moving the deflector to a horizontal position, remove the three screws 2. Remove the 2 screws of the electrical panel cover, remove the cover and the connection terminals for subsequent disassembly and maintenance.
  • Page 6 3. Lift the base slightly and pull the front outwards. Make sure that the joints between the left and right sides of the front and the left and right sides of the machine are blocked and that the lower part of the front and the base are blocked.
  • Page 7 2. Remove the screws that fix the main control board. Remove the screws that fix the PCB heat sink and the electrical panel. 3. Remove the 2 screws that fix the cooling fan bracket.
  • Page 8 4. Remove the screws that fix the reactor and remove it.
  • Page 9 4. Disassembly of the evaporator duct assembly 1. Remove the screws that fix the motor lock plate and pull it out.
  • Page 10 2. Remove the screws that fix the connection between the evaporator and the air duct assembly.
  • Page 11 3. Remove the 4 screws on the front and rear sides of the base of the internal machine connected to the central support...
  • Page 12 4. After lifting the evaporator assembly, move the base unit of the indoor unit out of the tilt.
  • Page 13 5. Internal division of components 1. Remove the screws that connect the front plate (1) and the components of the indoor unit. 2. Remove the screws that connect the center support cross plate (2) and the center support side plate. 3.
  • Page 14 6. Dismantling the components of the exhaust pipe 1. Remove the screws that fix the fan assembly and remove it. 2. Remove the 4 screws on the outside of the volute, loosen the nut fixed on the motor shaft, remove the nut and extract the fan with both hands, then remove the other 4 screws that secure the motor.
  • Page 15 7. Removing the refrigerant circuit Remove the three screws that connect the end plates on both sides of the condenser and the base. 1. Unscrew the three nuts that fix the compressor feet respectively, remove the nuts and gaskets and lift the refrigerant circuit consisting of the compressor, condenser and evaporator to disengage from the frame assembly (note that the protection pipe must not be broken) 8.
  • Page 16 9. Eletrical wiring diagram...
