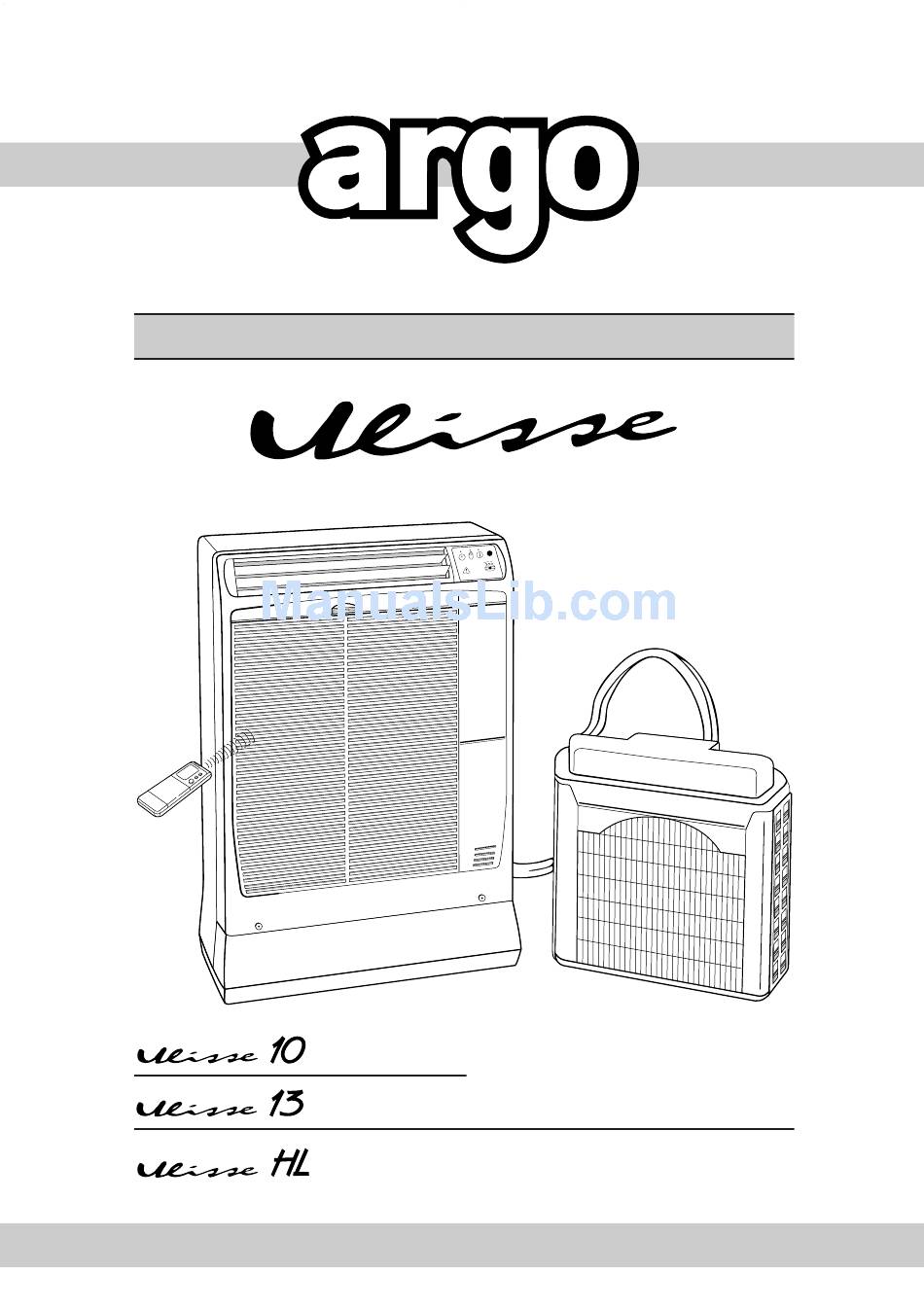

- Page 1 TECHNICAL DATA & SERVICE MANUAL - AUR210CLXXXX COOLING ONLY VERSION(R407C) - AU213CLXXXX - AUR310HLXXX HEAT PUMP VERSION(R407C) ROOM AIR CONDITIONER WITH REMOTE CONDENSER 0.8180.090.1 05/2000...
-
Page 2: Table Of Contents
TABLE OF CONTENTS pag. SPECIFICATIONS..............................3/4/5/6 1) Unit Specifications ............................. 2) Major Components Specifications a) Indoor Unit . -
Page 3: Aspecifications
SPECIFICATIONS 1) UNIT SPECIFICATIONS UNIT MODEL AUR210CLXXX AUR213CLXXX AUR310HLXXX Power source 220 - 240 ~ 50Hz PERFORMANCES COOLING COOLING HEATING BTU / h 9500 12500 9820 10700 Capacity W (Kcal / h) 2650 (2270) 3670 (3150) 2800 (2400) 3140 (2700) Air circulation (high/med/low) 370/340/270 450/400/340... -
Page 4: A) Indoor Unit
2) MAJOR COMPONENT SPECIFICATIONS a) INDOOR UNIT MODEL AUR210CLXXX AUR213CLXXX AUR310HLXXX CONTROLLER P.C.B. Controls Microprocessor Control circuit fuse 250V - 3A FAN & FAN MOTOR Cross - flow Number ... dia. / Lenght 1 ... ø 100 / L 410 Nominal output Ω... - Page 5 MODEL AUR210CLXXX AUR213CLXXX AUR310HLXXX SAFETY DEVICES Overload relay (OLR) External type ± ± ± Operating temp. Open °C ± ± ± Close °C Operating amp. Trip in Trip in Trip in ÷ ÷ ÷ (Ambient temp. 25°C) 16 sec. at 16A 16 sec.
-
Page 6: B) Outdoor Unit (Little Bag)
b) OUTDOOR UNIT (LITTLE BAG) MODEL AUR210CLXXX AUR213CLXXX AUR310HLXXX FAN & FAN MOTOR Proppeler Proppeler Proppeler Number ... Dia. (mm) 1..ø 320 1..ø 380 1..ø 380 No. of pole ..rpm (220V, high) 6 ..860 6 ..860 6 .. -
Page 7: Dimensional Data
DIMENSIONAL DATA Indoor unit Outdoor unit 440 (* 490) 230 (* 250) DIMENSIONS: mm * HEAT PUMP MODEL AND AUR213CLXXX... -
Page 8: Performance Charts (Operating Current)
PERFORMANCE CHARTS Operating characteristics versus outdoor ambient temperature and indoor temperature. Conditions: Power source 230 V - 1 - 50Hz - Single phase Indoor air velocity High Refrigerant Amount charged at shipment Tubing length 2,5 m Cooling characteristics Indoor relative humidity 46% AUR210CLXXX OUTDOOR INLET AIR D.B. - Page 9 Operating characteristics versus outdoor ambient temperature and indoor temperature. Conditions: Power source 230 V - 1 - 50Hz Indoor air velocity High Refrigerant Amount charged at shipment Tubing length 2,5 m HEAT PUMP MODELS Cooling characteristics Indoor relative humidity 46% OUTDOOR INLET AIR D.B.
- Page 10 REFIGERANT FLOW DIAGRAM COOLING MODELS Outdoor unit Indoor unit CAPILLARY TUBE Compressor Accumulator QUICK CONNECTOR REFIGERANT FLOW DIAGRAM HEAT PUMP MODELS Indoor unit Accumulator Muffler 4-way valve Outdoor unit Capillary tube Capillary tube Quick connector Stainer Check Drier valve Cooling cycle Heating cycle...
-
Page 11: Ffunction
FUNCTION 1) ROOM TEMPERATURE CONTROL Cooling Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. The room temperature (and other information) is transmitted every 3 minutes by the remote control unit to the controller in the indoor unit. - Page 12 Heating Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. The room temperature (and other information) is transmitted every 3 minutes by the remote control unit to the controller in the indoor unit.
- Page 13 2) FREEZE PREVENTION This function prevents freezing of the indoor heat exchange coil. When the compressor has been running for 10 minutes or more and the temperature of the indoor heat exchange coil falls below -1°C, the control circuit stops the compressor for at least 6 minutes. ROOM TEMP.
- Page 14 4) DRY OPERATION (DEHUMIDIFICATION) HEAT PUMP MODEL Dry operation uses the ability of the cooling cycle to remove moisture from the air, but by running at low level to dehumidify without greatly reducing the room temperature. The air conditioner repeats the cycle of turning ON an OFF automatically as shown in the chart below according to the room temperature.
- Page 15 6) DEFROSTING OPERATION (HEAT PUMP MODEL) When the capacity of unit bas been decreased due to frost sticking to the outdoor heat exchanger during heating, the temperature drop gradient is detected by the microcomputer controlled temperature sensing system, and defrosting operation is started. At this time, the indoor and outdoor fan motors wills stop, only the compressor is operated, and the system is automatically changed to cooiling operation mode.
- Page 16 7) DEFROSTING MODE TIMING CHART (HEAT PUMP MODEL) START OF DEFROSTING RELEASE OF DEFROSTING 32 SEC. MAX. 12 MIN. 32 SEC. COMPRESSOR OUTDOOR 2 SEC. 2 SEC. SOLENOID COIL (4-WAY VALVE) INDOOR SET SPEED SET SPEED STANDBY LAMP INDOOR HEAT EXCH.
- Page 17 ELECTRIC WIRING - COOLING ONLY VERSION • SCHEMA ELETTRICO - VERSIONE SOLO RAFFREDDAMENTO • SCHÉMA ÉLECTRIQUE - VERSION FROID SEUL • SCHALTPLAN - AUSFÜHRUNG: NUR KÜLUNG • ESQUEMA ELECTRICO SCHALTPLAN - MODELOS QUE SOLO HLEKTRIKO DIAGRAMMA - EKDOSH MONO YUXH EINFRIAN •...
- Page 18 ELECTRIC WIRING - HEAT PUMP VERSION • SCHEMA ELETTRICO - VERSIONE POMPA DI CALORE • SCHÉMA ÉLECTRIQUE - VERSION POMPE À CHALEUR • SCHALTPLAN - WÄRMEPUMPE-AUSFÜHRUNG • ESQUEMA ELECTRICO SCHALTPLAN - MODELOS BOMBA DE CALOR HLEKTRIKO DIAGRAMMA - EKDOSH ME QERMOANTLIA •...
-
Page 19: Troubleshooting
TROUBLESHOOTING CHECK BEFORE AND AFTER «TROUBLESHOOTING» (A) Check power supply wiring. WARNING: If the following troubleshooting must be done with power being supplied, be careful about any uninsulated live part that can cause ELECTRIC SHOCK. (B) Check power supply. Check that voltage is in specified range (± 10% of the rating). Check that power is being supplied SYSTEMATIC CHART OF «TROUBLESHOOTING»... - Page 20 Water - level alarm (condensate) is flashing on and OFF Malfunctioning of the condensate drainage system to the outdoor unit NOTE - In case of emergency the air conditioner can work by draining the condensate from the back little pipe into a rather short container, extract the little pipe and remove the cap. The condensate drain pipe in the flexible Remove the obstruction connection pipe is bended or obstructed...
-
Page 21: Esome Part Of Air Conditioner Does Not Operate
SOME PART OF AIR CONDITIONER DOES NOT OPERATE 1) ONLY INDOOR FAN DOES NOT RUN Check fan casing for Remove foreign Fan cannot be foreign matter on inside. matter or repair. turned Check fan rotation. Turn fan gently once or twice by hand. Fan motor burnout or Repair or replace. - Page 22 AIR CONDITIONER OPERATES, BUT ABNORMALITIES ARE OBSERVED (HEAT PUMP MODEL) 1) Operation does not switch from heat to cool (or cool to heat) Remote control unit may be defective. Receiver Ass’y may be defective. Measure resistance of solenoid coil winding (20 S - 4-way valve) 2) CHECK PCB ASS’Y IN INDOOR UNIT (HEAT PUMP MODEL) Switch operation from cool to heat (cool heat).
- Page 23 (5) Check fuse on PCB Ass’y in indoor unit. Check fuse on PCB Ass’y in indoor unit for continuity. If fuse blows, there is a possibility of short circuit. Measure resistance of primary winding of transformer. Measure resistance of indoor fan motor PCB Ass’y in indoor unit is defective.
-
Page 24: Gpoor Cooling Or Poor Heating
(7) CHECK PCB ASS’Y IN INDOOR UNIT (HEAT PUMP MODEL) (24 Volt) Check voltage between terminals No. 1 Defrost controller Ass’y is defective. (+) and No. 2 at four poles connector (PCB2). (DC 24V). (Unit connector) (0 Volt) No voltage appears. Indoor controller Ass’y is defective. -
Page 25: If A Sensor Is Defective
IF A SENSOR IS DEFECTIVE Indoor coil temp. thermistor (TH1) is defective. Operating lamp on indoor unit is fla- Thermistor (TH1) is difective. shing on and off ( (That is, sensor is short). Replace thermistor. Thermistor (TH1) is not connected Function of freeze prevention conti- to indoor PCB Ass’y, or its tempera- nues to work in cooling mode. - Page 26 In order to ensure quick and safe connection to the vacuum pump, use the connection device (spare parts code number 383092901), which can be bought near Argo Service Dept. The service connection kit is supplied with 3/8” male aeroquip and copper tube at the other end.
- Page 27 Before starting the bleeding of the system, it is advisable to oil the quick connections with antifreezing oil (for istan- ce SUNISO 4 GS), and then connect and disconnect once the system, in order ensure that seals of the piston. Indoor unit bleeding Joint the service connection to the low pressure pipe of the vacuum pump, according to above instructions, the screw it to the female aeroquip connection of the indoor/outdoor connection pipe.
-
Page 28: Checking Electrical Components
CHECKING ELECTRICAL COMPONENTS 1) Measurement of Insulation Resistance EATHER LINE The insulation is in good condition if the resi- CLIP stance exceeds 1M . PROBE INSULATION Power Supply Wires TESTER Clamp the earthed wire of the power supply wires Fig. 1 with the lead clip of the insulation resistance tester and measure the resistance by placing a probe on either of the power wires (Fig. - Page 29 2) Checking Continuity of Fuse on PCB Ass’y Remove PCB Ass’y from electrical component FUSE box. (Fig. 5). Then pull out the fuse from PCB Ass’y. PCB ASS’Y Fig. 5 Check continuity of fuse by the multimeter (Fig. 6). FUSE Fig.
