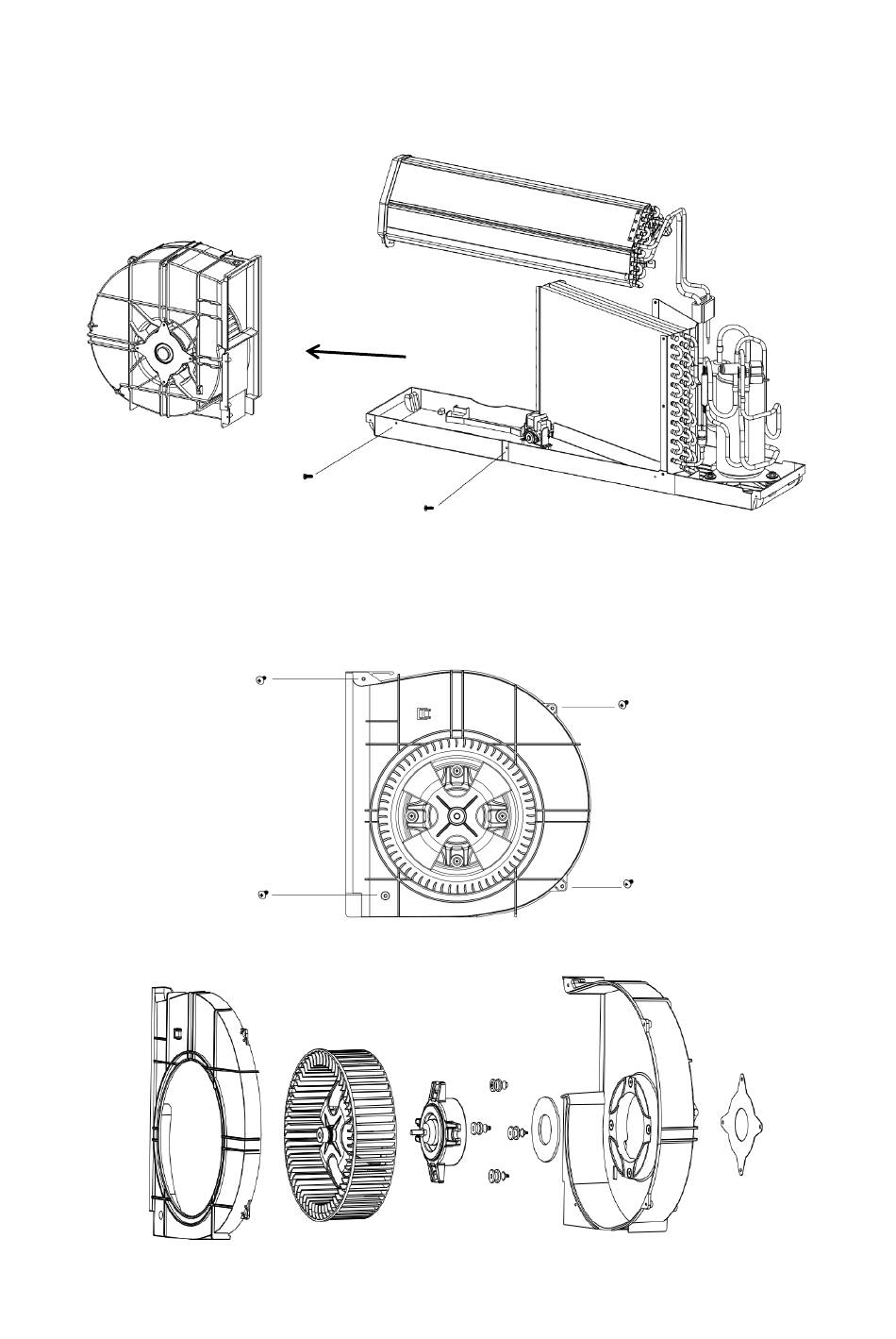

6. Dismantling the components of the exhaust pipe
1. Remove the screws that fix the fan assembly and remove it.
2. Remove the 4 screws on the outside of the volute, loosen the nut fixed on the
motor shaft, remove the nut and extract the fan with both hands, then remove
the other 4 screws that secure the motor. Remove the fan motor
12
