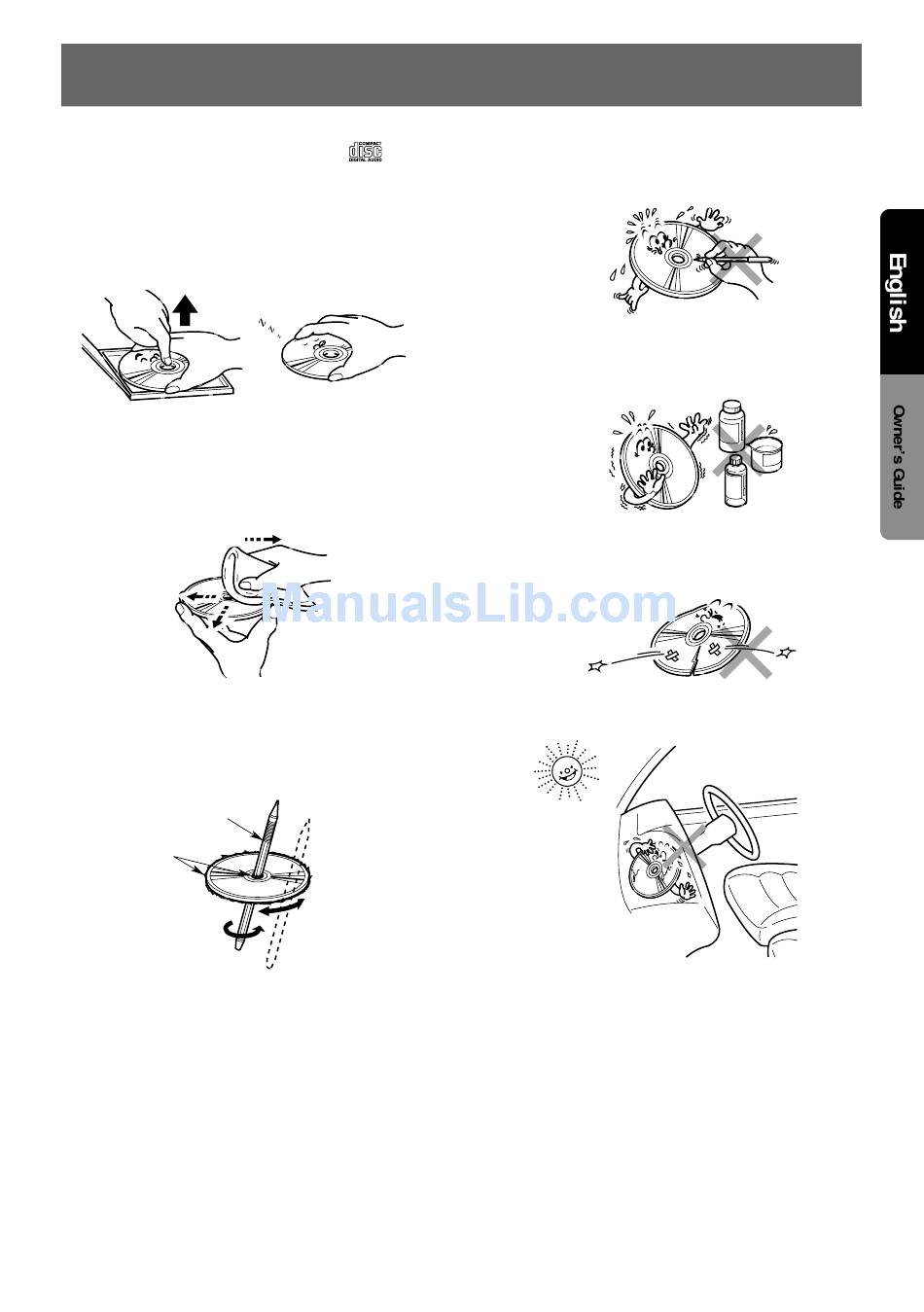

4. HANDLING COMPACT DISCS
This unit has been designed specifically for play-
back of compact discs bearing the
No other discs can be played.
To remove the compact disc from its storage
case, press down on the center of the case and
lift the disc out, holding it carefully by the edges.
Removing the disc
Always handle the compact disc by the edges.
Never touch the surface.
To remove fingermarks and dust, use a soft
cloth, and wipe in a straight line from the center
of the compact disc to the circumference.
New discs may have some roughness around
the edges. The unit may not work or the sound
may skip if such discs are used. Use a ball-point
pen, etc. to remove roughness from the edge of
the disc.
Ball-point pen
Roughness
Note:
Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These
may get caught in the internal mechanism and damage the disc.
mark.
Proper way to hold
the compact disc
Note on Compact Discs
Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.
No
Do not use any solvents such as commercially
available cleaners, anti-static spray, or thinner to
clean compact discs.
No
Do not use compact discs that have large
scratches, are misshapen, or cracked, etc. Use
of such discs will cause misoperation or damage.
No
Do not expose compact discs to direct sunlight
or any heat source.
No
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the compact disc and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarion compact disc

  • Page 1 No other discs can be played. To remove the compact disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.
  • Page 2: Button Terminology

    5. BUTTON TERMINOLOGY Note: Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (spread). TAPE ( : Tape Eject) Button [ SLOPE Button CD ( : CD Eject) Button [ TAPE Indicator ( EQ (Equalizer) Indicator ( A-M (Audio Mode) Button VISU (Visual) Button...
  • Page 3: Inserting The Battery

    6. REMOTE CONTROL Inserting the Battery 1) Turn the remote control unit upside down, push the lock in the direction of the arrow, and pull out the battery holder. 2) Insert the enclosed battery (CR2025) with the “+” side facing up. 3) Push the battery holder back in securely until a click is heard.
  • Page 4: Mode Display

    7. MODE DISPLAY <Radio Mode> <Tape Mode> Station title Band Preset channel Frequency Stereo/Monaural indication ( Current time Preset Nos. Manual indication Auto store indication ( Preset scan indication ( Tape status PLAY, FF, REW, APC-FF, APC-REW, PAUSE, EJECT, NO CASSETTE Playback direction Current time Blank skip ON/OFF indication...
  • Page 5 <CD Mode> <CD Changer Mode> Track No. Display about track Track random: “T-RDM” Track repeat : “T-RPT” Track scan : “T-SCN” Random play indication Repeat play indication Scan play indication CD title When a CD magazine is not loaded in the CD changer, “NO MAGAZINE”...
