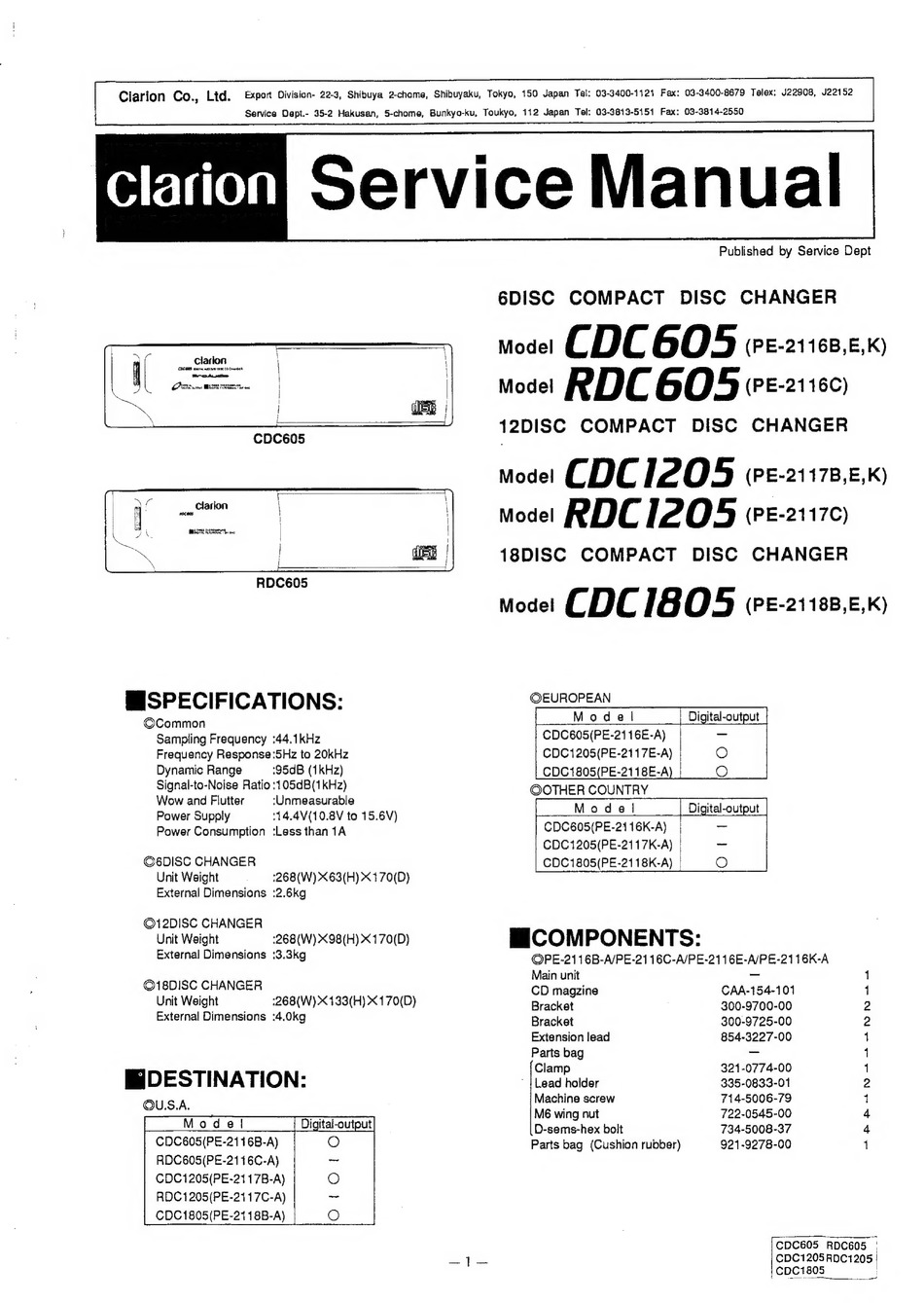

Clarion CDC605 Service Manual

Service Dept.- 35-2 Hakusan, 5-chome, Bunkyo-ku, Toukyo, 112 Japan Tel: 03-3813-5151 Fax: 03-3814-2550
clarion
exceet wan en
wenn Service Manual
RDC605
WISPECIFICATIONS:
©Common
Sampling Frequency :44.1kHz
Frequency Response :5Hz to 20kHz
Dynamic Range :95dB (1kHz)
Signal-to-Noise Ratio :105dB(1kHz)
Wow and Flutter :Unmeasurable
Power Supply 14.4V(10.8V to 15.6V)
Power Consumption :Less than 1A
©6DISC CHANGER
Unit Weight :1268(W) X63(H)X170(D)
External Dimensions :2.6kg
©12DISC CHANGER
Unit Weight :268(W) X98(H) X170(D)
External Dimensions :3.3kg
©18DISC CHANGER
Unit Weight 7268(W) X133(H) X170(D)
External Dimensions :4.0kg
MDESTINATION:
OUS.A.
CDC605(PE-2116B-A)
RDC605(PE-2116C-A)
CDC1205(PE-2117B-A)
RDC1205(PE-2117C-A)
CDC1805(PE-2118B-A)
Published by Service Dept
6DISC COMPACT DISC CHANGER
vodel COC 6QO5 vre-21168,£,k)
model RIC 6Q5 tre-21160)
12DISC COMPACT DISC CHANGER
model COC IZO55 (re-21178,£,K)
model RDC IZO5 (re-2117¢)
18DISC COMPACT DISC CHANGER
modet COC I8QOS (re-21188,,k)
OEUROPEAN
Model |_Digital-output
CDC605(PE-2116E-A) =
CDC1205(PE-2117E-A)
CDC605(PE-21 16K-A)
CDC1205(PE-2117K-A)
CDC1805(PE-2118K-A)
MICOMPONENTS:
©PE-2116B-A/PE-21 16C-A/PE-2116E-A/PE-2116K-A
Main unit - 1
CD magzine CAA-154-101 1
Bracket 300-9700-00 2
Bracket 300-9725-00 2
Extension lead 854-3227-00 1
Parts bag - 1
Clamp 321 -0774-00 1
Lead holder 335-0833-01 2
Machine screw 714-5006-79 1
M6 wing nut 722-0545-00 4
D-sems-hex bolt 734-5008-37 4
Parts bag (Cushion rubber) 921-9278-00 1
CDC605 RDC605 |
CDC1205RDC1205
| CDC1805
