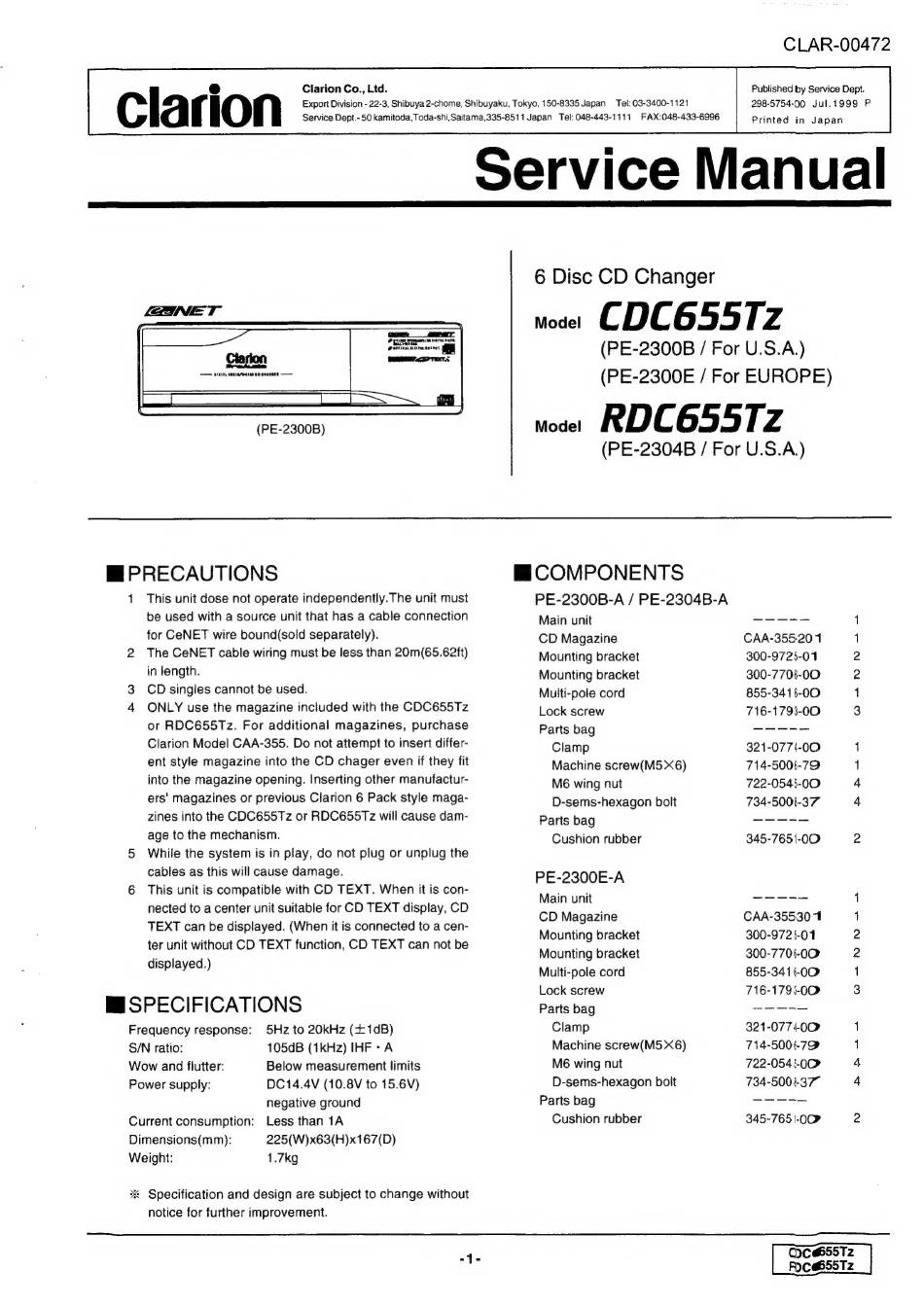

Clarion CDC655TZ Service Manual

CLAR-00472
Clarion Co., Ltd.
Published by Service Dept.
298-5754-00 Jul.1999 P
Printed in Japan
Service Manual
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan Tel: 03-3400-1121
Service Dept.- 50 kamitoda, Toda-shi, Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996
Clarion
6 Disc CD Changer
Model CDC655 TZ
(PE-2300B / For U.S.A.)
(PE-2300E / For EUROPE)
(PE-2300B)
MiPRECAUTIONS
{ This unit dose not operate independently. The unit must
be used with a source unit that has a cable connection
wot RDC6551Z
(PE-2304B / For U.S.A.)
Mi COMPONENTS
PE-2300B-A / PE-2304B-A
Mainunit 2 1
for CeNET wire bound(sold separately). CD Magazine CAA-355-2011 1
2 The CeNET cable wiring must be less than 20m(65.62ft) Mounting bracket 300-9725-01 2
in length. Mounting bracket 300-7706-00 2
3 CD singles cannot be used. Multi-pole cord 855-341 5-00 1
4 ONLY use the magazine included with the CDC655Tz Lock screw 716-1793-00 3
or RDC6557z. For additional magazines, purchase Patsbag eee
Clarion Model CAA-355. Do not attempt to insert differ- Clamp 321-077/-00 1
ent style magazine into the CD chager even if they fit Machine screw(M5X6) 714-500{-79 {
into the magazine opening. Inserting other manufactur- M6 wing nut 722-0545-00 4
ers' magazines or previous Clarion 6 Pack style maga- D-sems-hexagon bolt 734-5001-37 4
zines into the CDC655Tz or RDC655Tz will cause dam- Patsbag ee
age to the mechanism. Cushion rubber 345-765|-00 2
5 While the system is in play, do not plug or unplug the
cables as this will cause damage. PE-2300E-A
6 This unit is compatible with CD TEXT. When it is con- Mie? titi' {
nected to a center unit suitable for CD TEXT display, CD :
TEXT can be displayed. (When it is connected to a cen- cea ee as i :
ter unit without CD TEXT function, CD TEXT can not be Mounting bracket 300-770&00 2
displayed.)
Multi-pole cord
855-341 +-00
L
Lock screw 716-179'-00 3
MB SPECIFICATIONS Partsbag°: 90
Frequency response: 5Hz to 20kHz (+1dB) Clamp 321-077400 1
S/N ratio: 105dB (1kHz) IHF - A Machine screw(M5 X6) 714-5001-72 1
Wow and flutter: Below measurement limits M6 wing nut 722-0540 4
Power supply: DC14.4V (10.8V to 15.6V) D-sems-hexagon bolt 734-500-377 4
negative ground Parts bag.
Current consumption: Less than 1A Cushion rubber 345-765 -O 2
Dimensions(mm):
225(W)x63(H)x167(D)
Weight: 1.7kg
* Specification and design are subject to change without
notice for further improvement.
©cé655Tz
F9c@55Tz
