Clarion RDC635 Service Manual

Clarion Co., Ltd.
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150 Japan Tel: 03-3400-1121
Service Dept.- 50 kamitoda, Toda-shi,Saitama,335 Japan Tel: 048-443-1111 FAX:048-433-6996
Published by Service Dept.
298-5588-00 Feb.1997 P
Clarion
Printed in Japan

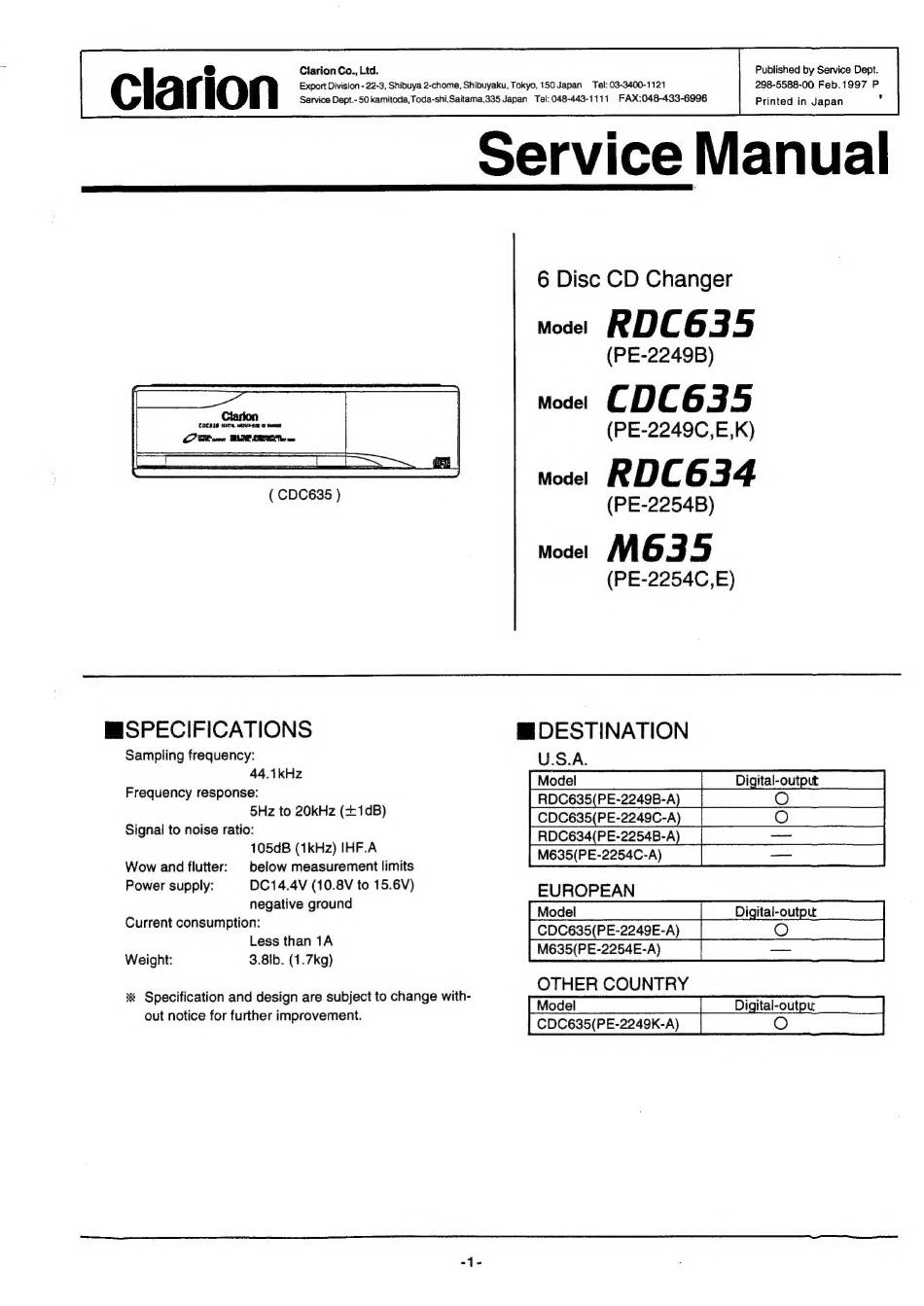

Service Manual
6 Disc CD Changer
model RDC635
)
(PE-2249B
model CDC635
(PE-2249C,E,K)
Model RDC634
ee! (PE-2254B)
Model M 635
(PE-2254C,E)
MISPECIFICATIONS M@ DESTINATION
Sampling frequency: U.S.A.
44.1kHz
Frequency response:
5Hz to 20kHz (+1dB)
Signal to noise ratio:
105dB (1kHz) IHF.A
below measurement limits
DC14.4V (10.8V to 15.6V)
negative ground
Current consumption:
Less than 1A
Weight: 3.8Ib. (1.7kg)
Wow and flutter:
Power supply:
%*% Specification and design are subject to change with-
out notice for further improvement.
mie
[Model |S Cigital-outpwt
|RDC635(PE-22498-A) | OO
|CDCess(PE-2249C-A) | OO
| RDC634(PE-2254B-A) [|
aS ce ee |
M635(PE-2254C-A)
EUROPEAN
[Model ss" | SC igital-outp
cocesspEawEA | O|
[MeS6(PE-20546-A) |
OTHER COUNTRY
[Model Cigital-outpg
|CDCeas(PE-2249K-A) | oO
