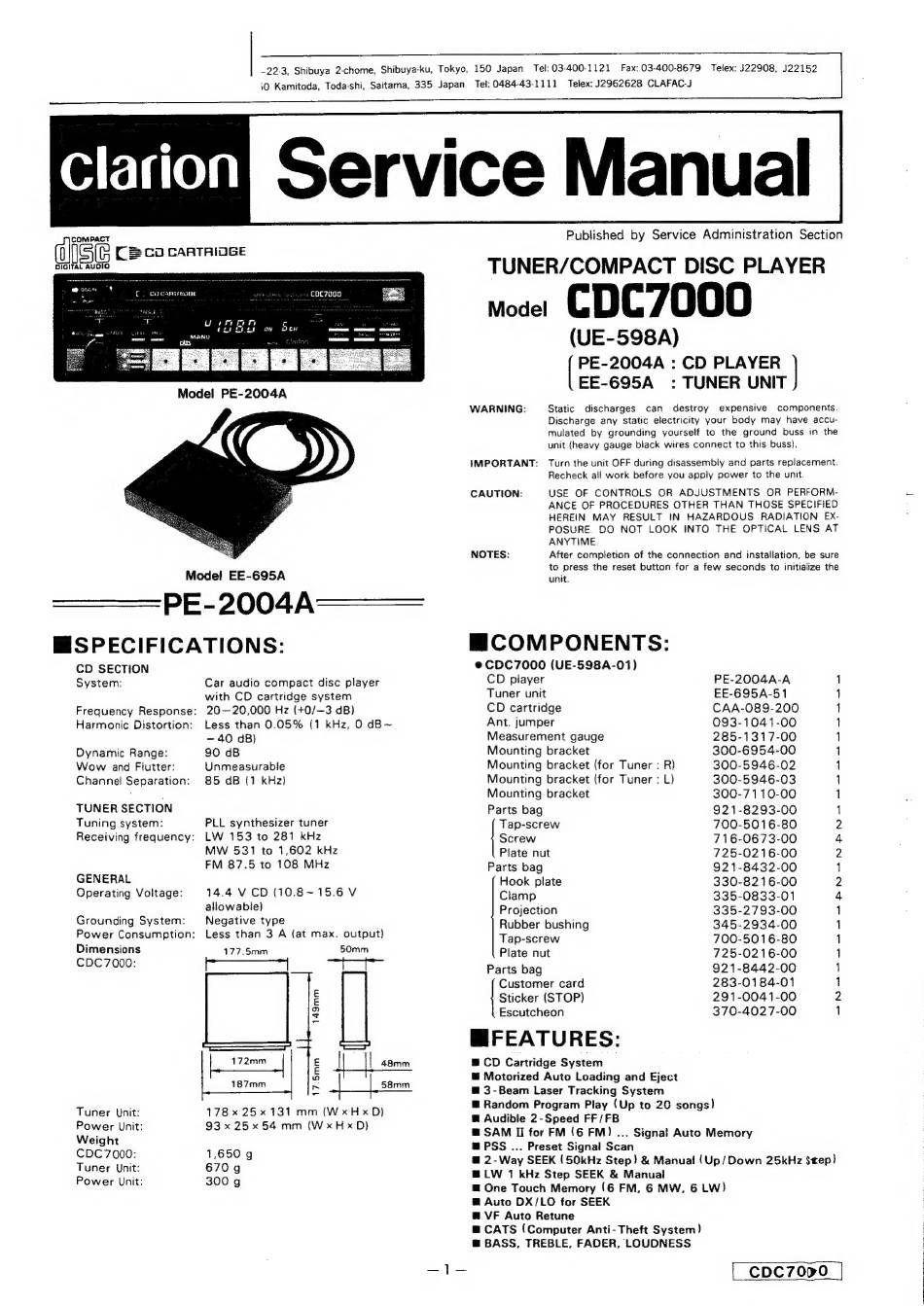

Clarion CDC7000 Service Manual

10 Kamitoda, Toda-shi, Saitama, 335 Japan
Tel: 0484-43-1111 Telex: 2962628 CLAFAC-J
COMPACT
( =Co CAATAIOGE
OIGITAL AUDIO

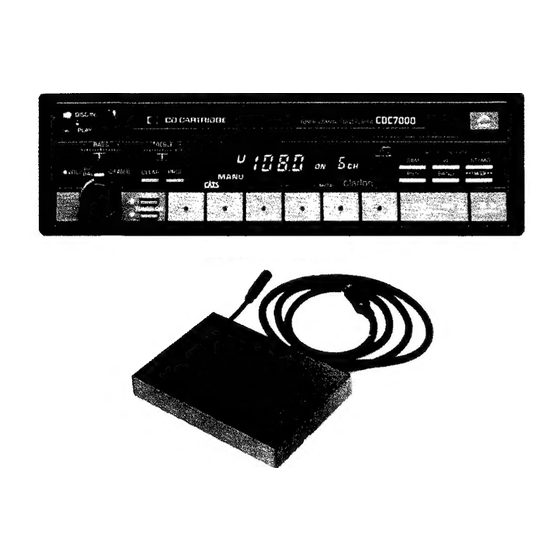

Model EE-695A
== PE-2004A——
MISPECIFICATIONS:
CD SECTION
System:
Car audio compact disc player
with CD cartridge system
Frequency Response: 20—20,000 Hz (+0/—3 dB)
Harmonic Distortion: Less than 0.05% (1 kHz, 0 dB~
- 40 dB)
Dynamic Range: 90 dB
Wow and Flutter: Unmeasurable
Channel Separation: 85 dB (1 kHz)
TUNER SECTION
Tuning system: PLL synthesizer tuner
Receiving frequency: LW 153 to 281 kHz
MW 531 to 1,602 kHz
FM 87.5 to 108 MHz
GENERAL
Operating Voltage: 14.4 V CD (10.8~15.6 V
allowable)
Grounding System: Negative type
Power Consumption: Less than 3 A (at max. output)
Dimensions 177.5mm 50mm
CDC7000: el eT aa
7 ll
E
on
=
172mm E | | 48mm
& {NT sem
187mm im 58mm
Tuner Unit: 178 x 25x 131 mm (WxHxD)
Power Unit: 93 x 25x54 mm (WxHxD)
Weight
CDC7000: 1,650 g
Tuner Unit: 670g
Power Unit: 300 g
aren Service Manua
-22.3, Shibuya 2-chome, Shibuya-ku, Tokyo, 150 Japan Tel: 03-400-1121 Fax: 03-400-8679 Telex: J22908, J22152
Published by Service Administration Section
TUNER/COMPACT DISC PLAYER
Model CDCc7000
(UE-598A)
feeaeen" : CD PLAYER
EE-695A
WARNING:
: TUNER UNIT
Static discharges can destroy expensive components.
Discharge any static electricity your body may have accu-
mulated by grounding yourself to the ground buss in the
unit (heavy gauge black wires connect to this buss).
HMPORTANT: Turn the unit OFF during disassembly and parts replacement.
Recheck all work before you apply power to the unit.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORM-
CAUTION:
ANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EX-
POSURE. DO NOT LOOK INTO THE OPTICAL LENS AT
ANYTIME
NOTES:
After completion of the connection and instailation, be sure
to press the reset button for a few seconds to initialize the
unit.
COMPONENTS:
®CDC7000 (UE-598A-01)
CD player
Tuner unit
CD cartridge
Ant. jumper
Measurement gauge
Mounting bracket
Mounting bracket (for Tuner : R)
Mounting bracket (for Tuner : L)
Mounting bracket
Parts bag
Tap-screw
Screw
Plate nut
Parts bag
Hook plate
Clamp
Projection
Rubber bushing
Tap-screw
Plate nut
Parts bag
Customer card
| Sticker (STOP)
Escutcheon
MFEATURES:
@ CD Cartridge System
@ Motorized Auto Loading and Eject
@ 3-Beam Laser Tracking System
PE-2004A-A
EE-695A-51
CAA-089-200
093-1041-00
285-1317-00
300-6954-00
300-5946-02
300-5946-03
300-7110-00
921-8293-00
700-5016-80
716-0673-00
725-0216-00
921-8432-00
330-82 16-00
335-0833-01
335-2793-00
345-2934-00
700-5016-80
725-0216-00
921-8442-00
283-0184-01
291-0041-00
370-402 7-00
@ Random Program Play (Up to 20 songs)
@ Audible 2-Speed FF/FB
@ SAM II for FM (6 FM) ... Signa! Auto Memory
@PSS ... Preset Signal Scan
PN moa oenan pp oNnNAn = = Henao inna
@ 2-Way SEEK (50kHz Step) & Manual (Up/Down 25kHz Step)
@ LW 1 kHz Step SEEK & Manual
@ One Touch Memory (6 FM, 6 MW, 6 LW)
@ Auto DX/LO for SEEK
@ VF Auto Retune
@ CATS (Computer Anti-Theft System)
@ BASS, TREBLE, FADER, LOUDNESS
CDC7090
