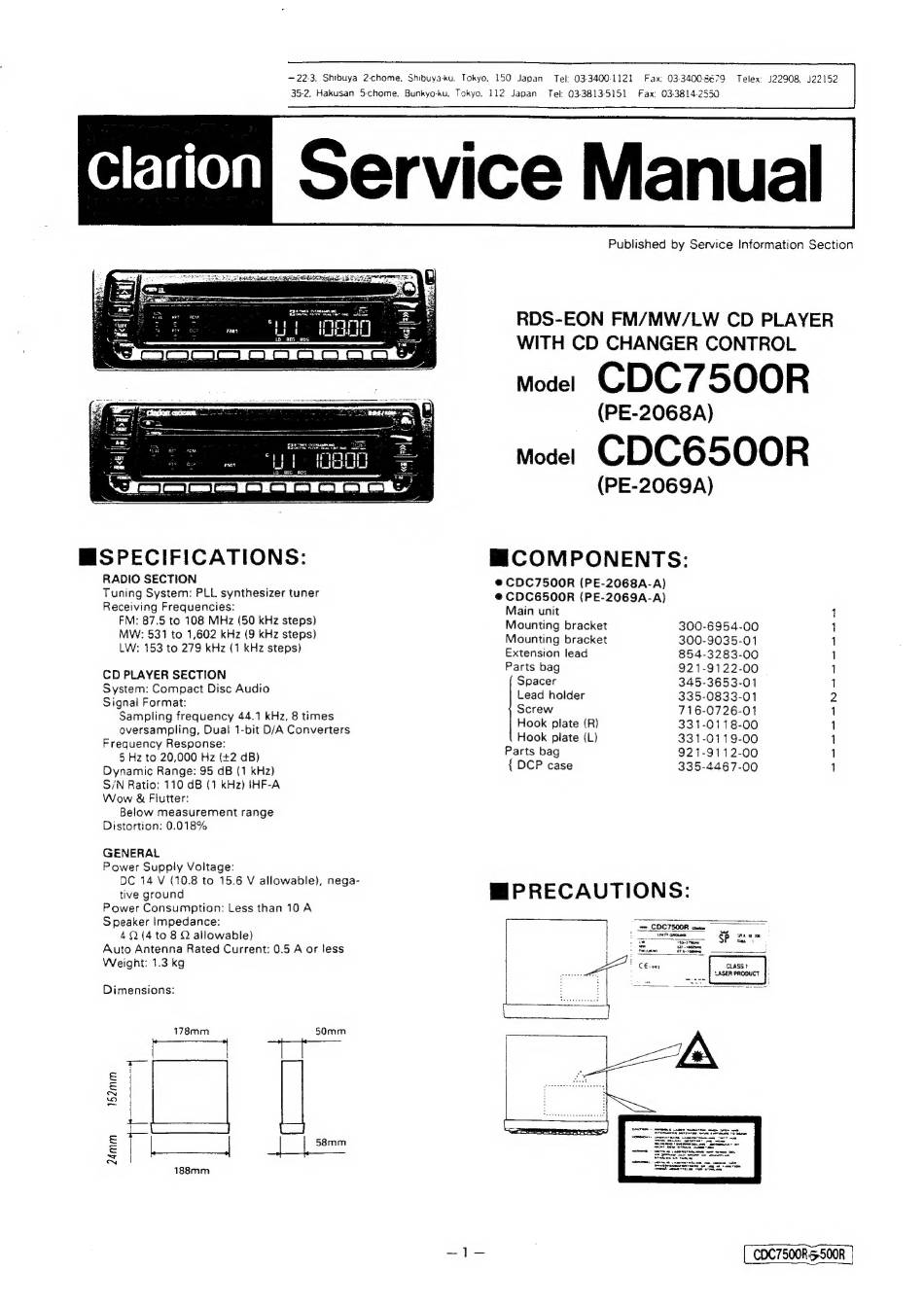

Clarion CDC7500R Service Manual

MISPECIFICATIONS:
RADIO SECTION
Tuning System: PLL synthesizer tuner
Receiving Frequencies:
FM: 87.5 to 108 MHz (50 kHz steps)
MW: 531 to 1,602 kHz (9 kHz steps)
LW: 153 to 279 kHz (1 kHz steps)
CD PLAYER SECTION
System: Compact Disc Audio
Signal Format:
Frequency Response:
5 Hz to 20,000 Hz (+2 dB)
Sampling frequency 44.1 kHz, 8 times
oversampling, Dual 1-bit D/A Converters
Dynamic Range: 95 dB (1 kHz)
S/N Ratio: 110 dB (1 kHz) |HF-A
Wow & Flutter:
Distortion: 0.018%
GENERAL
Power Supply Voltage:
DC 14 V (10.8 to 15.6 V allowable), nega-
tive ground
Below measurement range
Power Consumption: Less than 10A
Speaker Impedance:
42(4 to 8 Q allowable}
Auto Antenna Rated Current: 0.5 A or less
Weight: 1.3 kg
Dimensions:
152mm
24mm
ks dae)
178mm
im
188mm
i 50mm
58mm
— 22-3, Shibuya 2-chome, Shibuya-ku. Tokyo. 150 Japan Tel: 03-3400-1121
35-2, Hakusan 5-chome, Bunkyo-ku, Tokyo, 112 Japan Tel 03-3813-5151
Fax. 0334008679 Telex: J22908, J22152
Fax: 03-3814-2550
Published by Service Information Section

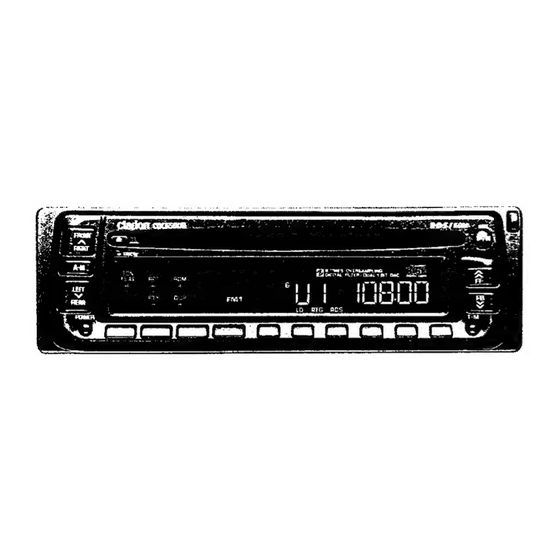

RDS-EON FM/MW/LW CD PLAYER
WITH CD CHANGER CONTROL
Model CDC7500R
(PE-2068A)
Model CDC6500R
(PE-2069A)
MCOMPONENTS:
@ CDC7500R (PE-2068A-A)
@ CDC6500R (PE-2069A-A)
Main unit
Mounting bracket 300-6954-00
Mounting bracket 300-9035-01
Extension lead 854-3283-00
Parts bag 921-9122-00
Spacer 345-3653-01
Lead holder 335-0833-01
Screw 716-0726-01
Hook plate (R) 331-0118-00
Hook plate (L) 331-0119-00
Parts bag 921-9112-00
{ DCP case 335-4467-00
MPRECAUTIONS:
mee aN wm Hee aa
CDC7500R-5-S00R
