MAINTENANCE FUNDAMENTALS
Light Fixtures
Light fixtures are located on the sides of
each door assembly, both sides (just in-
side doors).
Open the door all the way.
Access lamp by removing the lamp
cover/diffuser.
Apply gentle squeezing pressure to
lamp cover; rotate to release
cover.
Removal of lamp:
Press bulb down until top contacts are
clear of the upper socket.
Tilt top of bulb away from the upper
socket and lift bulb out.
Replace bulb by performing this opera-
tion in reverse order.

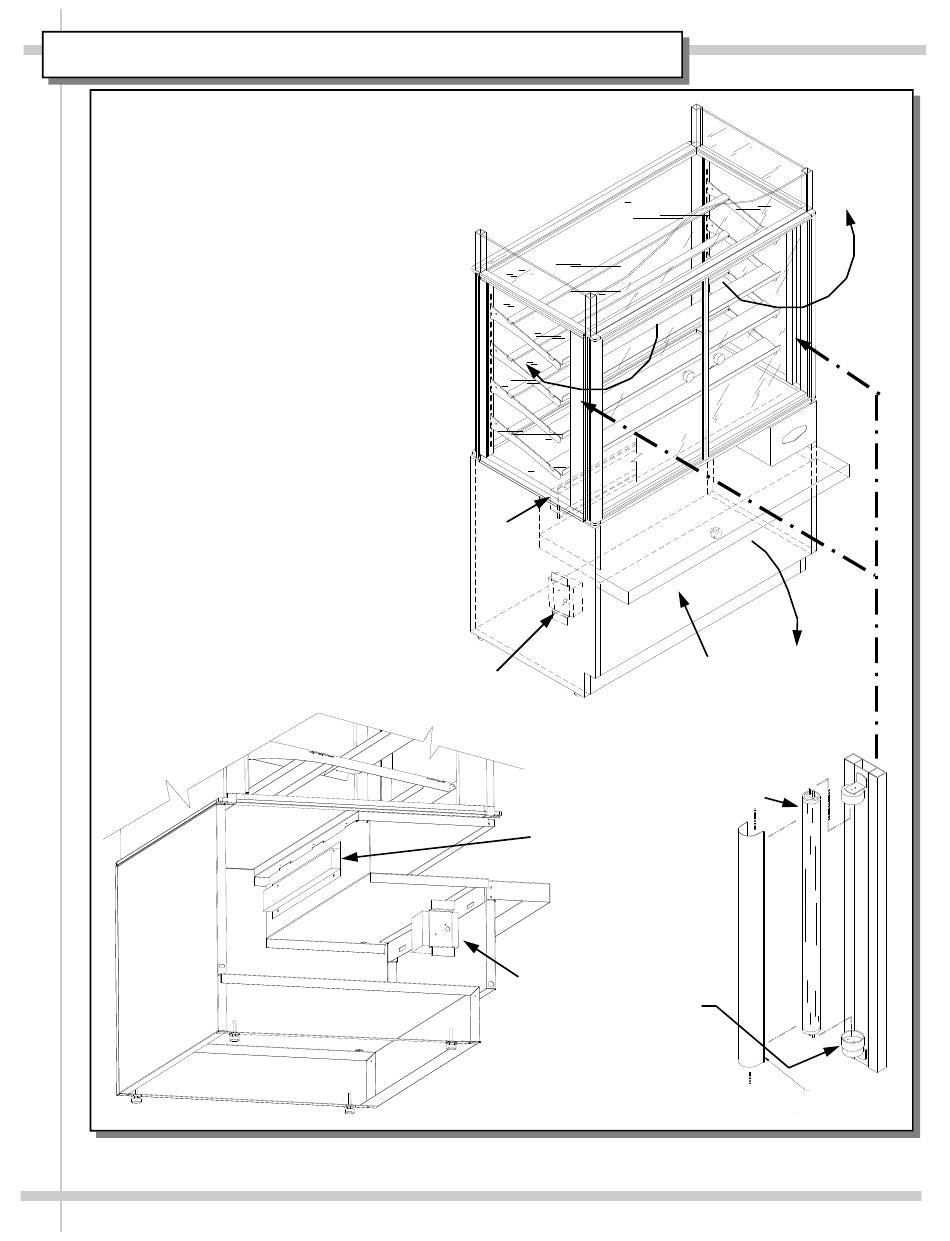

See light assembly illustration below
right.
Light Ballast Access and Field Access
Box Access
Disconnect electrical power from case.
Flip Down the Front Panel / Storage
Door (see front case illustration at right
and rear case illustration below).
Ballast
Box
Field
Access
Box
Ballast
Box
Field
Access
Box
Lower Socket
with Spring
7
Front Panel /
Storage Door
Light Assembly
Bulb
Lamp Cover
