PROAIM SnapRig SR228 Assembly Manual

Basic shoulder mount kit

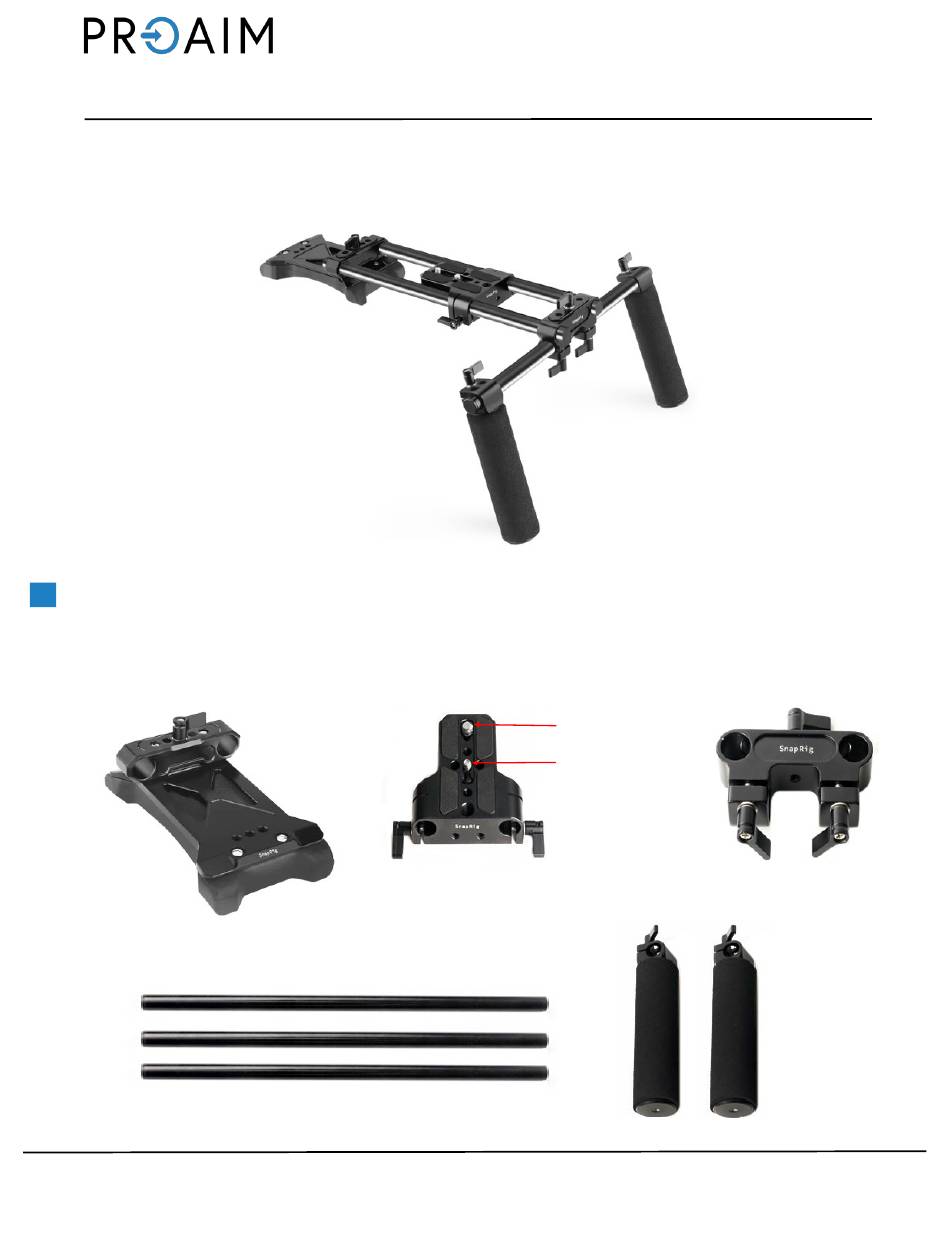

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Shoulder Pad

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

SnapRig Basic Shoulder Mount Kit

A s s e m b l y M a n u a l

3 x 300mm long Rod (Dia=15mm)

statutes or in writing by the Publisher.

(SR228)

Bolt (Size:3/8")

Bolt (Size:1/4")

Camera Plate

Junction Adapter

2 x Grip Handles

Table of Contents

Need help?

Do you have a question about the SnapRig SR228 and is the answer not in the manual?

Page 1 SnapRig Basic Shoulder Mount Kit (SR228) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Basic Shoulder Mount Setup  Loosen both the knobs of the Junction Adapter and insert 300mm long rod (Dia 15mm).  Then properly tighten both the knobs, as shown in the image.  Now loosen the knob of the grip handle and insert the left side of the 300mm long rod.
Page 3  Now loosen both the knobs of the camera plate and insert the rods into the plate.  Then properly tighten both the knobs, as shown in the image. NOTE: Rubber padding on the camera base plate prevents the Camera from twisting or scratching.
Page 4 NOTE: Dual handgrip kit offers both comfort and balance with its two 360° rotatable handgrips that securely mount onto the rods with a 15mm rod clamp. YOUR PROAIM SNAPRIG BASIC SHOULDER MOUNT KIT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
Page 5 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
