PROAIM CINEMA Series Assembly Manual

Hybrid 75mm/100mm vesa monitor mount
Hide thumbs Also See for CINEMA Series:

Advertisement

Table of Contents

1

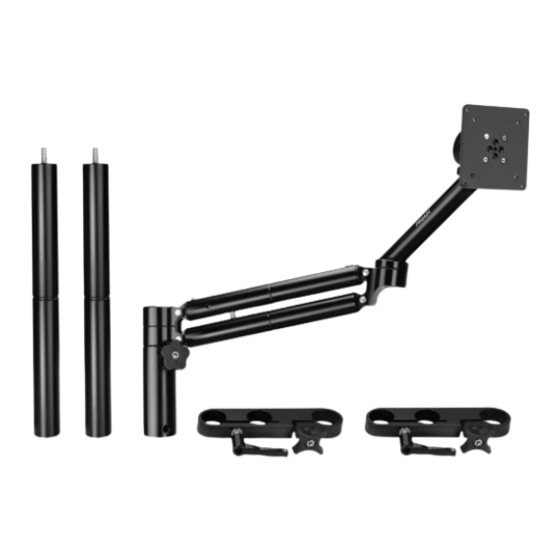

Hybrid 75mm/100mm VESA Monitor Mount
(CT-HMMT-01)
A s s e m b l y M a n u a l

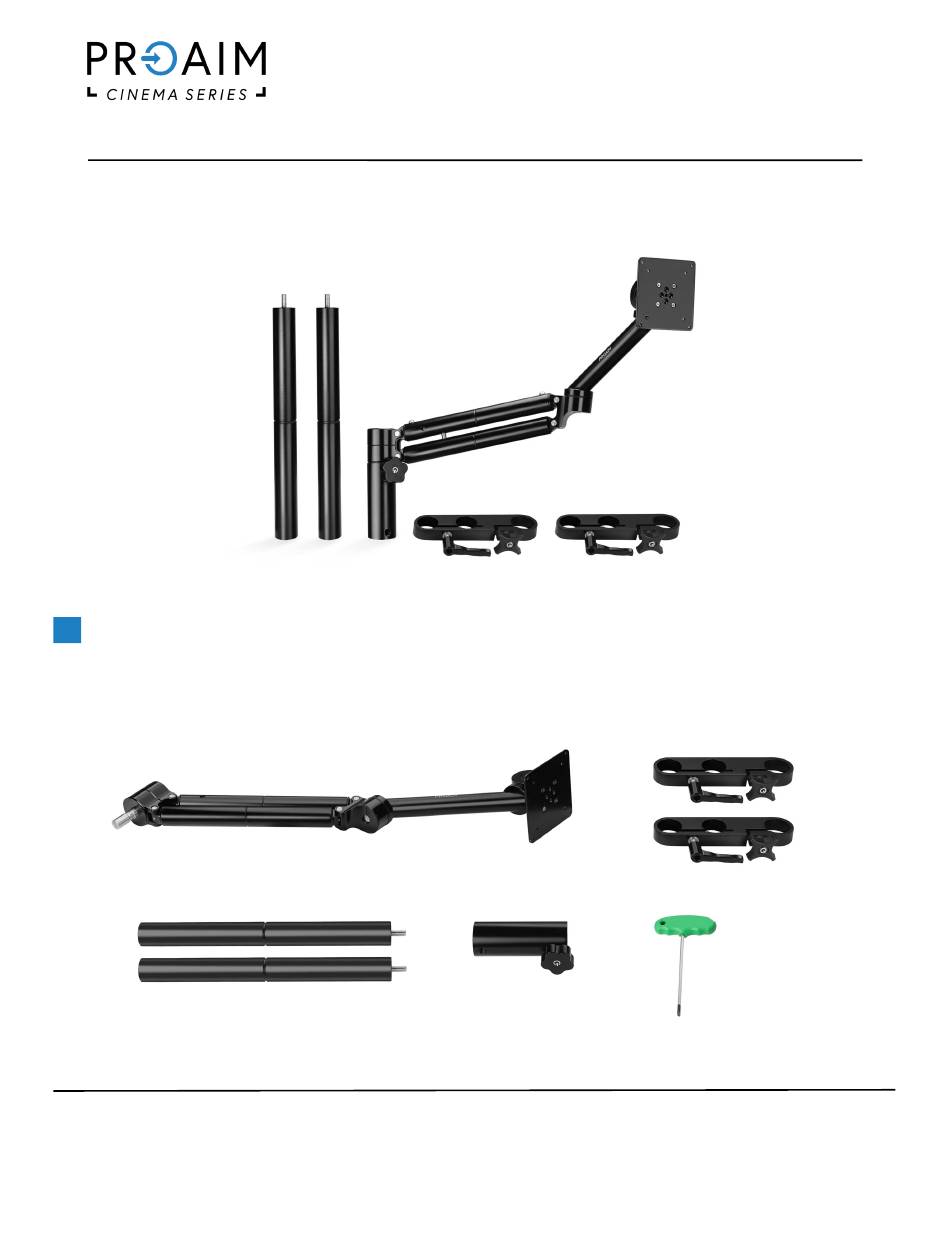

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Hybrid Cylindrical Arm with Vesa Mount
2 x Rod Mounting Clamp
Arm Mount Adaptor
2 x 400mm Rod Post
1 x T-Type Allen Key
(Size: 3/16")
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM CINEMA Series

Summary of Contents for PROAIM CINEMA Series

  • Page 1 Hybrid 75mm/100mm VESA Monitor Mount (CT-HMMT-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
  • Page 2 Monitor Mount Setup  Loosen both the (top & bottom) knobs on the production camera cart (Not Included).  Then, raise the pole of the camera cart (Not Included), as shown in the image.  Loosen the knob of the rod mounting clamp and insert it into the rod of the cart.
  • Page 3  Then secure the rod post with the rod mounting clamp using the ratchet knob.  After securing the rod post with the rod mounting clamp, mount the second rod post by screwing it into the provided thread right above the first rod post. ...
  • Page 4  Attach the Vesa Mount at the back of the LCD Monitor (Not Included) by aligning the threads, as shown in the image.  To secure the assembly, insert the bolts and secure them using the Allen key.  Secure all the bolts by tightening them. ...
  • Page 5  The LCD monitor (Not Included) can be subjected to tilting (75°) by loosening the bolt at the top of the Hybrid Cylindrical Arm with the Allen key.  Tighten the fitted bolt in the Hybrid Cylindrical arm with VESA mount using the Allen key to lock the arm at the required position.
  • Page 6 YOUR PROAIM HYBRID 75MM/100MM VESA MONITOR MOUNT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
