PROAIM SR-250-00 Assembly Manual

Dovetail camera shoulder mount rig

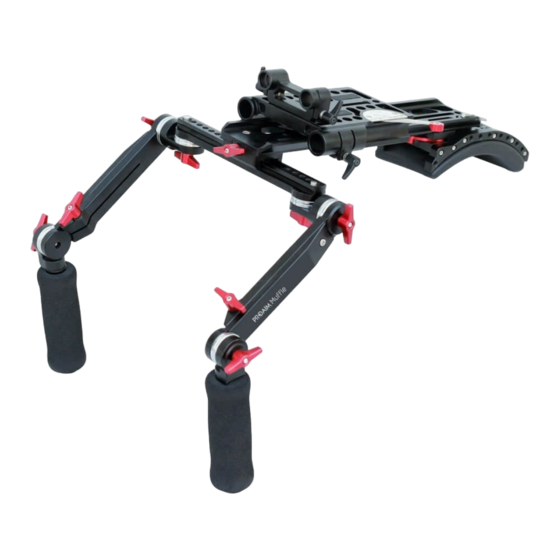

Dovetail Camera Shoulder Mount Rig

(SR-250-00)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Threaded Crossbar

Rod Adapter

Front Handle Set

3/16mm

Shoulder Pad

Allen Key

Dovetail Quick Release Plate

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copy-

right statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the SR-250-00 and is the answer not in the manual?

Page 1 Dovetail Camera Shoulder Mount Rig (SR-250-00) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Shoulder Mount Rig Setup  Attach the ARRI standard rosette handles to the Rosette crossbar and secure them using the knob as shown in the images.  Slide the Dovetail Quick Release plate on the threaded crossbar.  Adjust the Dovetail Quick Release plate and secure it correctly with the help of a knob.
Page 3  Adjust the handles and lock them at the desired position using a knob.  Loosen the height adjustment knobs present on both handles, and you can adjust the height up to 50mm.  Tighten the knob to lock the handles at the desired height.
Page 4  Loosen the dovetail plate knob for quickly moving the dovetail plate on the threaded crossbar.  You can now adjust the plate at your desired position, as shown in the images.  Push the pin in and remove the Base plate from the Dovetail plate as shown.
Page 5 Locking lever to secure it.  Your setup is ready. YOUR PROAIM DOVETAIL CAMERA SHOULDER MOUNT RIG ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
