PROAIM Cinema Series Assembly Manual

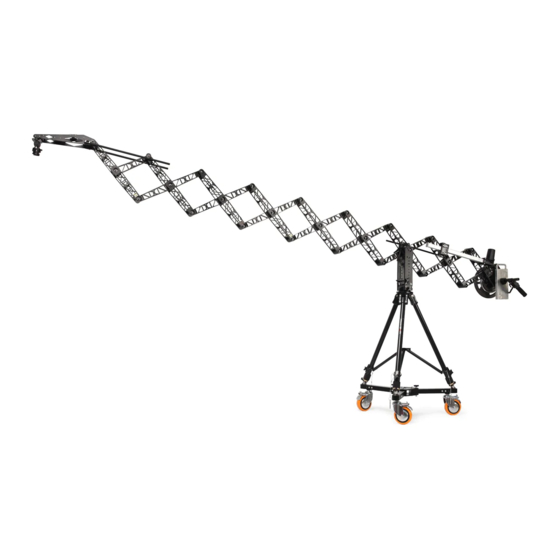

Scissor 17ft telescopic camera jib crane package
Hide thumbs Also See for Cinema Series:

Advertisement

Quick Links

Download this manual

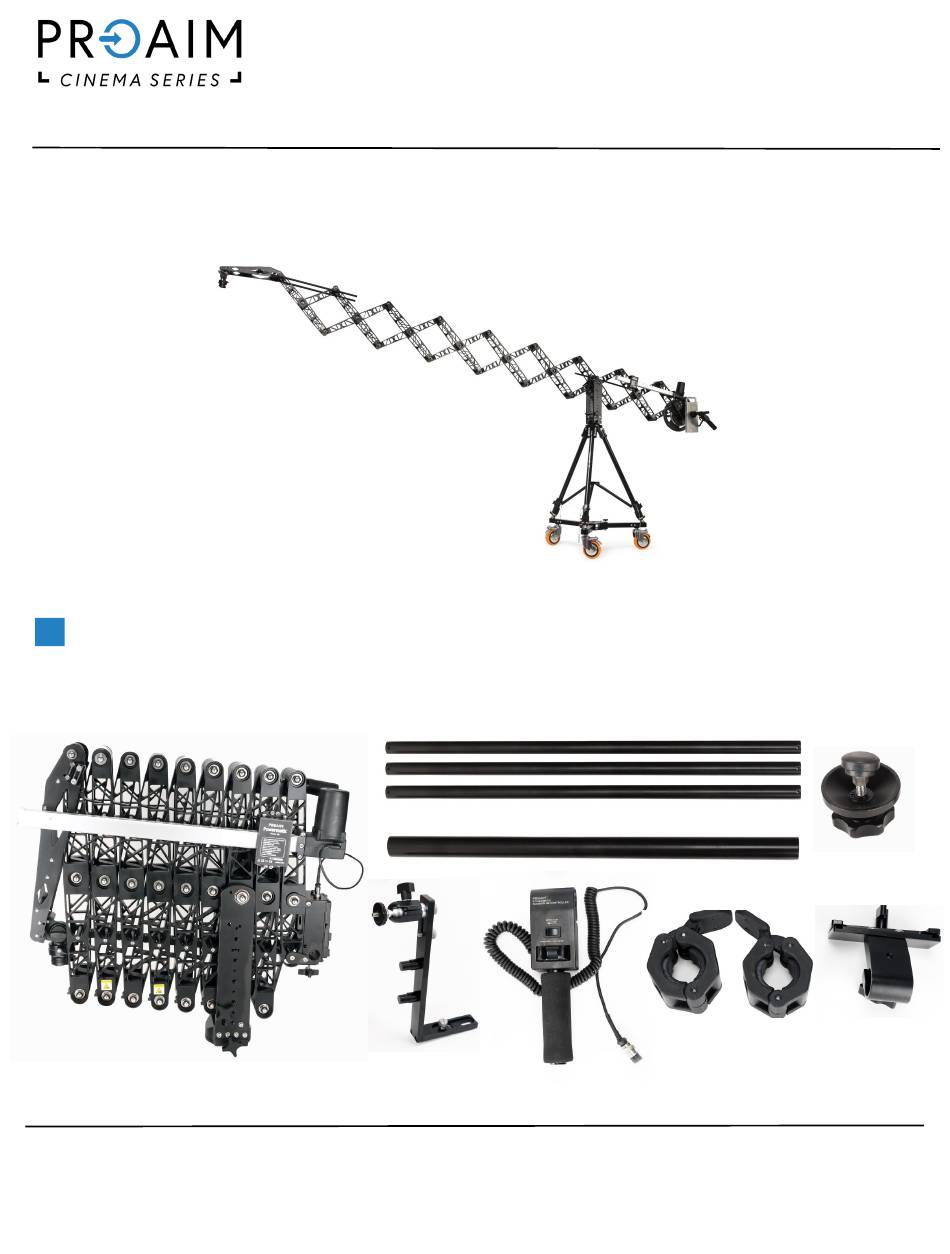

1
Powermatic Scissor 17ft Telescopic Camera Jib Crane Package
(JB-SCSR-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
3 x Guide Rods
Weight Rod
Hub Locking Knob
Ronin Controller
2 x Weight
Bracket
Closers
Monitor Arm
17ft Powermatic Scissor Jib with
Jib Controller
Gimbal Fluid Head
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cinema Series and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM Cinema Series

Summary of Contents for PROAIM Cinema Series

  • Page 1 Powermatic Scissor 17ft Telescopic Camera Jib Crane Package (JB-SCSR-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
  • Page 2 Female to Female Female to Connector Female Connector HDMI Male to BNC Wire Male Wire 15V AC Adapter able Tie 4mm Allen Key 3mm Allen Key 2.5mm Allen 3/16 Wrench Allen Key Flight Case...

  • Page 3: Safety Hints

    Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO CRANE! BE HIGHLY VIGILANT WHILE ASSEMBLING Lack of attention while attaching Dolly, Tripod & Crane together can cause substantial damage to equip- ment. BE WATCHFUL OF THE HANDS Cautiously operate to avoid pinching your hand/fingers between the arms.
  • Page 4 Anchor Dolly Setup Assembling the Anchor Dolly  Loosen the knobs from the center of the anchor dolly and spread it on the floor.  Then tighten the knobs of the dolly again to secure it properly. NOTE: Lock down the wheels using provided brakes to keep the dolly in a static position.
  • Page 5 NOTE: We provide a plastic stopper for 17ft scissor Crane and use it when there is no tripod Holder in the dolly just like in Proaim Anchor Tripod Dolly.  Insert the plastic stopper into the gravity robust tripod stand and secure it properly with a screwdriver.
  • Page 6  Now mount the stand on dolly, as shown in the image. NOTE: This excellent combination of Proaim Gravity Tripod Stand and Anchor Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.  Insert the strap between the dolly & stand, press the strap button, pull out the strap, and insert the strap-end into the strap rest.
  • Page 7 NOTE: Check the Scissor Jib level with the help of a Bubble Leveler. You can adjust the height of jib stand to keep your jib levelled.  Loosen the gimbal bracket bolts then insert the two guide rods on either side. ...
  • Page 8 Weight Rod Setup  Insert Weight Rod and secure properly with a knob.  Insert the weight into the weight rod. NOTE: Weight will be added according to the setup required to balance the camera properly.  Both the ends are secure with closers. ...
  • Page 9  After attaching the v-mount battery, you can operate the scissor jib in 2 alternate ways. If you press the button to the battery side, it will be operated by the scissor jib battery, and if you press it from the power side, it will run on the power.
  • Page 10 Gimbal Fluid Head Setup  Attach Gimbal Fluid Head and lock it with the help of provided knob. NOTE: Gimbal Fluid Head comes attached with jib plate. If in case it gets detached, you can easily mount it. Steady Fluid Head ensures perfect alignment of your 3-Axis Gimbal on Scissor Crane.

  • Page 11: Maintenance

    If the camera weight is 2kg, the jib is balanced with 24+7= 31kg If the camera weight is 10kg, the jib is balanced with 24+35= 59kg YOUR PROAIM POWERMATIC SCISSOR 17FT CAMERA JIB CRANE PACKAGE ALL DRESSED UP AND READY TO GO!
  • Page 12 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
