What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Combo-1
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
Curve-120 Curved Camera Slider with Motion
Control System
A s s e m b l y M a n u a l
Camera Slider
1 x Allen key-3/16"
Plastic screw driver
Bag & Strap
statutes or in writing by the Publisher.
(SL-CUR-120-MC)
Camera Plate
1/4"Camera Bolt
All rights reserved.
2 x End Feet and
1 x Centre feet
2 x Knob
1
Advertisement
Table of Contents
Related Manuals for PROAIM Curve-120
Summary of Contents for PROAIM Curve-120
- Page 1 Curve-120 Curved Camera Slider with Motion Control System (SL-CUR-120-MC) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Combo-2 Universal Adapter 12v adapter 3mtr Wire 3 x Allen key Camera Plate (3/16”, 2.5mm,1.5mm) with Motor Remote Controller Grub screw + Strap 1/4” Camera Bolt, BS-100 Stopper Curved Camera slider with End feet Setup • Loosen the knobs of the end feet and open them.
- Page 3 • Place the end feet on the slider and then insert bolts, by matching the threads of the slider and the feet. Then tighten with an Allen key to secure. • Place the middle feet at the center of the slider and then insert bolts, by matching the threads of the slider and the middle feet.
- Page 4 • Properly insert the camera bolt into the camera plate. • Loosen the side knobs of the camera plate and attach it on the slider. Then, re-tighten the side knobs. Proaim Curve-120 curved camera slider with Motion Control System.
- Page 5 • Attach the camera plate by aligning its threads to the camera and then secure it using the screw driver (Not Included) • Then place the camera (Not Included) on the slider & properly tighten the knob of the camera plate. •...
- Page 6 • Then place the camera (Not Included) on the slider & properly tighten the knob of the camera plate. • Then attach the motor by connecting it properly to the slider. Thus, powering the slider. Caution: While performing this step, make sure that your camera plate is mounted onto the slider.
- Page 7 • Connect the electric plug of the 12v adapter wire to the universal adapter for generating the power-supply. • 12v Adapter: Attach the 12v Adapter with the controller and press the power button. 2. Battery • Battery: Attach the battery (Not Included) with the controller and press the power button.

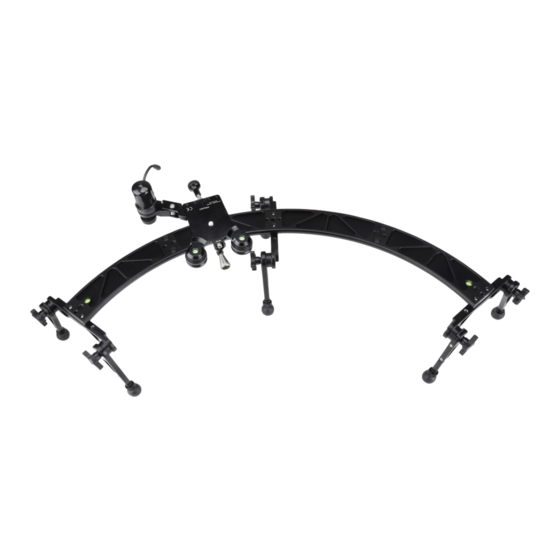

- Page 8 YOUR PROAIM CURVE-120 CURVED CAMERA SLIDER WITH MOTION CONTROL SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
