PROAIM CINEMA Series Assembly Manual
Ubangi multi-offset video film camera slider rig
Hide thumbs
Also See for CINEMA Series:
- Instruction manual (18 pages) ,
- Assembly manual (14 pages) ,
- Assembly manual (3 pages)
Table of Contents
Advertisement
Quick Links
1

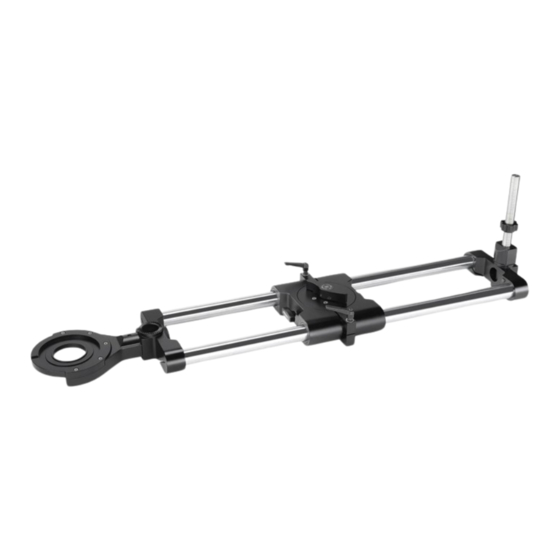

Ubangi Multi-Offset Video Film Camera Slider Rig (SL-UBGI-01)
A s s e m b l y M a n u a l

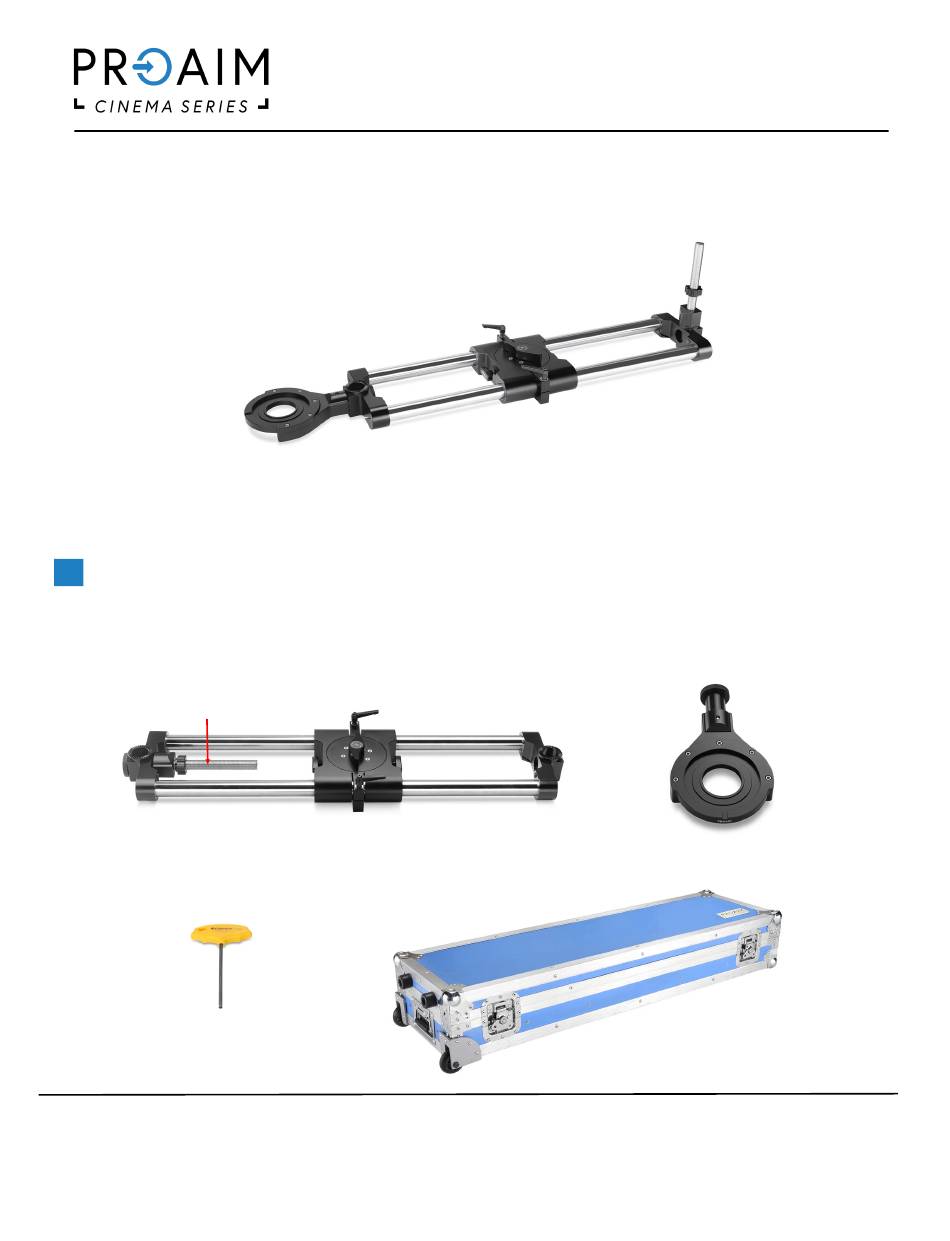

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Weight Rod
Ubangi Multi-Offset Slider Rig
Mitchell Plate
1 x T-Type Allen Key
Flight Case
(Size: 5mm)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Related Manuals for PROAIM CINEMA Series
Summary of Contents for PROAIM CINEMA Series
- Page 1 Ubangi Multi-Offset Video Film Camera Slider Rig (SL-UBGI-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 INDEX Sr. No Particulars Page No. Ubangi Slider Rig Setup Mitchell Plate Assembly Fluid Head Assembly Camera Mounting Weight Rod Assembly 360° Rotation Function Sliding Function Final Setup...
- Page 3 Ubangi Multi-Offset Slider Rig Setup • Mount the Ubangi Multi-Offset Slider on the Toro Stand (Not Included) and tighten it using the locking knob. NOTE: Stabilize the Slider in one position using our glove-friendly tripod locking knob. • The Ubangi Multi-Offset Slider Rig is successfully mounted on the Toro Stand.
- Page 4 Mitchell Plate Assembly • Remove the knob of the Mitchell Plate. • Attach the Mitchell Plate and tighten its knob, as shown in the image. • Now, tighten all the bolts of the Mitchell Plate using the 5mm Allen key. Fluid Head Assembly •...
- Page 5 • After mounting the Fluid Head, attach the castle ring and properly mount it. • Press the push pin of the Fluid Head and remove the Camera Plate. Camera Mounting • Attach the Camera Plate to the Camera (Not Included) and tighten its bolts using a screwdriver (Not...
- Page 6 Weight Rod Assembly • Remove the weight closer from the weight rod and insert the weight (Not Included). • After inserting the weight, re-insert the weight and properly tighten it. NOTE: The Camera can be set horizontally and vertically on either side of the rig for boundless creativity and adaptability.
- Page 7 • After positioning Ubangi Slider, re-tighten both the side knobs, as shown in the image. Sliding Function • Loosen the both the locking levers. • Slide the Ubangi Slider to the left or right per your requirement. • After setting the position of the Slider, re-tighten the locking levers.
- Page 8 YOUR PROAIM UBANGI MULTI-OFFSET VIDEO FILM CAMERA SLIDER RIG ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
