Falcon Stabilized Camera Rickshaw Support
(RCSW-FLCN)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Push-Pull Telescopic Handle
Castor Wheel with
Robust Platform
360° Rotation
with Break
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM Cinema Series
Summary of Contents for PROAIM Cinema Series

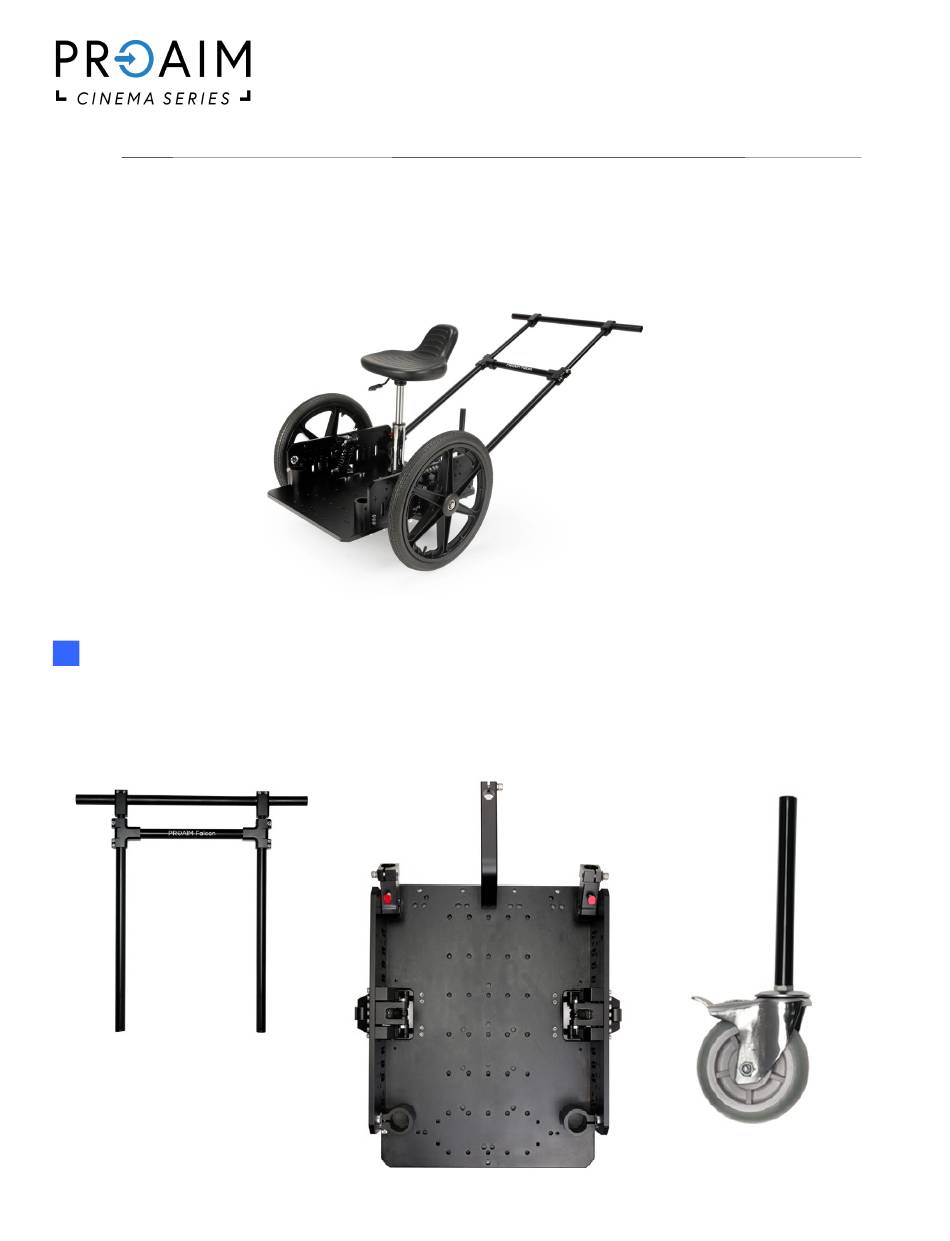

- Page 1 Falcon Stabilized Camera Rickshaw Support (RCSW-FLCN) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Push-Pull Telescopic Handle Castor Wheel with Robust Platform...
- Page 2 2 x Wheels Seat & Seat Post 19mm- 2 x Ratchet Rod Adaptor 2 x Bolts Spanner Knob Seat Mount Bracket 3 x 5mm, 6mm, 5/16 (Allen Key) All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
- Page 3 FEATURES Telescopic Push/Pull Handle Easy of Movement Adjustable Operator Seat length range from 32”- 54” allows ease of handling Comfort & Convenience Seat Post Easy to Adjust Position 360-degree movement Seat Break Adjust the Seat Position Main Chassis Adjustable Height Position Seat Bridge Adjustable Seat Post Position Wheels Height Adjustment...
- Page 4 Falcon Rickshaw Setup The Rod adapter already has four bolts. Loosen and remove them with the help of an Ellen key. Align the threads of the rod adapter and the robust platform together and secure them with bolts. ...
- Page 5 Insert the bolt into the center hole of the wheel. Then bolt this wheel through 3 holes present on the side of the platform. Repeat the same process on the other side of the platform. Tighten the bolts using a 19mm spanner to secure the wheels to the platform.
- Page 6 The seat pole has a height adjusting fea- ture so you can easily set your seat up and down. Lock the seat to your desired position using the seat break. Pull the red pull pin and insert the main chassis into the adjustable end mounts.

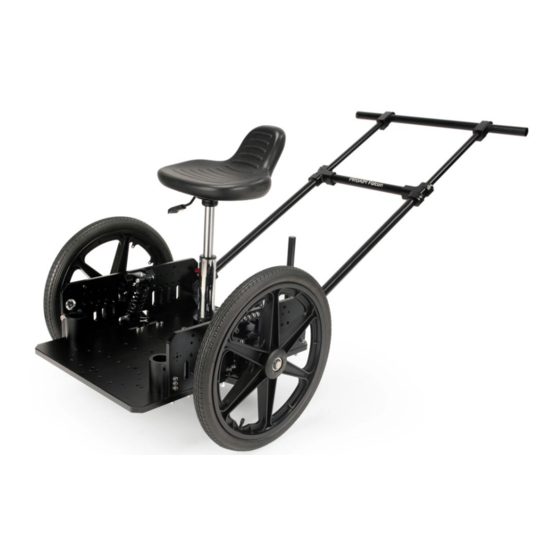

- Page 7 YOUR PROAIM FALCON STABILIZED CAMERA RICKSHAW SUPPORT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
