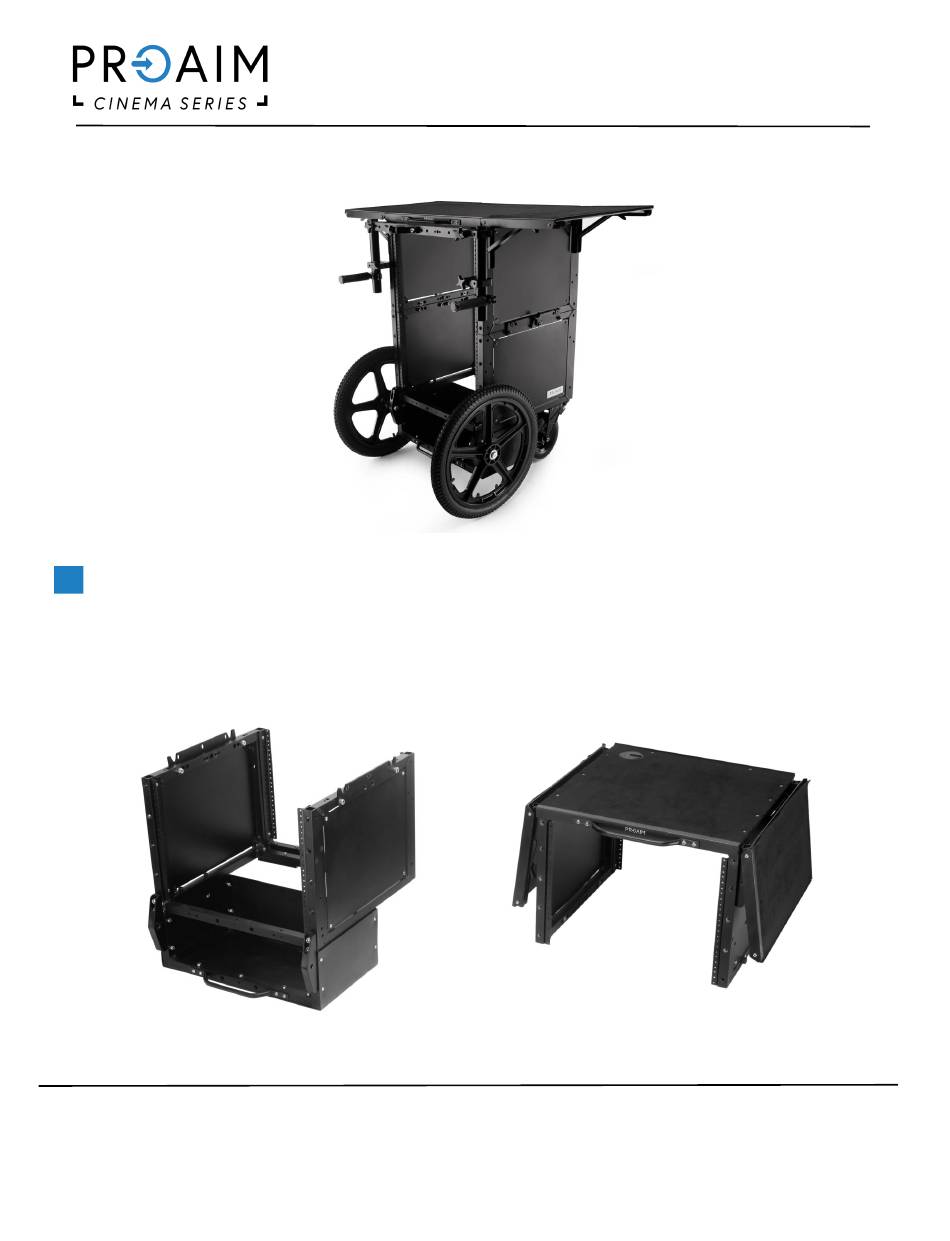

Soundchief Cart | Vertical Workstation (CT-SDCF-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Top Shelf
Bottom Shelf
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM CINEMA Series

Summary of Contents for PROAIM CINEMA Series

  • Page 1 Soundchief Cart | Vertical Workstation (CT-SDCF-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
  • Page 2 Speed Rail Crossbar 9” Dovetail Wheels 4 x Speed Rail Clamps 20” Pneumatic Wheels 2 x Handles 4 x knobs & washer 3 x Shelf knobs for Speed Rail Soundchief Cart Setup 9” Dovetail Wheels Assembly • Unlock the 9” dovetail wheel’s lever and insert the wheel by sliding into the cart bottom base and tighten it properly.
  • Page 3 20” Pneumatic Wheels Assembly • Insert the bolt into the center of the 20" wheel and then insert the bush from the opposite side, as shown in the image. • Attach this wheel to the side of the cart and secure it by tightening the bolt using a spanner.
  • Page 4 • Slide the Speed Rail Clamp into the crossbar and insert both the knob and washer. NOTE: Ensure that you slide the Speed Rail Clamp from the flat side. • After inserting the knob, securely tighten it. • Repeat the same process to insert the Speed Rail Clamp on the other side of the crossbar.
  • Page 5 • After opening the shelf, be sure to secure it by locking it. • Attach the single speed rail clamp to the cart by aligning their threads, then insert the speed rail knob and tighten it securely. • Insert the speed rail through the speed rail clamp holes and tighten it properly using the speed rail clamp knob.
  • Page 7 YOUR PROAIM SOUNDCHIEF CART VERTICAL WORKSTATION ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
