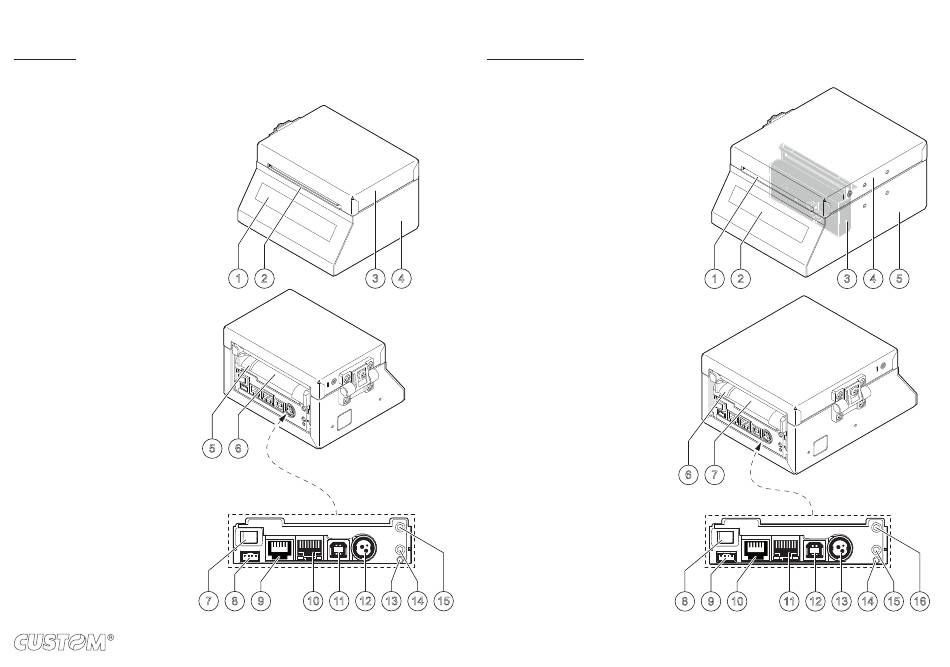

DEVICE DESCRIPTION
TK180 MET
1. Display
2. Paper out
3. Device cover
4. Device chassis
5. Adjustable cursor for
paper in
6. Paper input
7. ON/OFF key
8. Connector for low paper
sensor (external)
9. RS232 serial port (RJ45)
10. Ethernet port
11. USB port
12. Power supply port
13. Status LED
14. FF key
15. LF key
1
2
3
5
6
7
8
9
10
11
12
TK180 MET PRES
1. Paper out
2. Display
3. Autocutter
4. Device cover
5. Device chassis
6. Adjustable cursor for
paper in
7. Paper input
8. ON/OFF key
9. Connector for low paper
4
sensor (external)
10. RS232 serial port (RJ45)
11. Ethernet port
12. USB port
13. Power supply port
14. Status LED
15. FF key
16. LF key
13
14
15
1
2
3
6
7
8
9
10
11
12
13
4
5
14
15
16
7
