Custom Audio Electronics KPM180H User Manual

Hide thumbs Also See for KPM180H:
Table of Contents

Advertisement

Quick Links

See also: User Manual
AVIATION
USER MANUAL
KPM180H
TK180

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KPM180H and is the answer not in the manual?

Questions and answers

Related Manuals for Custom Audio Electronics KPM180H

Summary of Contents for Custom Audio Electronics KPM180H

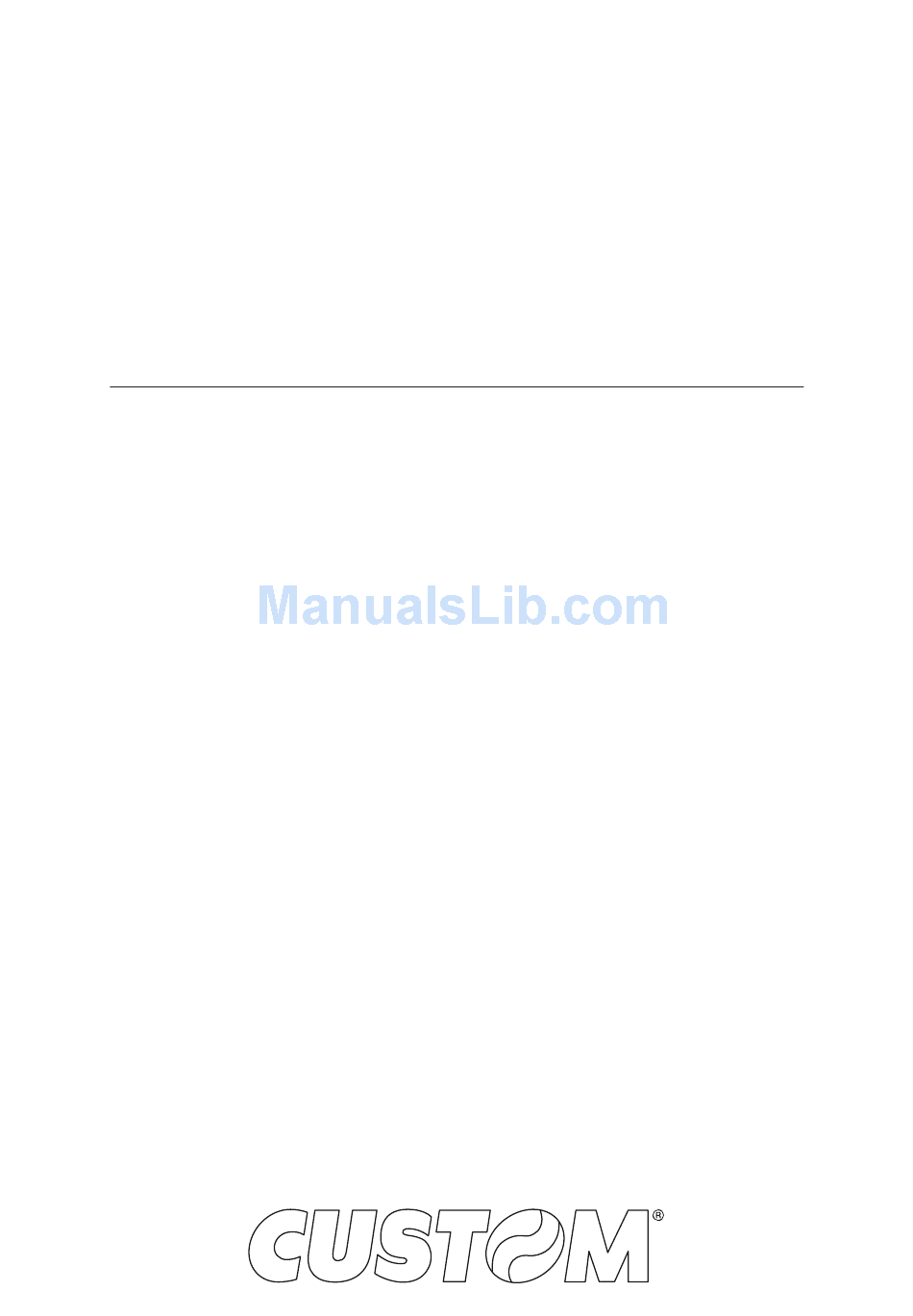

  • Page 1 AVIATION USER MANUAL KPM180H TK180...
  • Page 3 CUSTOM S.p.A. GENERAL SAFETY INFORMATION THE CE MARK AFFIXED TO THE PRODUCT CERTIFY THAT THE Via Berettine 2/B Your attention is drawn to the following actions PRODUCT SATISFIES THE BA- that could compromise the characteristics of the 43010 Fontevivo (PARMA) - Italy SIC SAFETY REQUIREMENTS.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1 INTRODUCTION ............. . 7 2 IDENTIFICATION OF THE MODELS .
  • Page 6 7 MAINTENANCE ............. . 73 7.1 Printer paper jam .

  • Page 7: Introduction

    1 INTRODUCTION This document is divided into sections and chapters. Each chapter can be reached by the index at the beginning of this document. The index can be reached by the button on each page as shown in the diagram below. Link to table of contents Notes reference Numbered title...

  • Page 9: Identification Of The Models

    2 IDENTIFICATION OF THE MODELS NOMENCLATURE DESCRIPTION KPM180H base coniguration (OEM model with 200 dpi print head) KPM180H STD KPM180H PRES KPM180H STD with presenter KPM180H PRES UHF KPM180H PRES with RFID reader/writer TK180 base coniguration (TKT model with 200 dpi print head) with metal chassis TK180 MET TK180 base coniguration (TKT model with 200 dpi print head) with plastic chassis TK180 PLAS...

  • Page 11: Description

    Make sure that all the components illustrated below are present and that there are no signs of damage. If there are, contact Customer Service. KPM180H STD 1. Installation instruction sheet 2. Device 3.
  • Page 12 KPM180H PRES 1. Device 2. Installation instruction sheet 3. Paper block guide 4. External low paper sensor with cable 5. Reducer for paper width...
  • Page 13 KPM180H PRES UHF 1. Device 2. Installation instruction guide 3. Paper block guide 4. External low paper sensor with cable 5. Reducer for paper width...
  • Page 14 TK180 MET 1. Short guide 2. Device 3. Reducer for paper width 4. AC adapter...
  • Page 15 TK180 PLAS 1. Short guide 2. Device 3. Reducer for paper width 4. AC adapter...

  • Page 16: Device Components: External Views

    3.2 Device components: external views KPM180H STD 1. Device chassis 2. Device cover 3. Opening lever for device cover 4. Paper out 5. Status LED 6. LF LINE FEED key 7. FF FORM FEED key 8. Paper input 9. Adjustable cursor for paper in 10.
  • Page 17 KPM180H PRES 1. Device chassis 2. Device cover 3. Opening lever for device cover 4. Opening lever for presenter cover 5. Paper out 6. Status LED 7. LF LINE FEED key 8. FF FORM FEED key 9. Presenter chassis 10. Paper input 11.
  • Page 18 KPM180H PRES UHF 1. RFID support chassis 2. Device chassis 3. Opening lever for device cover 4. Device cover 5. Opening lever for presenter cover 6. Paper out 7. Status LED 8. LF LINE FEED key 9. FF FORM FEED key 10.
  • Page 19 TK180 MET 1. Device chassis 2. Device cover 3. Paper out 4. Display 5. Paper input 6. Adjustable cursor for paper in 7. Keys and connectors panel (see following paragraphs)
  • Page 20 TK180 PLAS 1. Connectors cover 2. Display 3. Paper out 4. LF LINE FEED key 5. FF FORM FEED key 6. ON/OFF key 7. Device cover 8. Opening lever for device cover 9. Paper input 10. Adjustable cursor for paper in 11.

  • Page 21: Device Components: Keys And Connectors Panel

    3.3 Device components: keys and connectors panel KPM180H STD, KPM180H PRES, KPM180H PRES UHF, TK180 MET 1. ON/OFF key 2. Connector for low paper sensor (external) 3. RS232 serial port (RJ45) 4. Ethernet port 5. USB port 6. Power supply port 7.

  • Page 22: Device Components: Internal Views

    3.4 Device components: internal views KPM180H STD, TK180 MET, TK180 PLAS 1. Printing head with temperature sensor 2. Top mobile sensor for detecting black mark on the thermal side of paper or hole between tickets 3. Bottom mobile sensor for detecting black mark on the thermal side of paper or hole between tickets 4.
  • Page 23 KPM180H PRES 1. Printing head with temperature sensor 2. Top mobile sensor for detecting black mark on the thermal side of paper or hole between tickets 3. Bottom mobile sensor for detecting black mark on the thermal side of paper or hole between tickets 4.
  • Page 24 KPM180H PRES UHF 1. RFID reader 2. Printing head with temperature sensor 3. Top mobile sensor for detecting black mark on the thermal side of paper or hole between tickets 4. Bottom mobile sensor for detecting black mark on the thermal side of paper or hole between tickets 5.

  • Page 25: Product Label

    3.5 Product label = Product code (14 digits) = Serial number = Hardware release FW type = Firmware type product label firmware label E xx XXXXXXXXXXXXXX 0000000000000000000 FW type...

  • Page 26: Key Functions: Power Up

    3.6 Key functions: power up POWER UP Hold down Hold down printing Mass Storage SETUP report enabled Fast push Fast push skip the enter the SETUP MODE SETUP MODE Fast push Fast push enter the print the report and enter the SETUP PROCEDURE SETUP PROCEDURE for printer parameters...

  • Page 27: Key Functions: Standby

    3.7 Key functions: standby STANDBY Fast push Fast push Advance the paper (preset length) Is the “Black mark position” parameter set on “Disabled”? (see setup) printing perform the demo ticket ticket alignment...

  • Page 28: Status Messages

    3.8 Status messages The status LED indicates hardware status of device. Given in the table below are the various LED signals and the cor- responding device status. STATUS LED DESCRIPTION DEVICE OFF GREEN DEVICE ON: NO ERROR RECEIVE DATA RECEPTION ERRORS GREEN (PARITY, FRAME ERROR, OVERRUN ERROR) COMMUNICATION...

  • Page 29: Display Messages

    3.9 Display messages TK180 MET, TK180 PLAS The display shows the emulation currently set, the irmware release and a device status message on the upper row. The lower row reports an error code (for example, ERR8) and the error description, in case of not successful outcome of commands (see following image). EMULATION FIRMWARE DEVICE STATUS RELEASE MESSAGE X.XX ONLINE ERRx <description>...

  • Page 31: Installation

    4 INSTALLATION 4.1 Fastening NOTE: All the dimensions shown in following igures are in millimetres. KPM180H STD The device is provided with four ixing holes on the bottom of device (see following igure). To fasten the device on a panel,  use four M3 screws. 4 x M3 It's very important to consider the screws length not to damage the internal components placed near the ixing holes (see  following igure). Device chassis Fixing panel Section A-A Fixing screw The screw length (L) will be calculated according to the thickness of the panel (Sp) on which the device is ixed, as follows: L ≤ 10 mm + Sp For example, if panel thickness is 10 mm (Sp = 10 mm), the maximum length for screws will be 20 mm.
  • Page 32 KPM180H PRES, KPM180H PRES UHF The device is provided with six ixing holes on the bottom of device (see following igure). To fasten the device on a panel,  use six M3 screws. 32.5 6 x M3 Additionally, the panel must provide an opening for dust of paper that meets the following measures (in millimetres): min. 9...
  • Page 33 It is very important to consider the screws length not to damage the internal components placed near the ixing holes (see  following igure). Device chassis Device chassis Fixing panel Fixing panel Detail A Detail B Fixing screw Fixing screw The screw length (L) will be calculated according to the thickness of the panel (Sp) on which the device is ixed, as follows: L ≤ 5 mm + Sp  (Detail A) L ≤ 10 mm + Sp  (Detail B) For example, if panel thickness is 10 mm (Sp = 10 mm), The maximum screw length will be 15 mm (detail A) or 20 mm (detail B).
  • Page 34 TK180 PLAS The device is provided with two slots for the mounting of the machine on a panel. The slots are placed at the bottom of the machine (see following igure). 71.43 58.5...
  • Page 35 Additionally, the panel can provide an opening for the passage of the connection cables that meets the hole at the bottom of the device. The measures (in millimeters) of the opening are shown in the following igure: 58.5...

  • Page 36: Low Paper Sensor

    4.2 Low paper sensor KPM180H STD, KPM180H PRES, KPM180H PRES UHF The device includes a low paper sensor with the cable (see following igure). To ix the sensor, use an M3 screw not supplied. MATERIAL NOT MATERIAL INCLUDED INCLUDED Low paper sensor Fixing screw M3 Low paper sensor board Connector Low paper wiring For the assembly procedure, proceed as follows: Low paper witing...
  • Page 37 Low paper wiring Connect the wiring coming from the low paper sensor board at the connector shown in figure.

  • Page 38: Connections

    4.3 Connections The following igure shows the possible connections for the device. RS232 POWER Correctly insert the Serial cable power supply (for available connector (see serial cables, following paragraphs) see chapter 9) standard cable (optional) ETHERNET ETHERNET UTP Power supply cable CrossOver standard cable (optional) standard cable (pin-to-pin) Power supply serial device USB device ATTENTION: In some conditions, we recommend the installation of a ferrite core on the power supply cable.

  • Page 39: Pinout

    4.4 Pinout POWER SUPPLY Tripolar female connector 1 GND 2 +24 Vdc 3 GND 4 Frame GND ATTENTION: Respect power supply polarity. NOTE: Power supply cable The following igure shows the connector pinout of the power supply cable for the device: Tripolar male connector n.c. +24 V Power supply cable USB INTERFACE Female USB type B connector 1 USB0-VBUS (in) 2 USB0_D-...

  • Page 40: Rs232 Serial Interface

    RS232 SERIAL INTERFACE Female RJ45 connector 1 DTR 2 TX (out) During transmission, takes the values -VRS232 and +VRS232 depending on data 3 RX (in) During reception, takes the values -VRS232 and +VRS232 depending on data 4 DR 5 GND 6 DT When +VRS232, device is power on 7 CT...

  • Page 41: Ethernet Interface

    ETHERNET INTERFACE Female RJ45 connector 1 RX +1 2 +3.3V ETH 3 RX -1 4 TX +1 5 +3.3V ETH 6 TX -1 7 n.c 8 GND 9 +3.3 V 10 LED-LNK 11 +3.3 V 12 LED-LAN 13 Shield 14 Shield NOTES: The functionality of two LED are speciied in the following tables: - For 10Base-T connection:...

  • Page 42: Driver And Sdk

    4.5 Driver and SDK The drivers are available for the following operating system: OPERATING DESCRIPTION INSTALLATION PROCEDURE SYSTEM Driver for Windows XP Driver for Windows VISTA (32/64bit) Driver for Windows 7 (32/64bit) From the Start menu, press Run and type-in the path where the SW Windows Driver for Windows 8 (32/64bit) was saved on your PC, then click OK.

  • Page 43: Operation

    5 OPERATION 5.1 Opening device cover KPM180H STD, KPM180H PRES, KPM180H PRES UHF TK180 PLAS Push the release lever Push the release lever in the direction shown in the figure. in the direction shown in the figure. Open the Open the device cover.
  • Page 44 TK180 MET Open the metallic cover. Open the device cover. Push the opening lever shown in figure.

  • Page 45: Adjusting Paper Width

    5.2 Adjusting paper width Paper width may be adjusted from 25 mm to 82.5 mm by moving the adjustable cursor as shown in the following igure. 90° To manage paper width from 20 mm to 25 mm, apply the spacer on the mobile paper guide (see following igure), then  adjust the paper width. NOTE: For some models, only the internal printer group is represented.

  • Page 46: Adjusting The Alignment Sensors

    5.3 Adjusting the alignment sensors The device is equipped with two mobile sensors for the detection of the alignment black mark placed both on the thermal side and on the non-thermal side of paper as shown in the following igure. The user will need to manually move these mobile sensors according to the position and the type of the black mark on the paper (see next paragraphs).
  • Page 47 To adjust the mobile sensors position according to the black mark position and type on paper, open the device cover (see paragraph 5.1) and move the sensors to the desired position using a small screwdriver or a pointed object. ATTENTION: To avoid damaging the sensor, use the plastic tabs as foothold for the screwdriver to push the sensor in the desired position.

  • Page 48: Switch The Device On

    5.4 Switch the device on KPM180H STD, KPM180H PRES, KPM180H PRES UHF IN DC 24V 1.6A Power supply (optional) Correctly insert the power supply connector with the flat side upwards. Connect the power adapter (optional) to the device. Use the type of electrical power supply indicated on the label.
  • Page 49 ON/OFF Switch device on pressing the ON/OFF key. The green LED (front and rear) turn on and the device is ready.
  • Page 50 TK180 MET IN DC 24V 1.6A Power supply (optional) Correctly insert the power supply connector with the flat side upwards. Connect the power adapter (optional) to the device. Use the type of electrical power supply indicated on the label. Power cord (optional) Connect the power cord (optional) to the power supply and to the mains outlet.
  • Page 51 ON/OFF Switch device on pressing the ON/OFF key. The display turns on and shows the message in figure. TK180 PLAS Remove the cover of the connector compartment by sliding it in the direction shown.
  • Page 52 Place the ferrite core of the power supply cable inside the connectors compartment. Power supply (optional) Correctly insert the power supply connector with the flat side upwards. Connect the power adapter (optional) to the device by placing the cable as shown. Use the type of electrical power supply indicated on the label.
  • Page 53 Power cord (optional) Connect the power cord (optional) to the power supply and the mains outlet. X.XX ONLINE ON/OFF Switch device on pressing the ON/OFF key. The display turns on and shows the message in figure.

  • Page 54: Loading The Paper Roll

    5.5 Loading the paper roll To change the paper proceed as follows. At every change of paper, check inside the device to locate and remove any scraps of paper. NOTE: For some models, only the internal printer group is represented. Close the device cover.
  • Page 55 thermal side ROOM thermal side ROOM Wait until the paper is automatically loaded.
  • Page 56 The following igure gives the limit positions of the paper roll related to the device for a correct paper loading without a  paper roll holder support. The direction of the paper will always form a maximum angle of 90 ° or -90 ° with the insertion plane of paper inside the device. 90° 90° Paper with thermal side on outside of roll -90°...

  • Page 57: Issuing Ticket

    5.6 Issuing ticket The device allows you to choose between different operating modes for the issuance of printed tickets. The operating modes shown in the following images, depend on the settings of the coniguration parameters and com- mands sent to the device. “EJECT” mode (KPM180H PRES, KPM180H PRES UHF) Paper input Printing head min 45° The device starts the ticket printing.
  • Page 58 Ejector rollers Paper output Ticket ejected min 45° The device directly ejects the ticket.
  • Page 59 “PRESENT” mode (KPM180H PRES, KPM180H PRES UHF) Printing head Paper input The device starts the ticket printing. Ejector rollers Autocutter When printing ends, the device cuts the ticket printed.
  • Page 60 Ticket presented Paper output Ejector rollers The device presents a portion of the ticket printed and hold it between the ejector rollers. Ticket withdrawn Paper output The user withdraws the ticket printed.

  • Page 61: Configuration

    6 CONFIGURATION 6.1 Coniguration mode To enter the coniguration mode and print a setup report with the operating parameters of the device, proceed as follows. ON/OFF LF LINE FEED ON/OFF LF LINE FEED rear keys front keys While pressing the LF LINE FEED key, switch on the device by pressing the ON/OFF key. PRINTER SETUP The device prints the report with the settings parameters. Follow the instruction printed on the paper or shown on display to proceed with configuration procedure.

  • Page 62: Setup Report

    6.2 Setup report The following igure shows the setup report of the device. The shown values for parameters are sample values; for the list  and the description of device parameters see the following paragraphs. DEVICE NAME AND <device name> FIRMWARE MODULES SCODE. <code> rel 1.00 DCODE. <code> rel 1.00 RELEASE FCODE. <code> rel 1.00 PRINTER SETTINGS 1 «••••••••» 640 ---------------------------------------------------------------------------- PRINTING HEAD STATUS PRINTHEAD WORKING GOOD!
  • Page 63 The following igure shows the setup report of the Ethernet parameters. The shown values for parameters are sample  values; for the list and the description of device parameters see the following paragraphs. ETH. SPEED = 10Mb/s DHCP Client ....... : Disabled ETHERNET IP Address ........: 192.168. 0. 1 PARAMETERS Subnet Mask ......: 255.255.240. 0 Default Gateway ......: 192.168. 0. 5 MAC Address ......: 00-0E-E2-0A-D2-D0 [ LF ] to modify parameter KEYS FUNCTIONS [ FF ]...

  • Page 64: Device Status

    HEAD TEMPERATURE POWER ON COUNTER number of power-ups made PAPER PRINTED centimetres of paper printed CUT COUNTER * number of cuts made DATE - TIME date and time NOTE: * : Only for KPM180H PRES, KPM180H PRES UHF.

  • Page 65: Printer Parameters

    6.4 Printer parameters The device allows the coniguration of the parameters listed in the following table. The parameters marked with the symbol are the default values. Settings remain active even after the device has been turned off and they are stored in non-volatile memory. PRINTER EMULATION Available emulations for the device: SERVICE used only for upgrade used for management of baggages ticket used for management of boarding ticket...
  • Page 66 The "cut & hold" mode need to be enabled by protocol. Otherwise, the device performs an eject even if presenter value is set. This parameter is valid only for KPM180H PRES, KPM180H PRES UHF. Setting of speed and printing quality:...
  • Page 67 Position of the alignment black mark and choice of appropriate black mark sensor: BLACK MARK POSITION Disabled = the black mark alignment is not performed Top =   the black mark position is detected by the top sensor (relection) Bottom =   the black mark position is detected by the bottom sensor (relection) Transparent = the black mark is detected by the bottom sensor and the top sensor placed in front of (transparence) BLACK MARK THRESHOLD Threshold value (in percent) for the recognition of the presence of black mark by the black mark sensor:...
  • Page 68 This parameter deines the point for the black mark alignment: SERVICE ALIGNMENT TYPE Edge = the point for the black mark alignment is the frontal edge of black mark Center = the point for the black mark alignment is the center of black mark NOTES: The parameter is printed only with “Service” emulation enabled. In ATB or BTP emulation, the point for the black mark alignment is always set to the center of black mark.
  • Page 69 This parameter enables/disables the management of the ERR5: ERR5 STOCKTYPE UNKNOWN Disabled = ERR5 management disabled Enabled = ERR5 management enabled CASING TYPE Type of device casing: Plastic plastic casing Metal = metallic casing NOTE: The parameter is printed only for TK180 MET, TK180 PLAS. Setting of the performing of the print head test: PRINTHEAD TEST POWERON...

  • Page 70: Ethernet Parameters

    6.5 Ethernet parameters These devices allow the coniguration of the parameters listed in the following table. The parameters marked with the symbol are the default values. Settings remain active even after the device has been turned off and they are stored in non-volatile memory. DHCP CLIENT Setting of the DHCP protocol: Disabled protocol disabled Enabled = protocol enabled...

  • Page 71: Hexadecimal Dump

    6.6 Hexadecimal dump This function is used for the diagnosis of the characters received from the communications port. Characters are printed as hexadecimal code and the corresponding ASCII code (see below). Each line is preceded by a counter in hexadecimal that indicates the number of bytes received.

  • Page 73: Maintenance

    7 MAINTENANCE 7.1 Printer paper jam Open the device cover (see previous paragraphs). Close the device cover. ROOM Remove the damaged paper and check the presence Insert the paper for paper scraps inside the device. Carefully remove all (see previous paragraphs). paper scraps.

  • Page 74: Autocutter Paper Jam

    7.2 Autocutter paper jam KPM180H PRES, KPM180H PRES UHF Open the printer cover (see previous paragraphs). Lift the presenter cover. Start the automatic unlocking procedure by pressing the LF LINE FEED key. Push the presenter Try to remove the paper.
  • Page 75 Inspection window Locate the inspection window for the autocutter placed in the bottom of the presenter. Remove the damaged paper and check the presence for paper scraps inside the printer; carefully remove all scraps of paper. If necessary, use tweezers. Blade Insert a screwdriver in the inspector window and turn the worm screw...

  • Page 76: Planning Of Cleaning Operations

    If you use the device in dusty environments, you must reduce the intervals between the cleaning operations. For some models, only the internal printer group is represented. (1) Only for KPM180H PRES, KPM180H PRES UHF. (2) Only for TK180 MET, TK180 PLAS. Don't use any ammonia-based product.

  • Page 77: Cleaning

    7.4 Cleaning For periodic cleaning of the device, see the instructions below Sensors Paper path Disconnect the power supply cable and Disconnect the power supply cable and open the device cover (see paragraph 5.1). open the device cover (see paragraph 5.1). ATTENTION: ATTENTION: Do not use alcohol, solvents, or hard brushes.
  • Page 78 Printing head Platen roller Disconnect the power supply cable and Disconnect the power supply cable and open the device cover (see paragraph 5.1). open the device cover (see paragraph 5.1). ISOPROPYL ALCOHOL ISOPROPYL ALCOHOL ATTENTION: ATTENTION: Do not use solvents, or hard brushes. Do not use solvents, or hard brushes.
  • Page 79 Autocutter Disconnect the power supply cable and open the device cover (see paragraph 5.1). ATTENTION: Do not use alcohol, solvents, or hard brushes. Do not let water or other liquids get inside the device. Alcohol, solvent Clean the cutter by using compressed air. Push the opening lever and lift the presenter cover.
  • Page 80 Case Display Disconnect the power supply cable. Disconnect the power supply cable. ATTENTION: ATTENTION: Do not use alcohol, solvents, or hard brushes. Do not use alcohol, solvents, or hard brushes. Do not let water or other liquids get inside the machine. Do not let water or other liquids get inside the device.

  • Page 81: Upgrade Irmware

    7.5 Upgrade irmware Upgrade irmware can be performed by using the “PrinterSet” software tool. The “PrinterSet” software tool and the latest irmware version of the device are available in the DOWNLOAD area of the site  www.custom.biz. To upgrade irmware, proceed as follows: Serial Printer Plug the device to a PC Start the “PrinterSet” software tool. by using one of the available connections. For further information about the use of “PrinterSet”, refer to the dedicated manual. ATTENTION: During communication between PC and printer for the irmware update it is strictly forbidden to disconnect the com- munication cable or to remove the power supply of the devices not to endanger the proper functioning of the printer.

  • Page 83: Specification

    8 SPECIFICATION 8.1 Hardware speciications Operating temperature Head temperature, paper presence, mobile detectors of Sensors black mark or translucent gap/hole (setting by software), cover open, external low paper Display Dot matrix 120x17 LCD TK180 MET module size 124.1 (W) x 26 (H) x 5.8 (T) mm Dot matrix 122x32 LCD TK180 PLAS module size 83.4 (W) x 28.2 (H) x 5.1 (T) mm...
  • Page 84 External roll diameter max. 200 mm External roll core diameter 25 mm (+ 1 mm) Paper end Not attached to roll core Core type Cardboard or plastic AUTOCUTTER (KPM180H PRES, KPM180H PRES UHF) Paper cut Total Estimated life 1000000 cuts...
  • Page 85 TRANSPONDER SPECIFICATIONS (KPM180H PRES UHF) Supported transponders (UHF Ultra High Frequency UHF Gen 2 RFID 900 MHz) DEVICE ELECTRICAL SPECIFICATIONS Power supply 24 Vdc ±10% (optional external power supply) Medium consumption 1.6 A Typical consumption 1.5 A Standby consumption KPM180H STD, 0.04 A...

  • Page 86: Device Dimensions

    8.2 Device dimensions KPM180H STD Length 97.5 mm Height 67 mm Width 108 mm Weight 800 g NOTE: All the dimensions shown in following igures are in millimetres and referred to devices with closed covers.
  • Page 87 KPM180H PRES Length 149 mm Height 67 mm Width 108 mm Weight 1500 g NOTE: All the dimensions shown in following igures are in millimetres and referred to devices with closed covers.
  • Page 88 KPM180H PRES UHF Length 227.5 mm Height 92 mm Width 110.2 mm NOTE: All the dimensions shown in following igures are in millimetres and referred to devices with closed covers. 110.2...
  • Page 89 TK180 MET Length 119 mm Height 85 mm Width 145.6 mm Weight 2240 g NOTE: All the dimensions shown in following igures are in millimetres and referred to devices with closed covers. 61.5 12.6...
  • Page 90 TK180 PLAS Length 185.9 mm Height 118.9 mm Width 130 mm Weight 1940 g NOTE: All the dimensions shown in following igures are in millimetres and referred to devices with closed covers. 185.9...

  • Page 91: Device Dimensions With Pretensioner Module

    8.3 Device dimensions with pretensioner module cod. 976AH010000002 (optional) KPM180H STD Length 169.5 mm Height 92 mm Width 116 mm Weight 1230 g NOTE: All the dimensions shown in following igures are in millimetres and referred to devices with closed covers. 3 x M3 4 x M3 61.5 152.6 164.5...
  • Page 92 KPM180H PRES Length 222 mm Height 92 mm Width 116 mm Weight 1930 g NOTE: All the dimensions shown in following igures are in millimetres and referred to devices with closed covers. 75.5 52.5 3 x M3 4 x M3 32.5 96.35 205.1 139.5...

  • Page 93: Device Dimensions With Paper Roll Holder

    8.4 Device dimensions with paper roll holder cod. 974HL010000002 (optional) TK180 MET Length 339 mm Height 160 mm Width 145.6 mm NOTE: All the dimensions shown in following igures are in millimetres and referred to devices with closed covers.

  • Page 94: Device Dimensions With Paper Roll Holder

    8.5 Device dimensions with paper roll holder cod. 974HL020000003 (optional) TK180 PLAS Length 341.5 mm Height 161 mm Width 130 mm NOTE: All the dimensions shown in following igures are in millimetres and referred to devices with closed covers. 156.1 341.5...

  • Page 95: Dimensions Of Power Supply

    8.6 Dimensions of power supply cod. 963GE020000046 (optional) Length 127 mm Height 35.5 mm Width 56 mm NOTE: All the dimensions shown in following igures are in millimetres. AC INLET n.c. +24V DC OUTPUT WIRE...

  • Page 97: Accessories

    9 ACCESSORIES The following table shows the list of available accessories for device: KPM180H STD DESCRIPTION CODE 963GE020000046 POWER SUPPLY (for technical speciications, see paragraph 8.1) 976AH010000002 PRETENSIONER MODULE 976AH010000001 PRESENTER MODULE + AUTOCUTTER (for technical speciications, see paragraph 8.1)
  • Page 98 TK180 MET DESCRIPTION CODE 963GE020000046 POWER SUPPLY (for technical speciications, see paragraph 8.1) 974HL010000002 PAPER ROLL HOLDER 26900000000026 ADAPTER CABLE RJ45M-DB9F length = 0.1 m 26500000000352 SERIAL CABLE DB9M-DB9F length = 1.8 m 26500000000356 USB CABLE TYPE A-B length = 1.8 m...
  • Page 99 26100000000311 MAINS CABLE SHUKO PLUG length = 2 m 26100000000313 MAINS CABLE UK PLUG length = 2 m TK180 PLAS DESCRIPTION CODE 963GE020000046 POWER SUPPLY (for technical speciications, see paragraph 8.1) 974HL020000003 PAPER ROLL HOLDER 26500000000352 SERIAL CABLE DB9M-DB9F length = 1.8 m...
  • Page 100 26900000000026 ADAPTER CABLE RJ45M-DB9F length = 0.1 m 26500000000356 USB CABLE TYPE A-B length = 1.8 m 26100000000311 MAINS CABLE SHUKO PLUG length = 2 m 26100000000313 MAINS CABLE UK PLUG length = 2 m...

  • Page 101: Alignment

    10 ALIGNMENT Device is provided with sensors for the use of alignment black mark in order to handle: roll of tickets with pre-printed ields and a ixed length; • Fan-fold of tickets with pre-printed ields and a ixed length. • The alignment black mark may be formed by black mark printed on paper; • hole between two tickets; • All alignment sensors are “relection” sensors: this kind of sensor emits a band of light and detects the quantity of light  relected to it. The presence of the black mark is therefore detected by the amount of light that returns to the sensor, con- sidering that the light is relected by the white paper and absorbed by the black mark.  To use tickets with holes, it is possible to use the same sensors as “transparence” sensors, coupled two by two: a beam of light is emitted by the transmitter sensor and the quantity of light which reaches the opposite receiver sensor is detected.

  • Page 102: Enable Alignment

    10.1 Enable alignment Device is provided with two sensors for alignment, placed as follows: one mobile sensor on the bottom lat, • one mobile sensor on the top lat. • To guarantee the alignment, it is necessary to correctly choose the sensor to use for the black mark detection depending on the type of black mark and its location on the ticket. To do this, you must enable the parameter “Black mark position”...

  • Page 103: Calibration

    10.2 Calibration The sensor calibration occurs automatically and consists in adjusting the quantity of light emitted to match the degree of whiteness of the paper used and the degree of black of the mark printed on paper. The device automatically performs the self-calibration during the setup procedure only if the “Black mark position” parameter is set to a value other than “Disabled”...
  • Page 104 The following igure shows an example of paper with holes: the outgoing voltage is constant while passing the paper between  two holes and presents a variation at each hole. In this case, the optimal value for the “Black mark threshold” parameter is placed about half of the variation. NON-THERMAL SIDE “Black mark threshold” THERMAL SIDE Peak...
  • Page 105 The following igure shows an example of paper with the non-thermal paper printed with black marks and other graphics (for  example, a barcode): the outgoing voltage is constant while passing the white paper between two black marks, presents a peak at each black mark and presents some “noise” at each barcode. In this case, the optimal value for the “Black mark threshold”...

  • Page 107: Technical Service

    11 TECHNICAL SERVICE In case of failure, send the 5 pieces of information listed below to our support team: 1. Product code 2. Serial number 3. Hardware release 4. Firmware release 5. Firmware type To get the necessary data, proceed as follows: XXXXXXXXXXXXXX 0000000000000000000 Customer Service Department:...

  • Page 109: Advanced Functions

    12 ADVANCED FUNCTIONS 12.1 File sharing The device can be connected to a PC with a USB cable. Through this kind of connection, it is possible to manage drivers, fonts and logos of the device and conigure the operating  parameters by iles sharing from Mass Storage. FILE SHARING FROM MASS STORAGE 12.2 Drivers installation It is possible to install the new driver update directly into the folder “Driver” on the Flash Drive of the device. To enter the Flash Drive by iles sharing from Mass Storage you need to enable the relative parameter during the conigu- ration process (see chapter 6).

  • Page 110: Setup

    12.3 Setup It is possible to conigure the default parameters for device setup by editing the “Setup.ini” ile on the Flash Drive. To enter the Flash Drive by iles sharing from Mass Storage, you need to enable the relative parameter during the con- iguration process (see chapter 6). After editing device’s parameter, simply save the “Setup.ini” ile to make the modiies activated. The “Setup.ini” ile is a coniguration ile that contains all the conigurable parameters listed in text format and divided into  some sections (indicated in square brackets). The available values for every parameter, are listed after the parameter name. The value marked with the symbol ‘ * ’ is the default one. To modify printer’s parameters, change the numeric value after the name of parameters. To set the parameter to the default value, change the numeric value with the symbol D.
  • Page 111 ATB ticket length 0*, 1, 2, 3 0 = Auto 1 = Auto No Recovery 2 = 8" Fixed 3 = 7" 3/8 Fixed Near Paper End 0*, 1 0 = Disabled 1 = Enabled Casing Type 0, 1* 0 = Metal 1 = Plastic After Cut Ejecter Type 0*, 1...
  • Page 112 USB Address Number 0*, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 0 = 0 4 = 4 8 = 8 1 = 1 5 = 5 9 = 9 2 = 2 6 = 6 10 = None 3 = 3 7 = 7 AEA Protocol STX...
  • Page 116 CUSTOM S.p.A. World Headquarters Via Berettine, 2/B - 43010 Fontevivo, Parma ITALY Tel. +39 0521 680111 - Fax +39 0521 610701 info@custom.biz - www.custom.biz All rights reserved www.custom.biz...
