Summary of Contents for Intermec ITRF91501

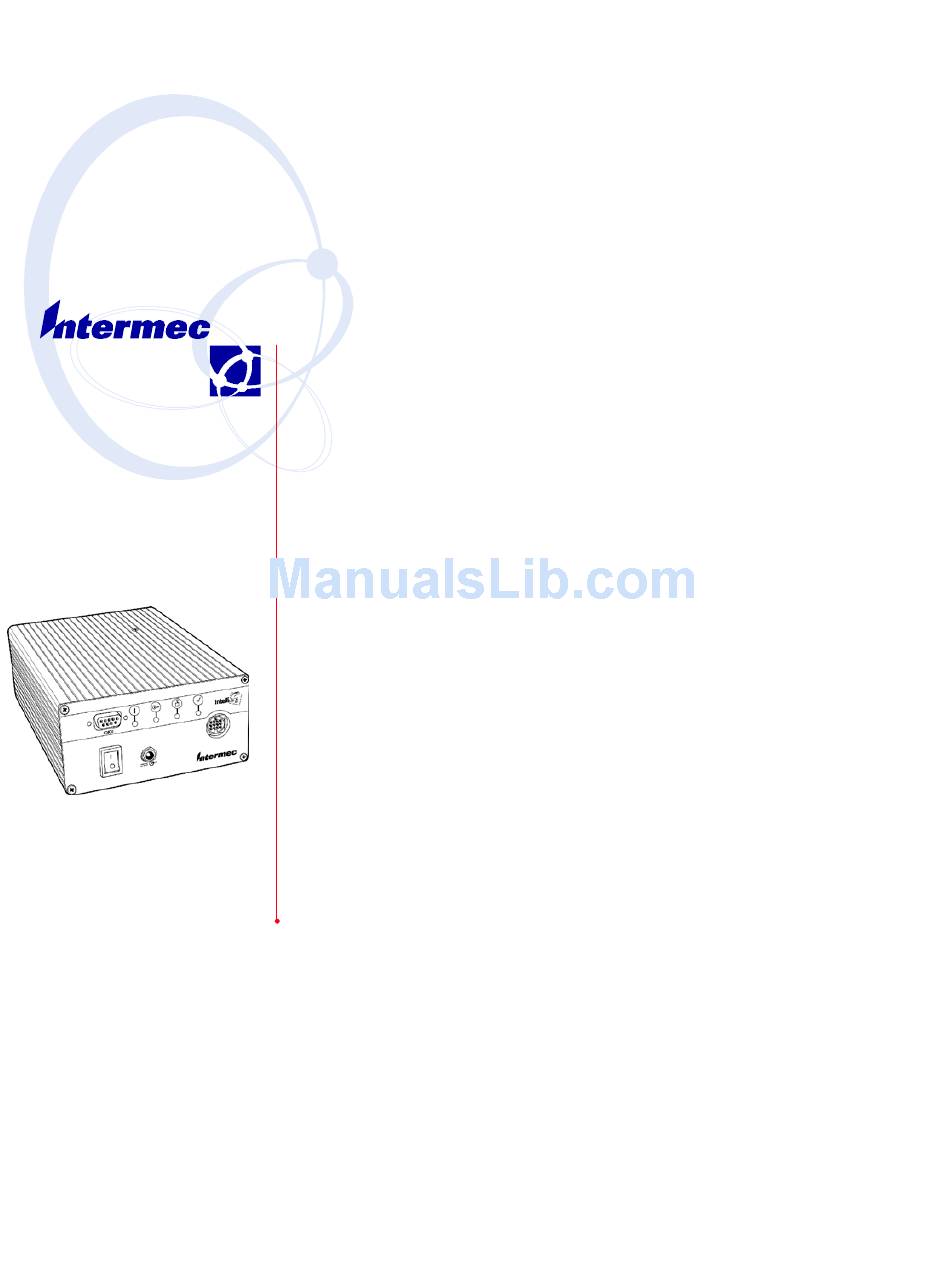

- Page 1 Quick Start Guide ITRF91501 Reader...
-
Page 2: Packing List
ITRF91501 Reader Quick Start Guide Packing List WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Check to ensure that you receive these items:... -
Page 3: Host Communication
Serial Data In + to the Fixed Reader from the host Serial Data In -- to the Fixed Reader from the host The default baud rate is 115.2 kbps with 8 data bits, no parity, and 1 stop bit. ITRF91501 Reader Quick Start Guide... -
Page 4: Power Requirements
ITRF91501 Reader Quick Start Guide Power Requirements Power comes in from 8 to 10 volts DC. The Fixed Reader uses less than 2 amps. Intermec supplies 9 volts DC at 2.4 amps from Intermec power supply, p/n: 351-066-001. User I/O... -
Page 5: Antenna Installation
Antenna Installation Ensure that you read the above warning before installing the antennas and using your Reader product. ITRF91501 Reader Quick Start Guide... - Page 6 ITRF91501 Reader Quick Start Guide Front view of the antenna 1. Review the locations for your Reader products. Ensure that you have carefully considered the safe distances for product placement for workers and any other personnel that may get in the RF path.
- Page 7 23 cm. (9.1 inches) or farther from the cover of the antenna assembly. Shipping Door #1 100” Max. distance to tag A singular antenna in a portal may be sufficient in applications where there is a known tag orientation. ITRF91501 Reader Quick Start Guide Shipping Door #2...
- Page 8 ITRF91501 Reader Quick Start Guide EXAMPLE 2: Two Product Line Conveyers, showing two antennas on each line. Two antennas in a crossing pattern provide angular diversity to improve read capability when tag orientation is unknown. The frames for these stations are PVC tubing with RF reflec- tive Mylar liner X2.
- Page 9 Connecting the Antenna to the Reader 1. Connect antenna cable to a port. 2. Connect a reverse-sex SMA terminator (Intermec p/n 345-004-001) to any port that does not have an antenna attached. " NOTE: Each port must have either an antenna or a termina- tor connected.
-
Page 10: Troubleshooting
ITRF91501 Reader Quick Start Guide 5. Review the front panel LEDs to become familiar with the status indications you will receive from your Reader. LEDs position (left to right) 0, 1, 2, 3 Power supply jack RS-232 or I (ON) O (OFF) switch... -
Page 11: Performance Specifications
RF Output Impedance Bus Interface Read Range Write Range Tag identification Write Rate Read current Protocol Vibration Channel switching ITRF91501 Reader Quick Start Guide Range --20 to +55 C (--4 to +131 --40 to +85 C (--40 to +185 10--95% relative humidity, non-con-... - Page 12 ITRF91501 Reader Quick Start Guide Table 1-5 (Continued) ITRF91501 Reader Specification Criteria Frequency stability Transmitter power output Safety Approvals Electrical Emissions RF Approval Shock www.intermec.com IITRF91501 Reader, Quick Start Guide- -August, 2002 *962054052* 962054052 REV A Range ±100 PPM 700 mW (min.), 800 mW (typical), 1000 mW(max.), @ connector.
