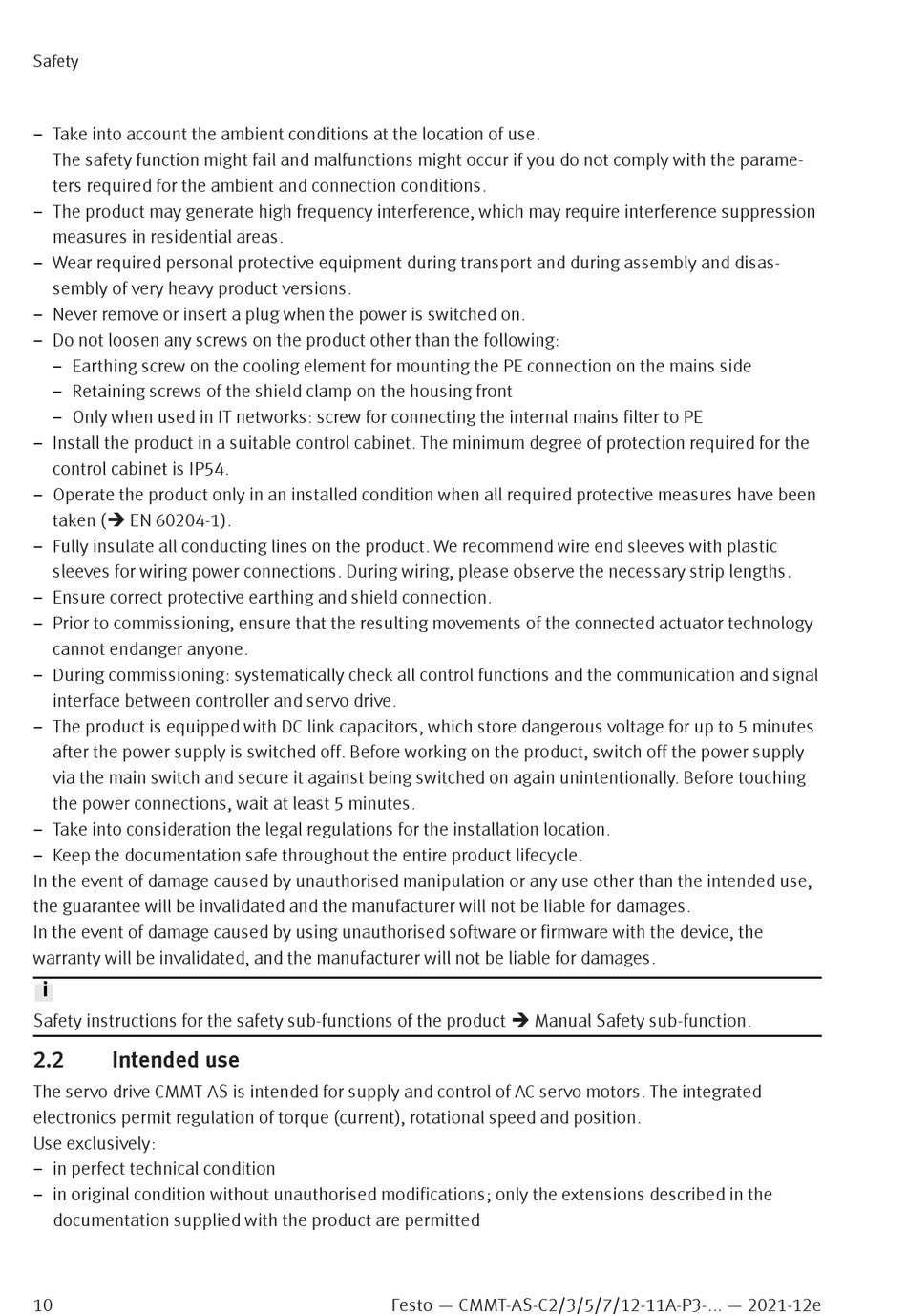

Safety
– Take into account the ambient conditions at the location of use.
The safety function might fail and malfunctions might occur if you do not comply with the parame-
ters required for the ambient and connection conditions.
– The product may generate high frequency interference, which may require interference suppression
measures in residential areas.
– Wear required personal protective equipment during transport and during assembly and disas-
sembly of very heavy product versions.
– Never remove or insert a plug when the power is switched on.
– Do not loosen any screws on the product other than the following:
– Earthing screw on the cooling element for mounting the PE connection on the mains side
– Retaining screws of the shield clamp on the housing front
– Only when used in IT networks: screw for connecting the internal mains filter to PE
– Install the product in a suitable control cabinet. The minimum degree of protection required for the
control cabinet is IP54.
– Operate the product only in an installed condition when all required protective measures have been
taken (è EN 60204-1).
– Fully insulate all conducting lines on the product. We recommend wire end sleeves with plastic
sleeves for wiring power connections. During wiring, please observe the necessary strip lengths.
– Ensure correct protective earthing and shield connection.
– Prior to commissioning, ensure that the resulting movements of the connected actuator technology
cannot endanger anyone.
– During commissioning: systematically check all control functions and the communication and signal
interface between controller and servo drive.
– The product is equipped with DC link capacitors, which store dangerous voltage for up to 5 minutes
after the power supply is switched off. Before working on the product, switch off the power supply
via the main switch and secure it against being switched on again unintentionally. Before touching
the power connections, wait at least 5 minutes.
– Take into consideration the legal regulations for the installation location.
– Keep the documentation safe throughout the entire product lifecycle.
In the event of damage caused by unauthorised manipulation or any use other than the intended use,
the guarantee will be invalidated and the manufacturer will not be liable for damages.
In the event of damage caused by using unauthorised software or firmware with the device, the
warranty will be invalidated, and the manufacturer will not be liable for damages.
Safety instructions for the safety sub-functions of the product è Manual Safety sub-function.
2.2

Intended use

The servo drive CMMT-AS is intended for supply and control of AC servo motors. The integrated
electronics permit regulation of torque (current), rotational speed and position.
Use exclusively:
– in perfect technical condition
– in original condition without unauthorised modifications; only the extensions described in the
documentation supplied with the product are permitted
10 Festo — CMMT-AS-C2/3/5/7/12-11A-P3-... — 2021-12e
