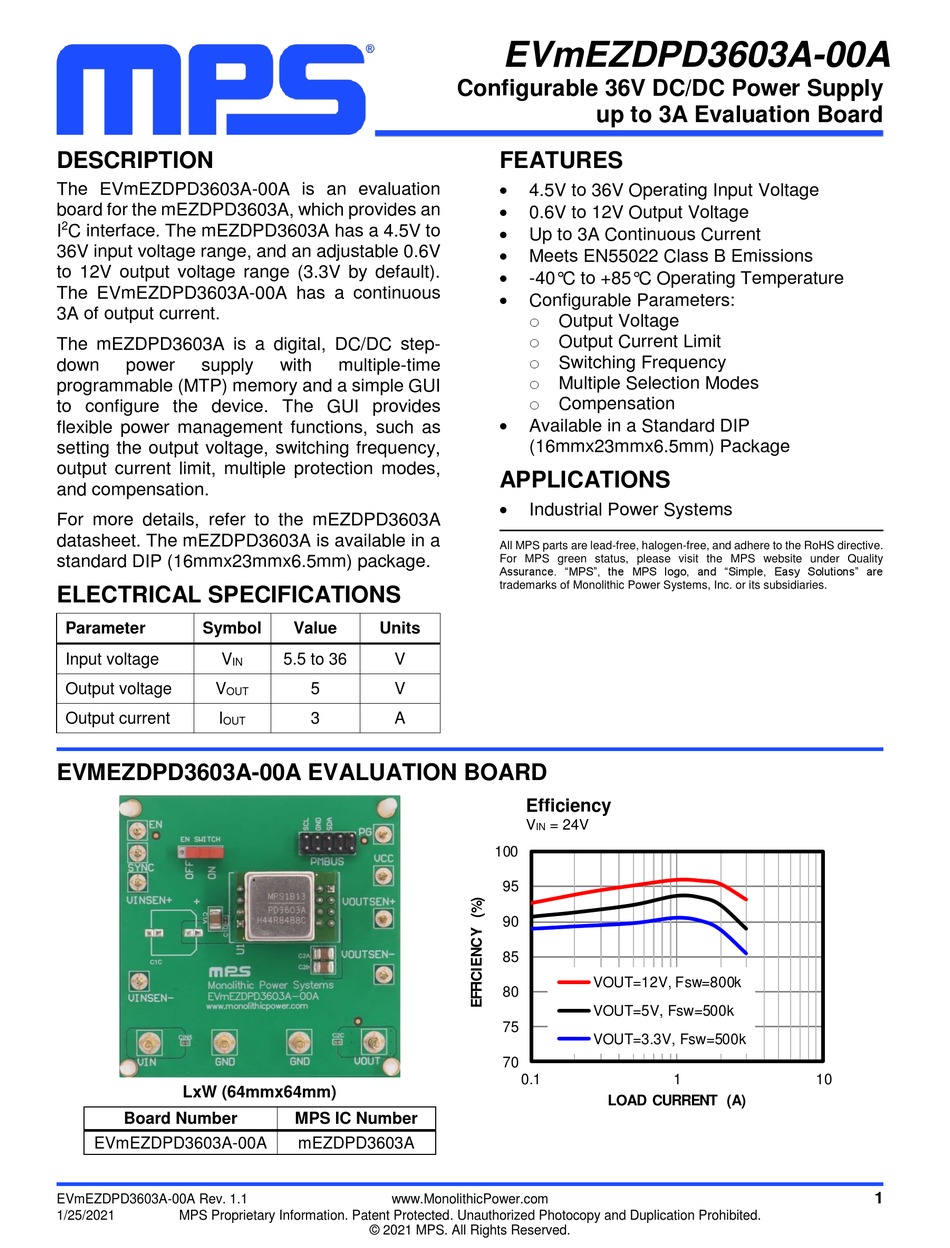

MPS EVmEZDPD3603A-00A Quick Start Manual

DESCRIPTION
The EVmEZDPD3603A-00A is an evaluation
board for the mEZDPD3603A, which provides an
2
I C interface. The mEZDPD3603A has a 4.5V to
36V input voltage range, and an adjustable 0.6V
to 12V output voltage range (3.3V by default).
The EVmEZDPD3603A-00A has a continuous
3A of output current.
The mEZDPD3603A is a digital, DC/DC step-
down power supply
programmable (MTP) memory and a simple GUI
to configure the device. The GUI provides
flexible power management functions, such as
setting the output voltage, switching frequency,
output current limit, multiple protection modes,
and compensation.
For more details, refer to the mEZDPD3603A
datasheet. The mEZDPD3603A is available in a
standard DIP (16mmx23mmx6.5mm) package.
ELECTRICAL SPECIFICATIONS
Parameter Symbol
Input voltage V
IN
Output voltage V
OUT
Output current I
OUT

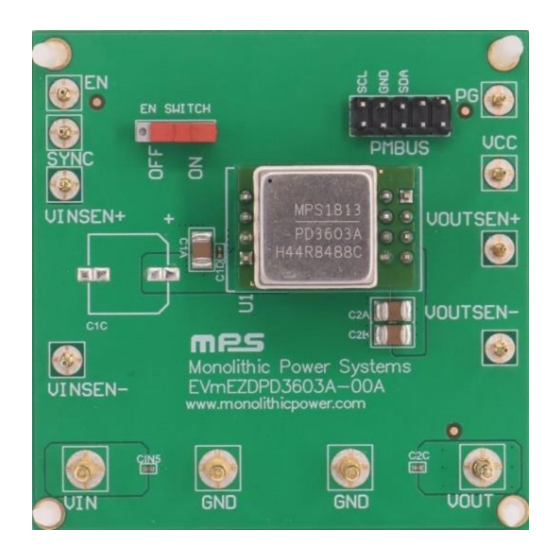

EVMEZDPD3603A-00A EVALUATION BOARD
LxW (64mmx64mm)
Board Number
EVmEZDPD3603A-00A
EVmEZDPD3603A-00A Rev. 1.1
1/25/2021 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
Configurable 36V DC/DC Power Supply
with multiple-time
Value Units
5.5 to 36 V
5 V
3 A
MPS IC Number
mEZDPD3603A
www.MonolithicPower.com
© 2021 MPS. All Rights Reserved.
EVmEZDPD3603A-00A
up to 3A Evaluation Board
FEATURES

4.5V to 36V Operating Input Voltage

0.6V to 12V Output Voltage

Up to 3A Continuous Current

Meets EN55022 Class B Emissions

-40° C to +85° C Operating Temperature

Configurable Parameters:
o Output Voltage
o Output Current Limit
o Switching Frequency
o Multiple Selection Modes
o Compensation

Available in a Standard DIP
(16mmx23mmx6.5mm) Package
APPLICATIONS

Industrial Power Systems
All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive.
For MPS green status, please visit the MPS website under Quality
Assurance. "MPS", the MPS logo, and "Simple, Easy Solutions" are
trademarks of Monolithic Power Systems, Inc. or its subsidiaries.
Efficiency
V = 24V
IN
100
95
90
85
VOUT=12V, Fsw=800k
80
VOUT=5V, Fsw=500k
75
VOUT=3.3V, Fsw=500k
70
0.1
LOAD CURRENT (A)
1 10
1
