MPS EV5416-R-00D Instruction Manual

DESCRIPTION

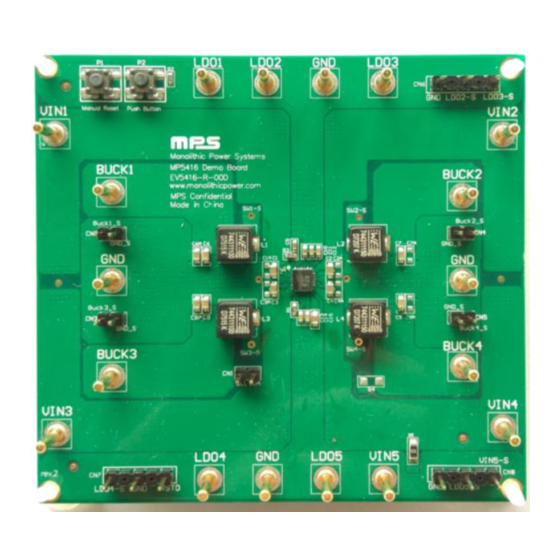

The EV5416-R-00D is an evaluation board for
MP5416, a complete power management
solution which integrates four high efficiency
step-down DC/DC converters, five low dropout
regulators and flexible logic interface.
COT control DC/DC converter provides fast
transient response.
switching frequency during CCM mode greatly
reduces external inductor and capacitor value.
Full protection features include UVLO, OCP
and thermal shutdown.
Output voltage is adjustable through I2C bus or
preset by OTP (One Time Programmable). The
power on/off sequence is also programmable
by OTP or can be controlled through I2C bus
online.
The MP5416 requires a minimal number
external components, and is available in space-
saving 28-pin QFN28 (4x4mm) package.
EV5416-R-00D Rev.1.0
1/11/2018 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
1.5MHz default fixed
www.MonolithicPower.com
© 2018 MPS. All Rights Reserved.
EV5416-R-00D
5V Power Management IC
FEATURES

High Efficiency Step-Down Converters

Buck1: 4.5A DC/DC Converter

Buck2: 2.5A DC/DC Converter

Buck3: 4A DC/DC Converter

Buck4: 2A DC/DC Converter

2.8V to 5.5V Operating Input Range

Adjustable Switching Frequency

Programmable Forced PWM/Auto
PFM/PWM Mode

Hiccup Over Current Protection

Low Dropout Regulators

One RTC Dedicate LDO

Four Low Noise LDOs

Two Separate Input Power Supplies

100mV Dropout at 300mA Load

System

I2C Bus and OTP

Power On/off Button

Power On Reset Output

Flexible Power On/off Sequence via OTP

Flexible DC/DC, LDO On/off via OTP

±4kV HBM and ±2kV CDM ESD Rating
for all pins
APPLICATIONS

Cable Modem, Set-Top-Box

TV

MID, Tablet

POS Machine

SSD

IP Camera
All MPS parts are lead-free, halogen free, and adhere to the RoHS directive. For
MPS green status, please visit MPS website under Quality Assurance. "MPS"
and "The Future of Analog IC Technology" are Registered Trademarks of
Monolithic Power Systems, Inc.
Evaluation Board
1
