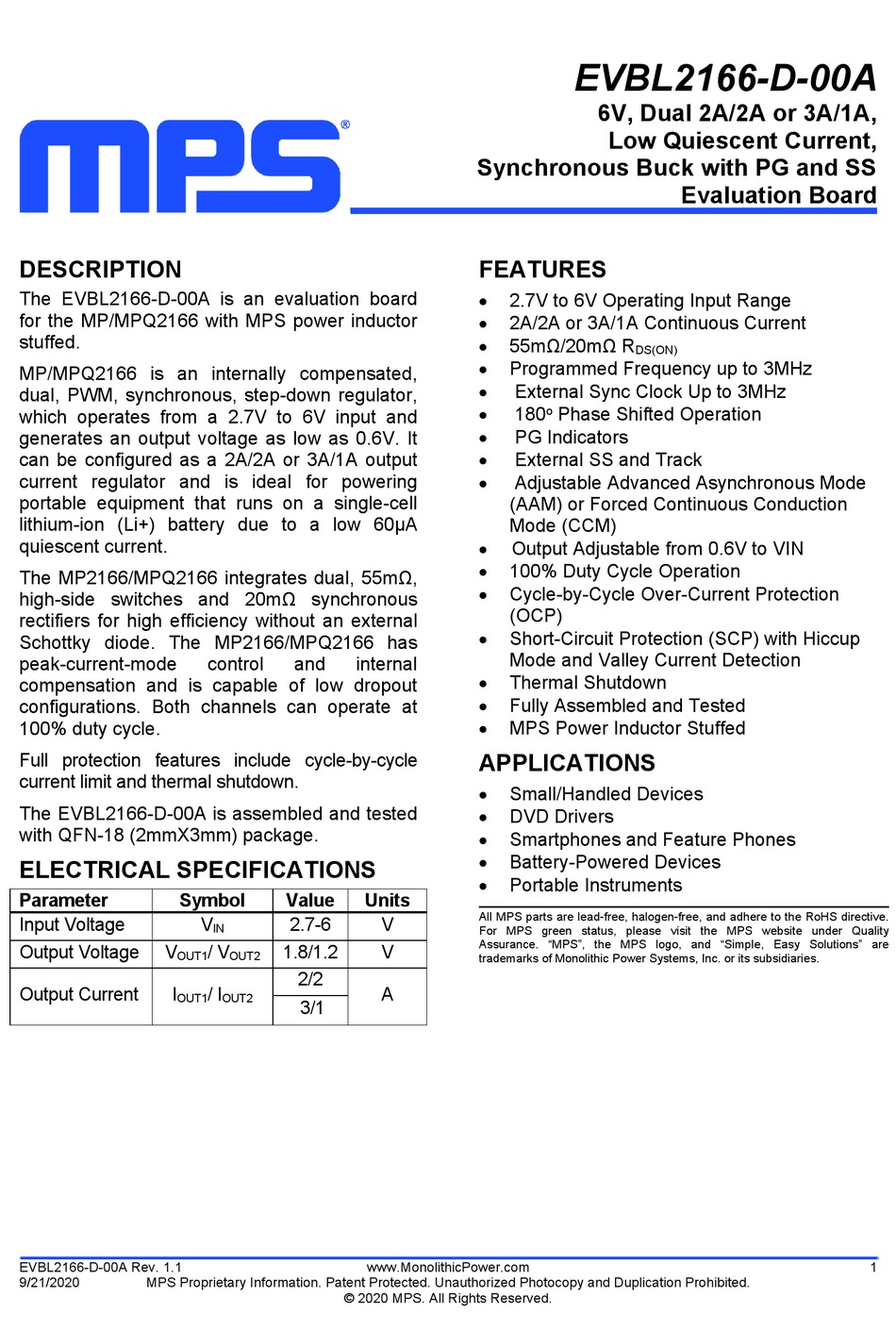

MPS EVBL2166-D-00A Quick Start Manual

DESCRIPTION

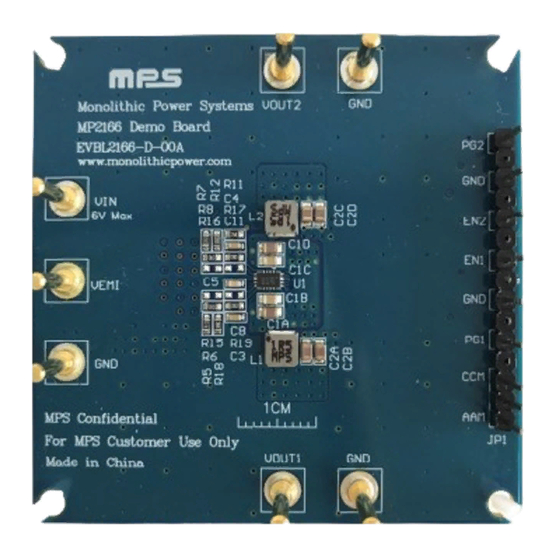

The EVBL2166-D-00A is an evaluation board
for the MP/MPQ2166 with MPS power inductor
stuffed.
MP/MPQ2166 is an internally compensated,
dual, PWM, synchronous, step-down regulator,
which operates from a 2.7V to 6V input and
generates an output voltage as low as 0.6V. It
can be configured as a 2A/2A or 3A/1A output
current regulator and is ideal for powering
portable equipment that runs on a single-cell
lithium-ion (Li+) battery due to a low 60µA
quiescent current.
The MP2166/MPQ2166 integrates dual, 55mΩ,
high-side switches and 20mΩ synchronous
rectifiers for high efficiency without an external
Schottky diode. The MP2166/MPQ2166 has
peak-current-mode
compensation and is capable of low dropout
configurations. Both channels can operate at
100% duty cycle.
Full protection features include cycle-by-cycle
current limit and thermal shutdown.
The EVBL2166-D-00A is assembled and tested
with QFN-18 (2mmX3mm) package.
ELECTRICAL SPECIFICATIONS
Parameter Symbol
Input Voltage
Output Voltage V
OUT1
Output Current I
OUT1
EVBL2166-D-00A Rev. 1.1
9/21/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
control and internal
Value Units
V 2.7-6
IN
/ V 1.8/1.2
OUT2
2/2
/ I
OUT2
3/1
www.MonolithicPower.com
© 2020 MPS. All Rights Reserved.
Synchronous Buck with PG and SS
FEATURES

2.7V to 6V Operating Input Range

2A/2A or 3A/1A Continuous Current

55mΩ/20mΩ R

Programmed Frequency up to 3MHz

External Sync Clock Up to 3MHz

180 o

PG Indicators

External SS and Track

Adjustable Advanced Asynchronous Mode
(AAM) or Forced Continuous Conduction
Mode (CCM)

Output Adjustable from 0.6V to VIN

100% Duty Cycle Operation

Cycle-by-Cycle Over-Current Protection
(OCP)

Short-Circuit Protection (SCP) with Hiccup
Mode and Valley Current Detection

Thermal Shutdown

Fully Assembled and Tested

MPS Power Inductor Stuffed
APPLICATIONS

Small/Handled Devices

DVD Drivers

Smartphones and Feature Phones

Battery-Powered Devices

Portable Instruments
All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive.
V
For MPS green status, please visit the MPS website under Quality
Assurance. "MPS", the MPS logo, and "Simple, Easy Solutions" are
V
trademarks of Monolithic Power Systems, Inc. or its subsidiaries.
A
EVBL2166-D-00A
6V, Dual 2A/2A or 3A/1A,
Low Quiescent Current,
Evaluation Board
DS(ON)
Phase Shifted Operation
