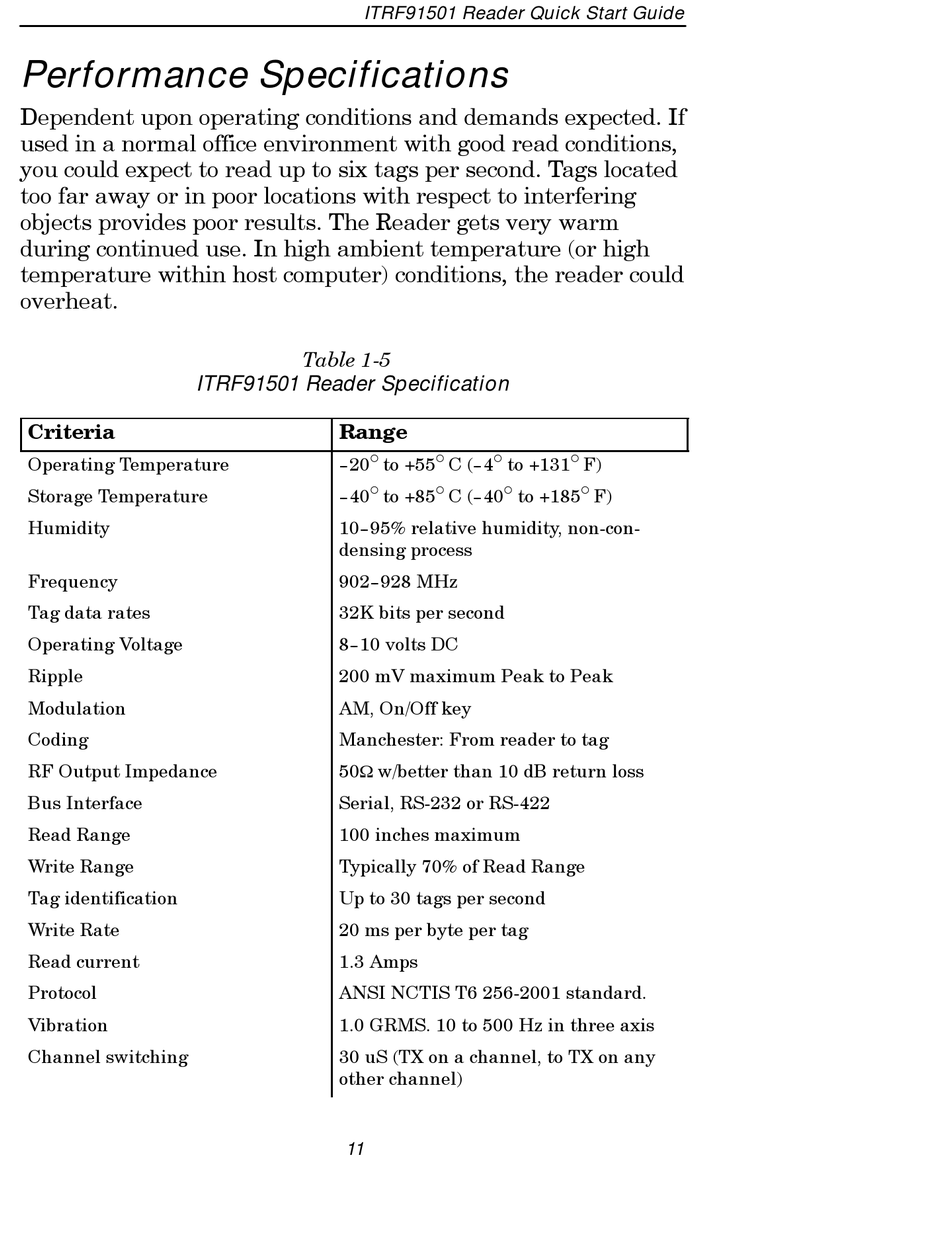

Performance Specifications
Dependent upon operating conditions and demands expected. If
used in a normal office environment with good read conditions,
you could expect to read up to six tags per second. Tags located
too far away or in poor locations with respect to interfering
objects provides poor results. The Reader gets very warm
during continued use. In high ambient temperature (or high
temperature within host computer) conditions, the reader could
overheat.
ITRF91501 Reader Specification
Criteria
Operating Temperature
Storage Temperature
Humidity
Frequency
Tag data rates
Operating Voltage
Ripple
Modulation
Coding
RF Output Impedance
Bus Interface
Read Range
Write Range
Tag identification
Write Rate
Read current
Protocol
Vibration
Channel switching
ITRF91501 Reader Quick Start Guide
Table 1-5
Range
--20
d
to +55
d
C (--4
d
to +131
--40
d
to +85
d
C (--40
d
to +185
10--95% relative humidity, non-con-
densing process
902--928 MHz
32K bits per second
8--10 volts DC
200 mV maximum Peak to Peak
AM, On/Off key
Manchester: From reader to tag
50Ω w/better than 10 dB return loss
Serial, RS-232 or RS-422
100 inches maximum
Typically 70% of Read Range
Up to 30 tags per second
20 ms per byte per tag
1.3 Amps
ANSI NCTIS T6 256-2001 standard.
1.0 GRMS. 10 to 500 Hz in three axis
30 uS (TX on a channel, to TX on any
other channel)
11
d
F)
d
F)
