Assembly instructions for PDG Eclipse

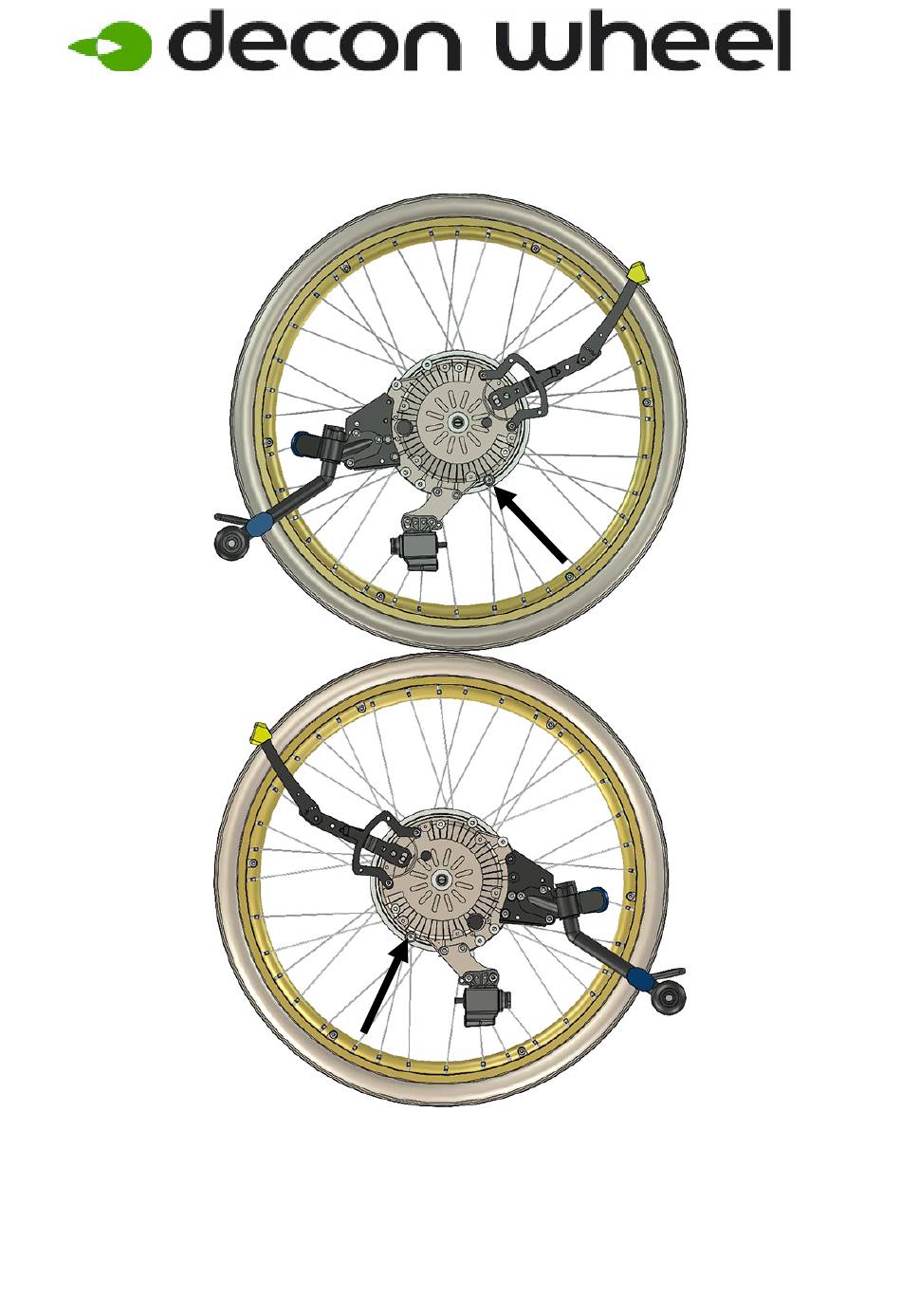

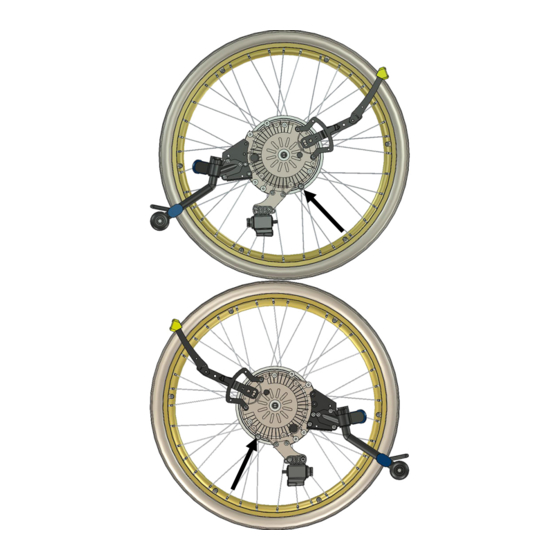

1. Remove wheel, sleeve and anti-tip devices on both sides.
2. Check the correct placement for the stop pin, and check that the battery box is
removed.
Note! Remember that it must be Heavy Duty on the eDrive units, and it
have a maximum user weight of 150 kg, do not over load this weight,
even if the wheelchair have a user weight of 270 kg.
MED3136
2020-04-24
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel MED3136
Summary of Contents for Decon wheel MED3136
- Page 1 Assembly instructions for PDG Eclipse MED3136 1. Remove wheel, sleeve and anti-tip devices on both sides. 2. Check the correct placement for the stop pin, and check that the battery box is removed. Note! Remember that it must be Heavy Duty on the eDrive units, and it have a maximum user weight of 150 kg, do not over load this weight, even if the wheelchair have a user weight of 270 kg.
- Page 2 Do not forget the spacer tube inside the frame. 3. Assembly the plate (right side) according to pictures. Parts pair mounting set for one side: Item No. Part Number Description MED2000B Bracket 405241 Nordlock Washer M18 HW084 Sleeve XSM18M Nut M18 x1 100 400 073 Spacer 100 400 072...
- Page 3 Assembly of the joystick 4. Assembly the joystick according to the picture above. The parts you need for assemble the joystick Item No. Part Number Description MED1368 Joystick Bracket Original screw Original screw Assembly of the attendant control Note! You need the extended 70 cm cable on the battery bag with part number: X0C-88147-A0 if you use the attendant control.
-
Page 4: Brake Adjustment
Brake adjustment 5. Brake adjustment needed, see picture above. Parts for one side Item No. Part Number Description XSM6X45 Screw M6 x 45 XSM6X30 Screw M6 x 30 XSM6ML Lock Nut M6 100 400 044 Spacer 2020-04-24... -
Page 5: Battery Placement
Battery Placement 6. Assemble the back placed battery bag. See the picture above. Note! You need the extended 70 cm cable on the battery bag with part number: X0C-88147-A0 if you use the attendant control. This cable is not included in the Mounting set. 2020-04-24... - Page 6 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
