Final Steps - Intermec EasyCoder 3240 Instruction Sheet

4. Secure the parallel I/O card (Part No. 052713) to the optional I/O board port with
two Phillips screws. The components on the parallel I/O card must face toward the
interior of the printer.
5. Connect one end of the ribbon cable to the parallel I/O card.
Note: Both ends of the ribbon cable are keyed. Either end can be plugged into the
parallel I/O card or the main PCB.
6. Plug the parallel I/O cable (Part No. 053924) into J18 on the main PCB. Check that
all the cable connections (not shown) on the main PCB are secure.
7. Before closing the tower door, check all cable connections. All cables must be
carefully folded prior to securing the electronics door. Ensure that the keypad cable
is folded away from the encoder wheels of the TTR assembly. Close the tower door
and secure it with three Phillips screws.
8. Test that the printer recognizes the parallel I/O card by printing a hardware
configuration test label. For help, see the 4400 User's Manual (Part No. 058607).
The following message should appear on the configuration test label:
I/O Option Card: Centronix

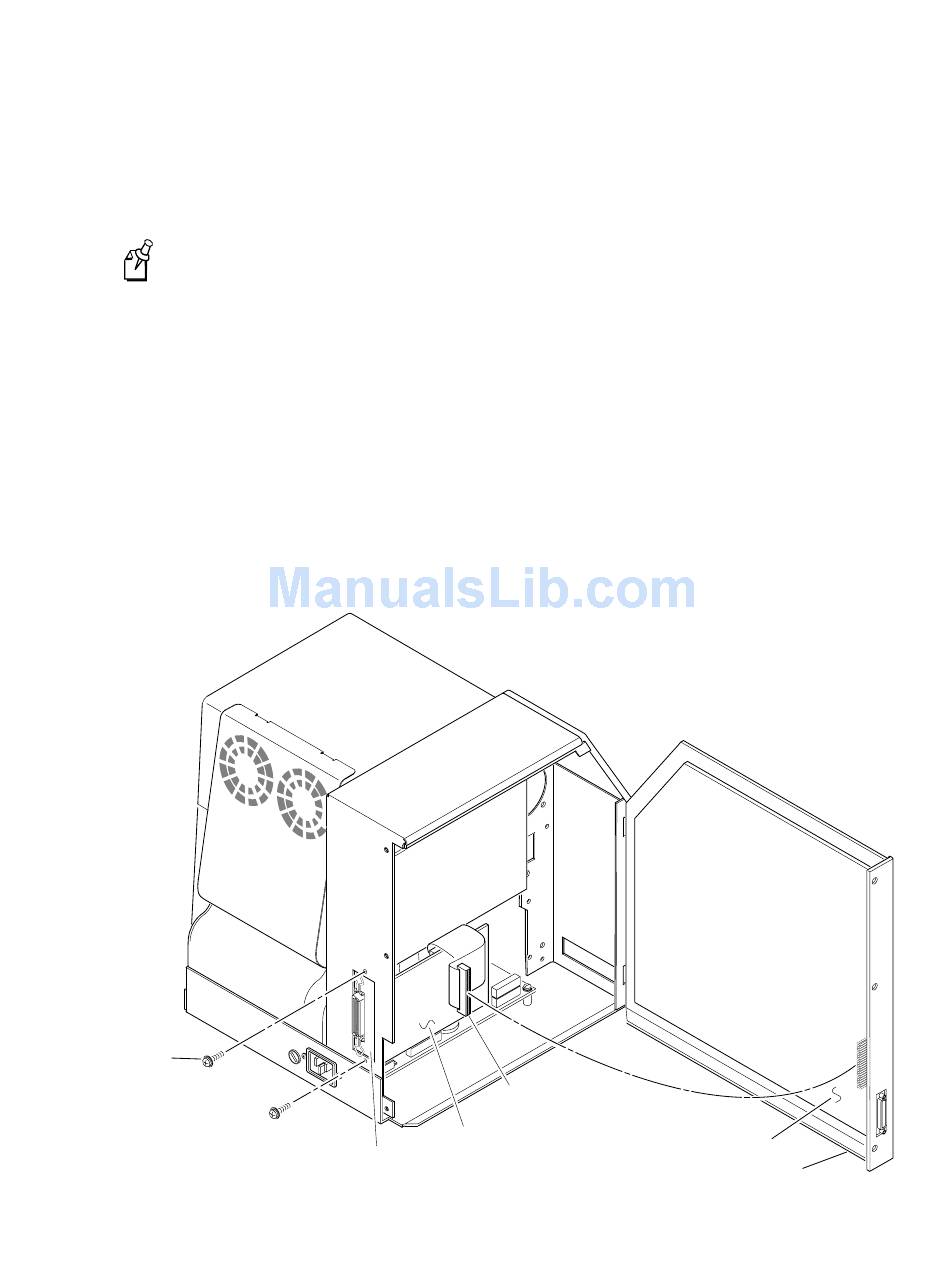

Phillips screws
(2 places)
Parallel I/O cable
Parallel I/O card
Optional I/O
board port
J 1
8
Main PCB
Tower door
3XXXI002.eps
