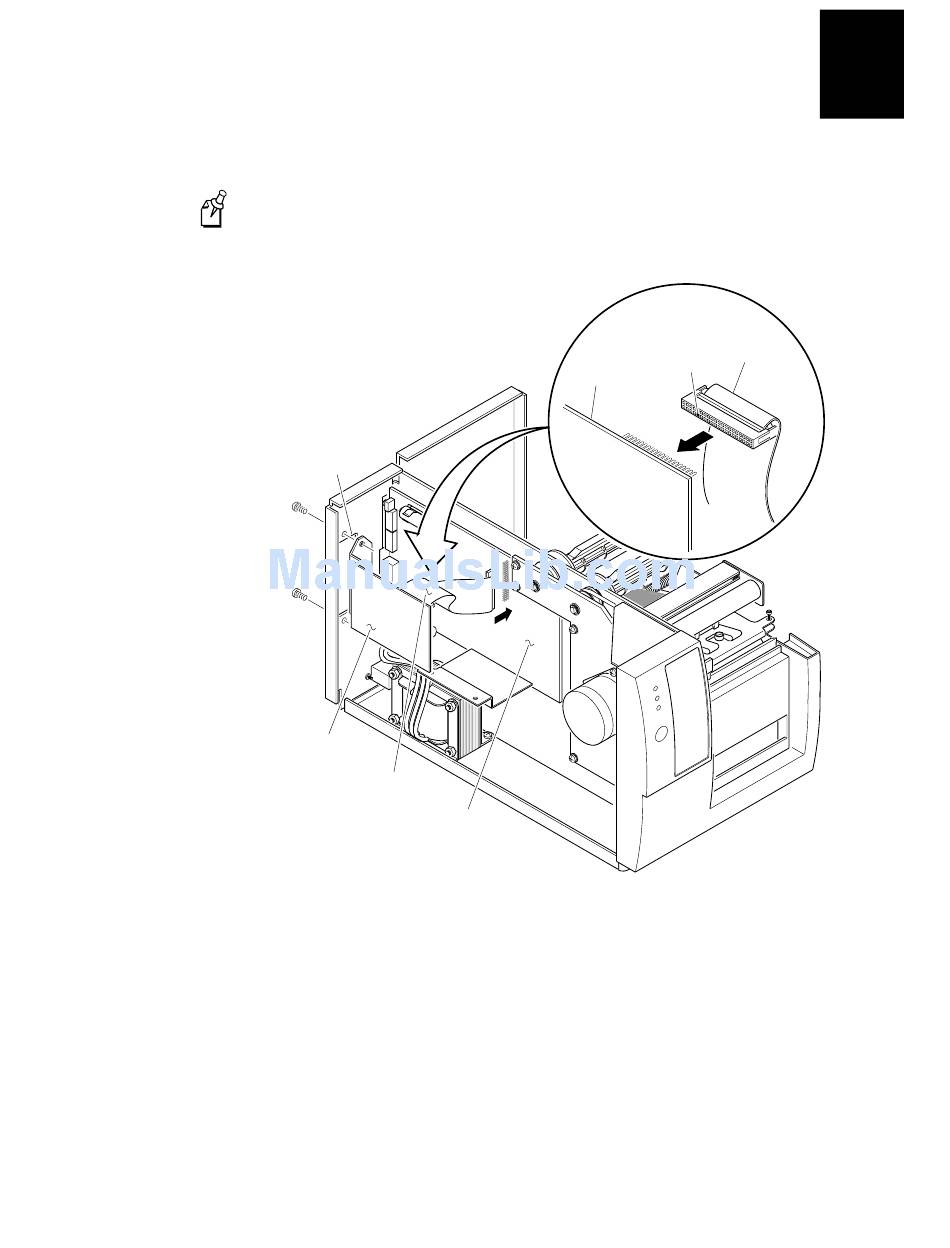

4. Connect one end of the ribbon cable to the parallel I/O card.
Note: Both ends of the ribbon cable are keyed. Either end can be plugged into the
parallel I/O card or the main PCB.
Optional I/O
board port
Parallel I/O
card
Ribbon
cable
Main PCB
5. With the component side of the parallel I/O card facing the interior of the printer,
secure the parallel I/O card to the optional I/O board port with the two port cover
screws.
Parallel I/O
card
J 8
3XXXI008.eps
Ribbon
cable
Key
