Caution
Static electricity can damage electronic components as you handle them. Static-
sensitive electronic components are packaged in static protective bags. Before
opening the bag, touch it to the metal base of the printer to reduce static electricity.
Touch the metal base of the printer to reduce static electricity before installing the
parallel I/O card in the printer.
1. Turn off the printer power and remove the power cord.
2. Open the tower door by removing the three Phillips screws at the rear of the printer
(see illustration).
3. Remove and discard the port cover from the optional I/O board port. Retain the two
screws.
AC power
Phillips screw
cord
(3 places)
Phillips
screws
Tower door
Port
cover
Optional I/O
board port

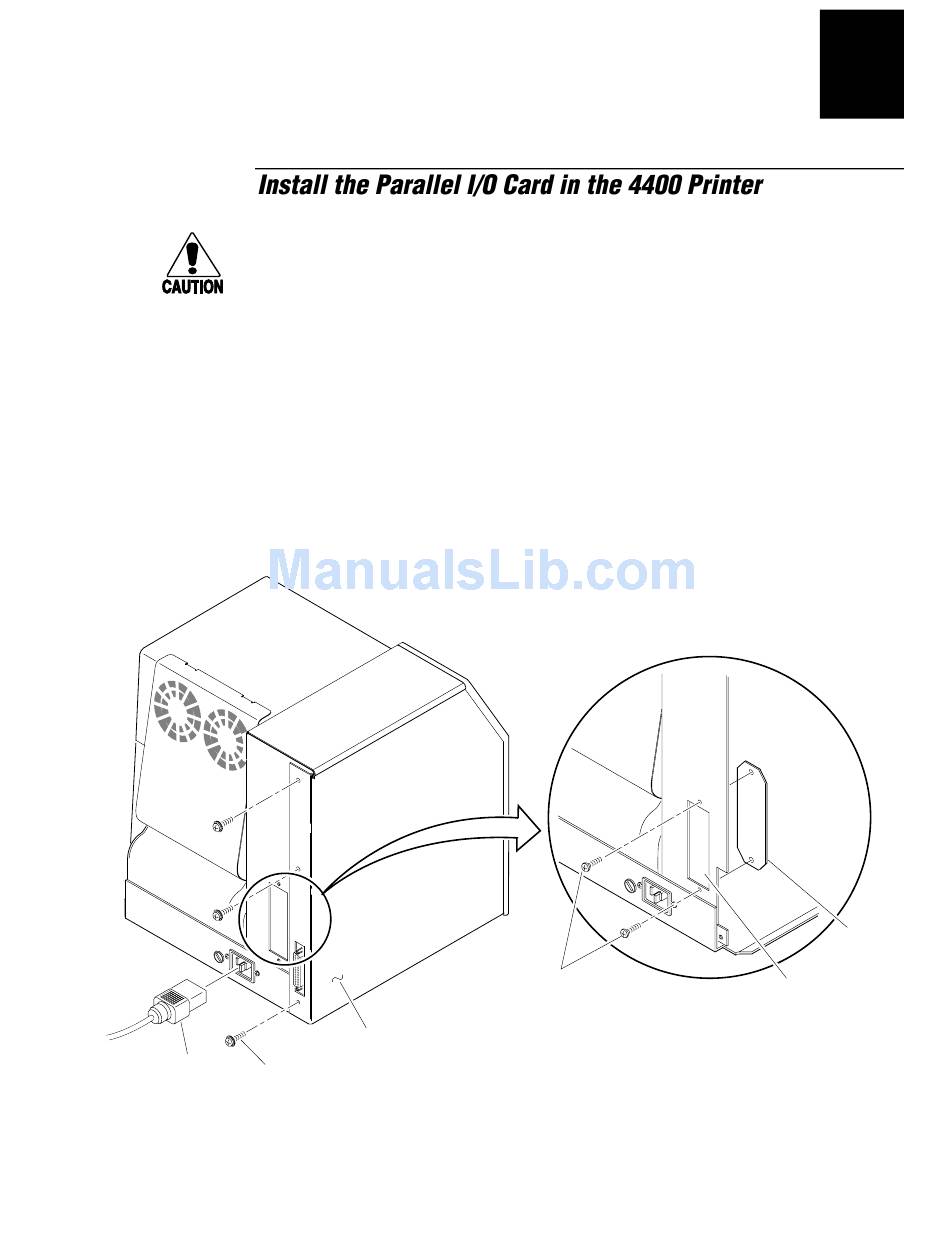

3XXXI001.eps
