BWT TFPPKIT Installation And Operating Instructions

Taste Fresh Protection Plus Drinking Water Filter System
Installation and Operating Instructions
Model: TFPPKIT
The BWT Tastefresh Protection Plus Filtration Kit combines a
Resin cartridge with a Carbon Block cartridge in duplex white
housings. The Resin cartridge reduces hardness minerals. The
Resin cartridge should be replaced every 4-6 months
depending on the quality and hardness of the incoming water
supply. The Carbon Block cartridge reduces Bad Taste &
Odours, Chlorine, Pesticides (VOCs), Cryptosporidium, Bacteria,
Petroleum Solvents and Sediment down to 0.5 Micron.
The BWT Tastefresh Protection Plus system kit contains all
the necessary screws and fittings required for easy installation.
All parts are listed below:
•
Self Piercing Valve with red tube attached
•
1 x Duplex white cartridge housings
•
2 x disposable cartridges (Carbon Block & Resin)
•
Quarter turn Tap with blue tube attached
•
Tap fittings
•
1 x fixing duplex fixing bracket
•
6 x screws for attaching housings to fixing bracket
•
1 x roll of sealant tape
Assembly
•
Using the six chrome screws provided, attach the white
housings to the white fixing bracket.
•
Using sealant tape to form a watertight seal, attach the straight
connector into the inlet and outlet of the housing.
Installation
•
Fit to cold water lines only.
•
Turn off water supply and drain the water from the system by
leaving a tap open.
•
Using a 13 mm ( 1 ⁄ ") bit, drill a hole into the sink top or work
2
surface to accommodate the tap (rubber washers are
provided to prevent damage to the surfaces). Assemble as
Fig 1.
shown in
•

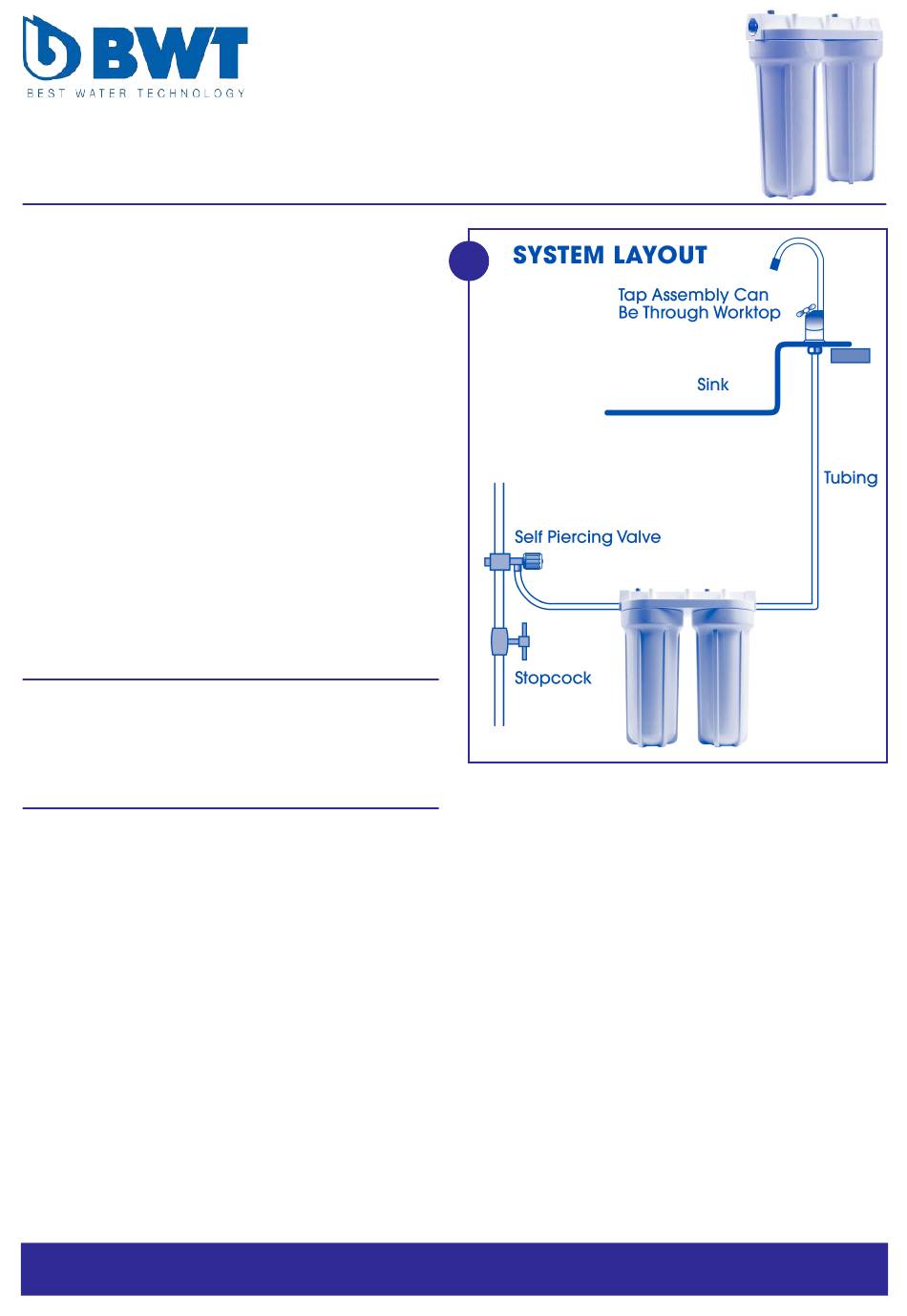

Identify the cold-water feed and attach the self-piercing saddle
valve as shown in Fig 2.
•
Locate the bracketed housings so that the flexible tube from
the self-piercing valve reaches the inlet of the left hand housing,
and the blue tube from the tap reaches the outlet of the right
hand housing.
•
To facilitate the easy changing of cartridges, sufficient room
should be left underneath the cartridge housings for their
removal (30mm minimum).
•
Attach the fixing bracket to a firm surface.
•
Attach the red tube into the inlet and the blue tube into the
outlet of the cartridge housings by firmly pushing the tube into
the white adapters.
Customer Help Line: 01494 838 100
Monday to Friday 08.30 – 17.00 UK Only.
1
•
Unscrew each of the bowls in turn, remove packing from
cartridges and place the cartridges into the bowls.
Please insure that the resin cartridge is situated in the left hand
housing with the red tube attached). Tighten the bowls. Check
that the 'O' ring washer is correctly seated inside rim of the
cartridge housing. Cartridge changes will be easier if the
'O' ring is lubricated with Silicon grease.
•
On completion of installation, turn water supply on, press
the red buttons on the top of the housings to release any
trapped air and check for leaks.
•
The maximum working pressure 5 BAR.
