BWT TFPKIT Installation And Operating Instructions

Taste Fresh Protection Drinking Water System
Installation and Operating Instructions
Model: TFPKIT
Speci ications:
Specifications:
Pressure Range: 30 – 72 psi (2.1 – 5 bar)
30 - 72 psi (2.1 - 5 bar)
Temperature Range: 40 – 100°F (4.4 – 37.7°C)
Rated Service Flow: 1.9 Lpm
Filter Capacity: 1893 L
Parts Included:

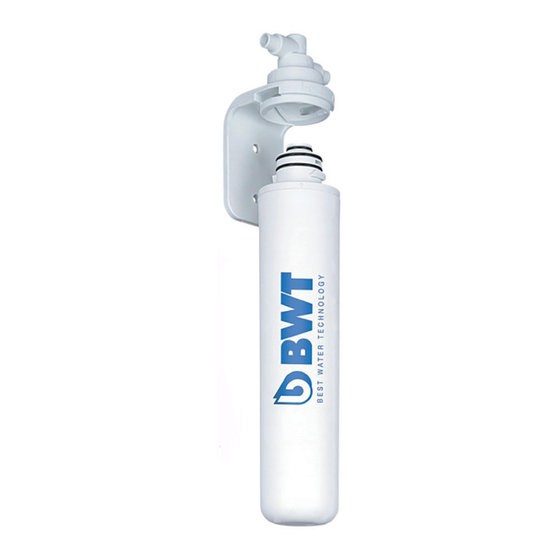

• Filter head with built-in mounting bracket, and
integral push-fits
• 1000R filter cartridge
• Screws for mounting bracket
• Saddle tapping valve with tube attached
• Drinking water tap
• 6.35 mm (1/4") plastic tubing
Tools required:
• Phillips Screwdriver
• Towel
• Drill
• Tape Measure
Optional Materials:
• 6.3mm & 12.7 mm (1/4" & 1/2") Drill Bit
mm
• Cone-shaped grinding wheel
Precautions:
Do not use with water that is microbiologically
WARNING:
unsafe or of unknown quality without adequate
disinfection before or after the system. Systems
certified for cyst reduction may be used on
disinfected waters that may contain filterable cysts.
CAUTION: This filter must be protected from freezing, which
can cause cracking of the filter and water leakage.
CAUTION: Because of the product's limited service life and to
prevent costly repairs or possible water damage,
we strongly recommend that the head of the filter
be replaced every ten years. If the head of your
filter has been in use for longer than this period, it
should be replaced immediately. Date the top of
any new head to indicate the next recommended
replacement date.
CAUTION: Turn off water supply to head without cartridge if it
must be left unattended for an extended period of time.
• File or Sandpaper
• Pencil
• 3.2 mm (1/8") Drill Bit
• Adjustable Wrench
Customer Help Line:
Monday to Friday 08.30 - 17.00
• For cold water use only.
• Make certain that installation complies with all local
bylaws and regulations.
• The contaminants or other substances removed or
reduced by the selected cartridge are not necessarily in
your water. Ask your local water supplier for a copy of
their water analysis.
• After prolonged periods of non-use (such as during a
holiday) it is recommended that the system be flushed
thoroughly. Let water run for 2-3 minutes before using.
• The filter cartridge used with this system has a limited
service life. Changes in taste, odour colour; and/or
flow of the water being filtered indicate that the
cartridge should be replaced.
Installations:
• For standard installation on 15 mm copper, steel, brass or PVC
cold water pipe.
• Please read all instructions and precautions before installing and
using your under-sink drinking water system.
• Numbered diagrams correspond with numbered steps.
1. Selecting the Tap Location
NOTE: The drinking water tap should be positioned with function,
convenience and appearance in mind. An adequate flat area is
required to allow tap base to rest securely. The tap fits through a
12 mm hole.
CAUTION: Do not attempt to drill through an all-porcelain sink.
If you have an all-porcelain sink, drill through counter top next
to sink. The following instructions apply to porcelain-coated cast
iron and stainless steel sinks only. Consult a professional plumber
about installation on an all-porcelain sink.
(Continued overleaf)
01494 838100
01494 838100
1
